Bath Fan Project Packs

Broan® J-Can Housing w/ Radiation Damper w/ Hanger Bars. (Use w/ Models 110RDF, 80RDF, HD50RDF

Convenient options for today's contractors and builders. The RDH radiation damper housing packs make multi-unit installation more convenient. With the separation of the housing and finish packs, contractors can choose appearance once all the construction is complete.


Model:

RDH

Features

  • Galvanized steel construction
  • Key-holed mounting brackets span are adjustable
  • Built-in damper helps prevent back drafts
  • Stainless steel closure springs
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Plug-in permanently lubricated motor never requires oiling
  • Housing and finish packs are sold separately

Suggested Installation Accessories

Broan-NuTone® Wall Vent Kit,  3" or 4" Round Duct

Broan-NuTone® Wall Vent Kit, 3" or 4" Round Duct

Model:

WVK2A

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Model:

RVK1A

Flex Duct, 4-Inch, Insulated (25 ft.)

Flex Duct, 4-Inch, Insulated (25 ft.)

Model:

DT4W

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Model:

82W

  • Specs
  • Downloads

print

Color Finish
Duct Size 4
ENERGY STAR® certified No
Grille Length 9.5
Grille Width 11.625

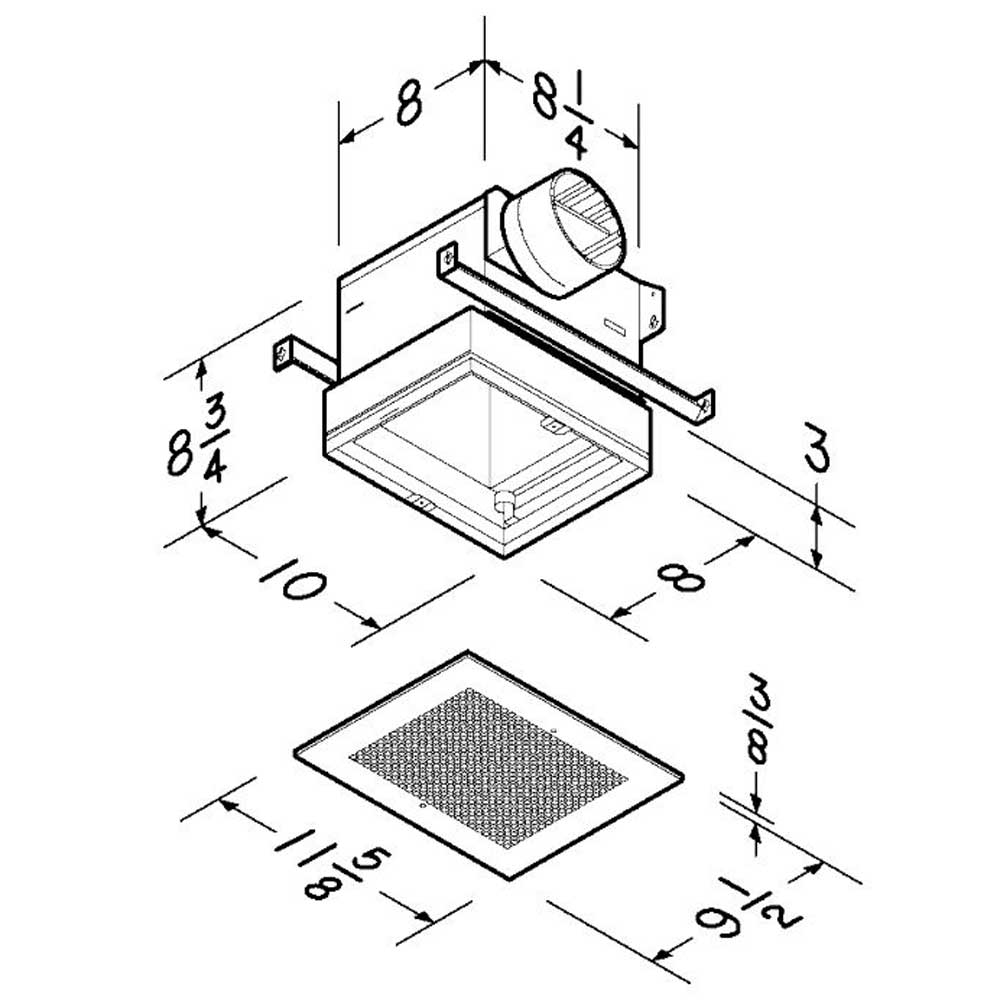

Housing Dimensions 8-1/4" x 8" x 8-3/4"
UL Listed Yes
Grille Finish White
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation No
Night Light No
Radiation Damper Available Yes
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit No
Heater Wattage 0
Voltage 120
Can Be Used To Comply With Title 24 No
Minimum Construction Space Required 2" x 10"
Manufacturer Warranty 1 Year
