ULTRA GREEN™ Series
ULTRA GREEN ZB Series 80 CFM Multi-Speed Ceiling Bathroom Exhaust Fan with Motion Sensing, ENERGY STAR®
The Broan® ZB80M ULTRA GREEN™ 80 CFM Motion Sensing Exhaust Bath Fan, ENERGY STAR® delivers everything you wished for in a bath fan - premium ventilation to help reduce airborne pollutants, ease of installation, energy efficiency, consistent power, extremely quiet operation and multi-speed capability. ULTRASense™, Motion Sensing Technology, offers a hands-free solution for maximum convenience. The fan will increase to maximum speed from the lower, continuous setting when motion is detected - which is ideal for family members who forget to turn the fan on - and will stay on the max setting for the user-set 5-minutes to 60-minutes period after no motion is detected, before falling back to the continuous setting.
Model:
ZB80M
Suggested Installation Accessories
Broan-NuTone® Steel Roof Cap for 6-Inch Round Duct with Backdraft Damper and Bird Screen, Black
Model:
634M
Broan-NuTone® Steel Wall Cap for 6" Round Duct with Backdraft Damper and Bird Screen, Black
Model:
843BL
Flex Duct 6-Inch Insulated (25 ft.)
Model:
DT6W
Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack
Model:
82W
- Specs
- Downloads
| CFM | 80 |
|---|---|
| Color Finish |
|
| Duct Size | 6 |
| ENERGY STAR® certified | Yes |
| Grille Length | 13.125 |
| Grille Width | 14 |

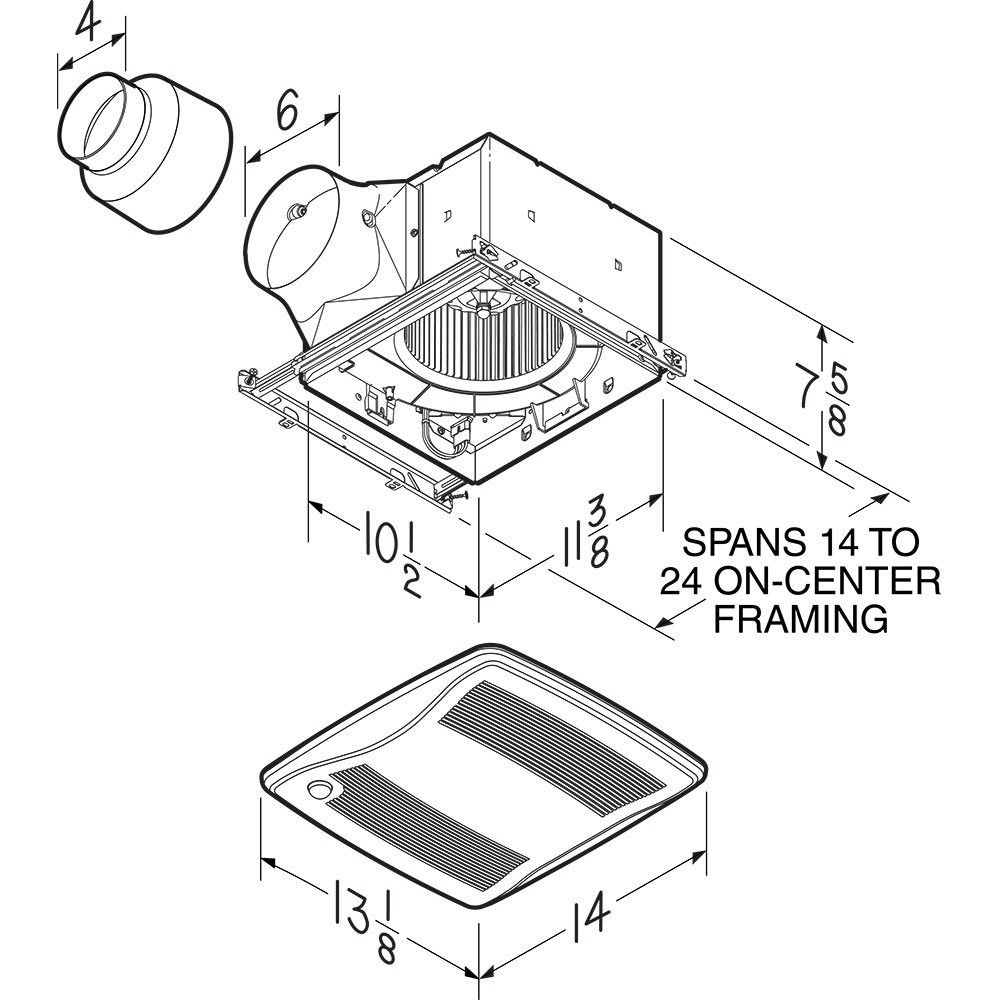

| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
| Sound Level (Sones) | 0.3 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | Yes |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 75 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | Yes |
| Minimum Construction Space Required | 2" x 8" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
