LoProfile™ Series

NuTone® 80 CFM Ventilation Fan with White Grille, ENERGY STAR®

The LP80 LoProfile fan is designed for installations where conventional ventilation simply won't fit. When a multi-family application requires it, the LoProfile fan is narrow enough to be installed in a wall between 2 x 4 studs. When plumbing or electrical obstructions are found behind the drywall in ceiling remodel applications. The LoProfile fan can still fit without having to move anything, and that means most any room with space constraints can have powerful, quiet, efficient ventilation.


Model:

LPN80

Features

  • 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • 1.0 Sones for Ultra quiet performance, you might not notice it's on
  • 4" oval or 3" round duct connection for installation flexibility, allows for ceiling or wall mounting
  • ENERGY STAR® Certified efficient operation for lower utility bills
  • UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only)
  • Powerful enough for rooms up to 75 sq. ft.

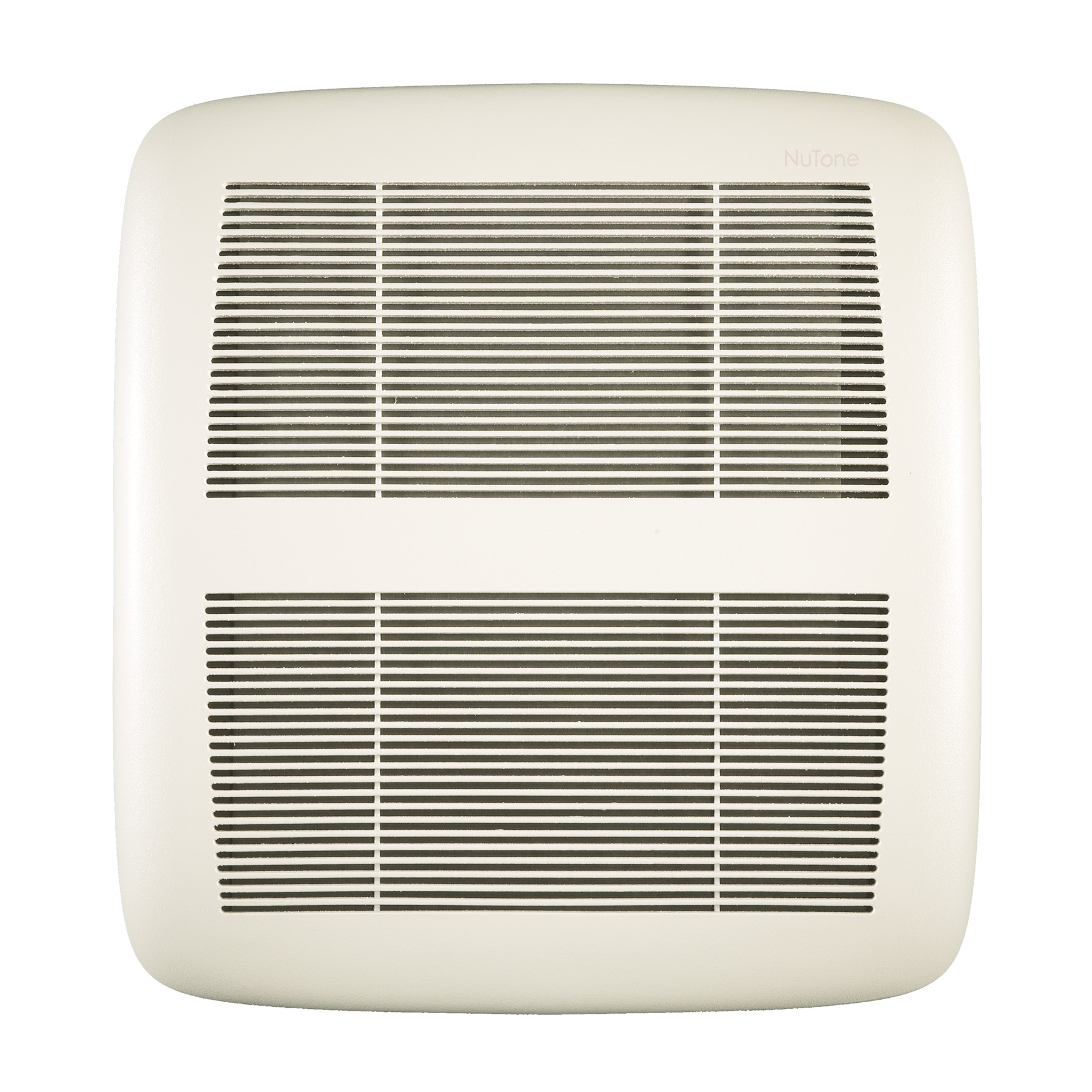

  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated Acmotor engineered fo rcontinuous operation

Suggested Installation Accessories

Broan-NuTone® Wall Vent Kit,  3" or 4" Round Duct

Broan-NuTone® Wall Vent Kit, 3" or 4" Round Duct

Model:

WVK2A

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Model:

RVK1A

Flex Duct, 4-Inch, Insulated (25 ft.)

Flex Duct, 4-Inch, Insulated (25 ft.)

Model:

DT4W

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White

Model:

82W

  • Specs
  • Downloads

print

CFM 80
Color Finish
Duct Size 4
ENERGY STAR® Certified Yes
Grille Length 13
Grille Width 14

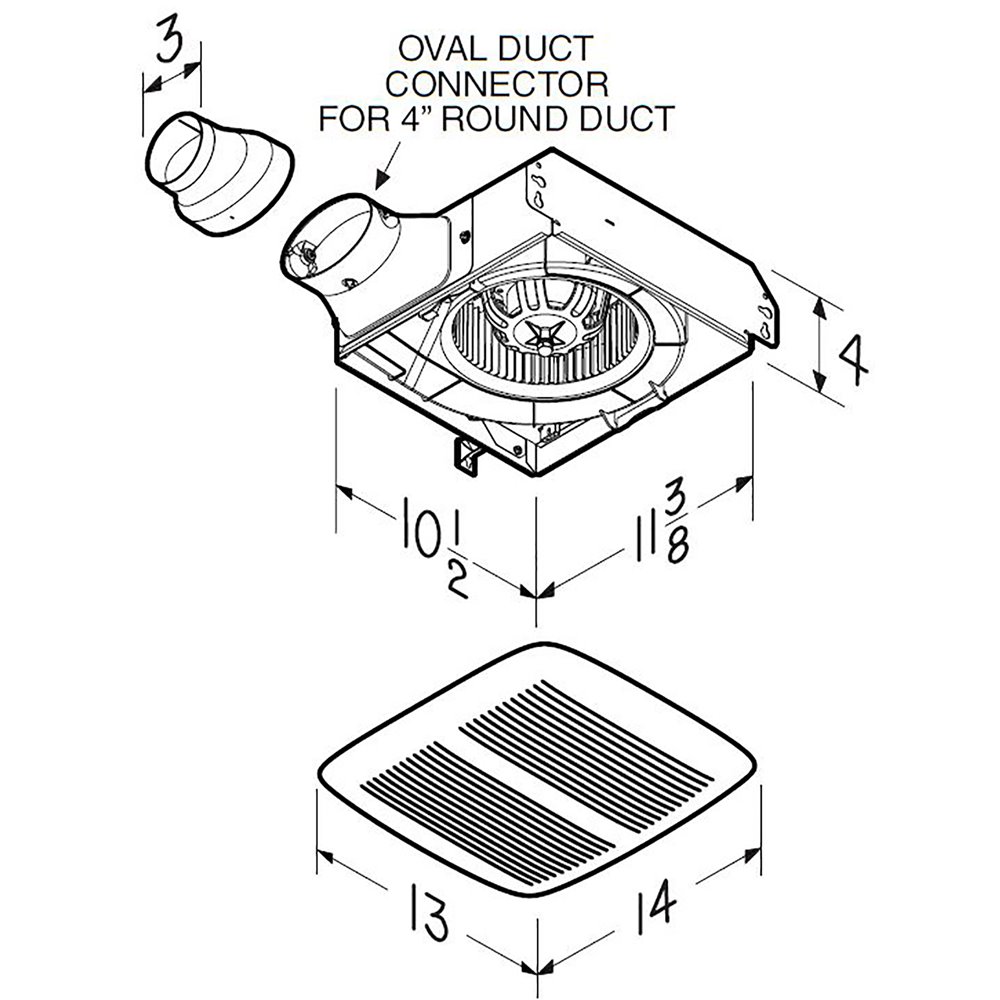

Housing Dimensions 10-1/2" x 11-3/8" x 4"
UL Listed Yes
Grille Finish White
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available Yes
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 75
Rated Amps 0.3
Voltage 120
Can Be Used To Comply With Title 24 Yes
Minimum Construction Space Required 2" x 4"
Manufacturer Warranty 1 Year
