LoProfile™ Project Packs

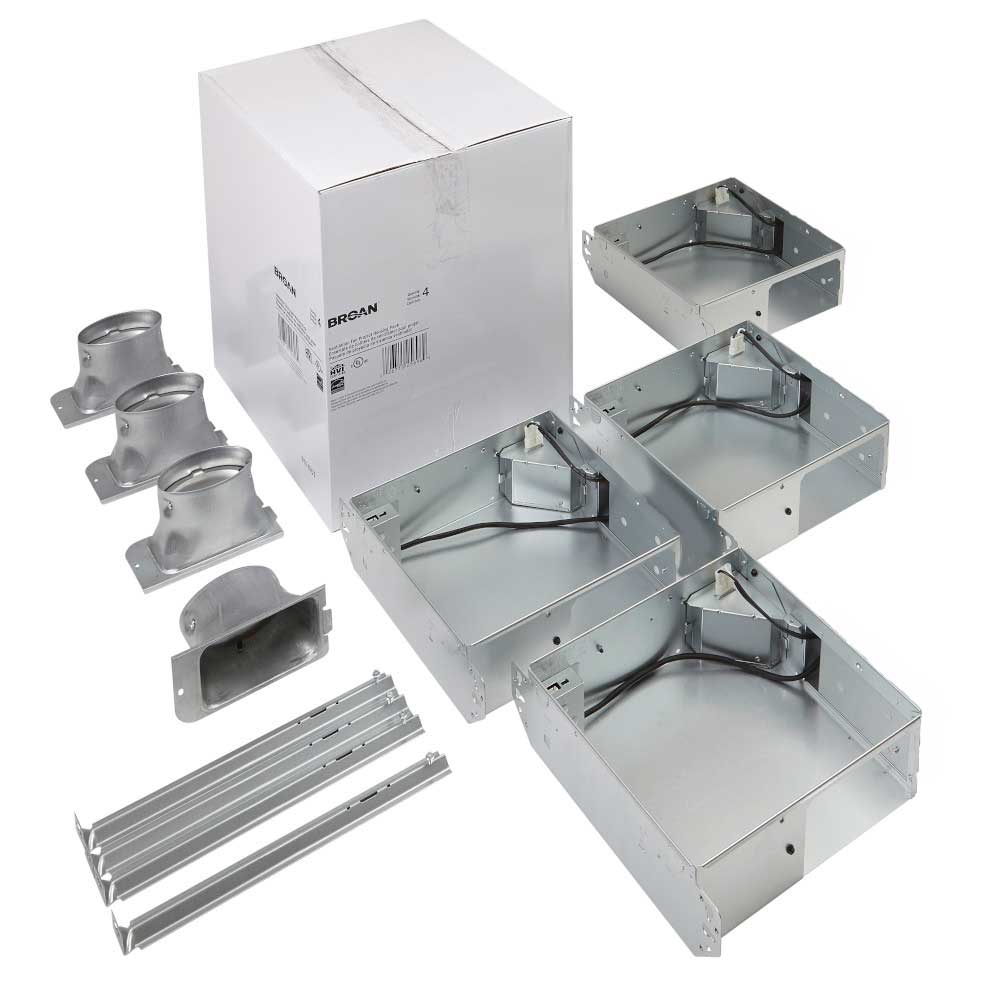

Broan® LoProfile™ 80 CFM Ventilation Fan Project Housing Pack, 1.0 Sones

The LoProfile housing packs are ideal for Builders and Contractors. Housing packs allow contractors to complete a room without having to worry about losing the grille and motor to the fan or damaging it during the construction. The innovations of the housing pack include foldable mounting ears, new damper and housing technology to improve building airtightness in all construction.


Model:

LP80H

Features

  • 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • 1.0 Sones for Ultra quiet performance, you might not notice it's on
  • Housing/Finish packs are sold in a package of four; includes fan housings with slide channels and mounting brackets
  • Housing Pack is used in building activities prior to hanging drywall
  • 4" oval or 3" round duct connection for installation flexibility
  • For use with Broan® LP80F and NuTone® LPN80F LoProfile fan finish packs to complete the installation
  • Can be used with RDF1 radiation damper
  • Ideal for multi-family applications
  • Fits in 2x4 ceiling or wall construction
  • UL Listed for use over tub/shower with GFCI circuit
  • Powerful enough for rooms up to 75 sq. ft.
  • Corrosion resistant galvanized steel housing stands up to moisture

Suggested Installation Accessories

Broan-NuTone® Wall Vent Kit,  3" or 4" Round Duct

Broan-NuTone® Wall Vent Kit, 3" or 4" Round Duct

Model:

WVK2A

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Model:

RVK1A

Flex Duct, 4-Inch, Insulated (25 ft.)

Flex Duct, 4-Inch, Insulated (25 ft.)

Model:

DT4W

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Model:

82W

  • Specs
  • Downloads

print

CFM 80
Color Finish
Duct Size 4
ENERGY STAR® certified Yes
Housing Dimensions 10-1/2" x 11-3/8" x 4"
UL Listed Yes
Grille Finish White
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available Yes
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 75
Rated Amps 0.3
Voltage 120
Can Be Used To Comply With Title 24 Yes
Minimum Construction Space Required 2" x 4"
Manufacturer Warranty 1 Year
High Efficiency Luminaire No
