NuTone® Roomside Series

Roomside Series Heavy Duty 80 CFM Ceiling Roomside Installation Bathroom Exhaust Fan

The NuTone® Roomside Series Heavy Duty 80 CFM Ceiling Exhaust Bath Fan with Metal Grille offers easy, room-side installation with no attic access required. The ceiling-mounted ventilation fan features foldable mounting ears and an EZ Duct connector for no-hassle installation. New duct-damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts from the rafters above. The fan exhausts air at 80 CFM and operates quietly at 2 sones, providing moisture management for rooms up to 75 sq. ft. A white metal grille provides an elegant transition from fixture to ceiling and keeps out debris.


Model:

ARN80HD

Features

  • 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • 2.0 Sones for Quiet performance , enough sound to know your fan is on
  • Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
  • EzDuct™ connector can be installed from the room side, with no attic access required
  • TrueSeal™ Damper technology reduces air leakage up to 50%
  • SnapFit Flange Kit offers flexible installation for new construction or retrofit upgrades
  • Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
  • UL listed for use over a bathtub or shower when connected to a GFCI-protected branch circuit
  • Powerful enough for rooms up to 75 sq. ft.
  • White metal grille coordinates with any interior decor and provides a pleasant transition from fixture to ceiling
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation

Suggested Installation Accessories

Broan-NuTone® Wall Vent Kit,  3" or 4" Round Duct

Broan-NuTone® Wall Vent Kit, 3" or 4" Round Duct

Model:

WVK2A

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Model:

RVK1A

Flex Duct, 4-Inch, Insulated (25 ft.)

Flex Duct, 4-Inch, Insulated (25 ft.)

Model:

DT4W

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Model:

82W

  • Specs
  • Downloads
  • Videos

print

CFM 80
Color Finish
Duct Size 4
ENERGY STAR® certified No
Grille Length 11
Grille Width 12

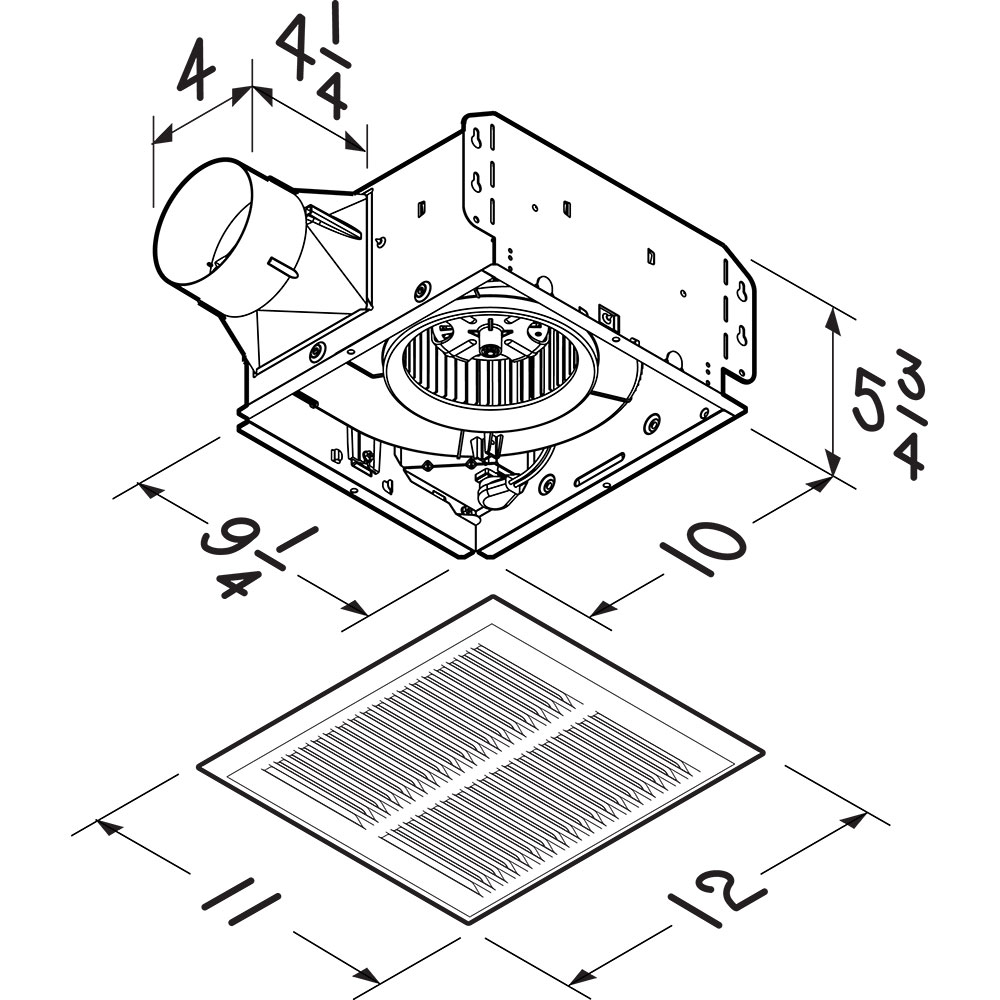

Housing Dimensions 9-1/4" x 10" x 5-3/4"
UL Listed Yes
Grille Finish White
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available No
Room Side Installation Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 75
Rated Amps 0.4
Voltage 120
Can Be Used To Comply With Title 24 No
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 1 Year
High Efficiency Luminaire No
NuTone Roomside Series Bathroom Ventilation Fan Installation Video
