NuTone® Roomside Series

NuTone® Roomside DC Series 110 CFM 0.9 Sones Humidity Sensing Ventilation Fan Light with CleanCover™

The NuTone® Roomside DC Series Ventilation fan combines everything you need into one powerfully efficient fan. It features a brushless DC electronically controlled digital motor that is 3X more efficient than standard AC powered ventilation. Say good-bye to unsightly standard grilles that catch dust and debris and can be difficult to clean. With the CleanCover grille, your fan cover stays cleaner for longer with fewer vent slots to clean and a low profile, streamline design that coordinates with any décor. This fan automatically turns on as humidity rises in the air, perfect for families on the go. Use the humidity sensor timing feature to set how long the fan will run before it automatically turns off. Perfect for retrofit, remodel and replacement, this fan features hassle-free installation from the room side, for spaces with no attic access. The SnapFit Flange Kit, EzDuct™ connector and FoldAway™ mounting ears make it flexible to almost any installation challenge, especially for rooms on the first floor or basement floor of the home. Each carton comes complete with a precise template for accurate housing opening ceiling cut. The SnapFit Flange Kit provides a self-trimming finish to cover a rough cut.


Model:

AERN110DCSL

Features

  • 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • 0.8 Sones for Ultra quiet performance, you might not notice it's on
  • Bright 3500K energy efficient LED lighting to help illuminate your room
  • Sensaire™ humidity sensing technology, senses humidity up to 4X faster than the competition

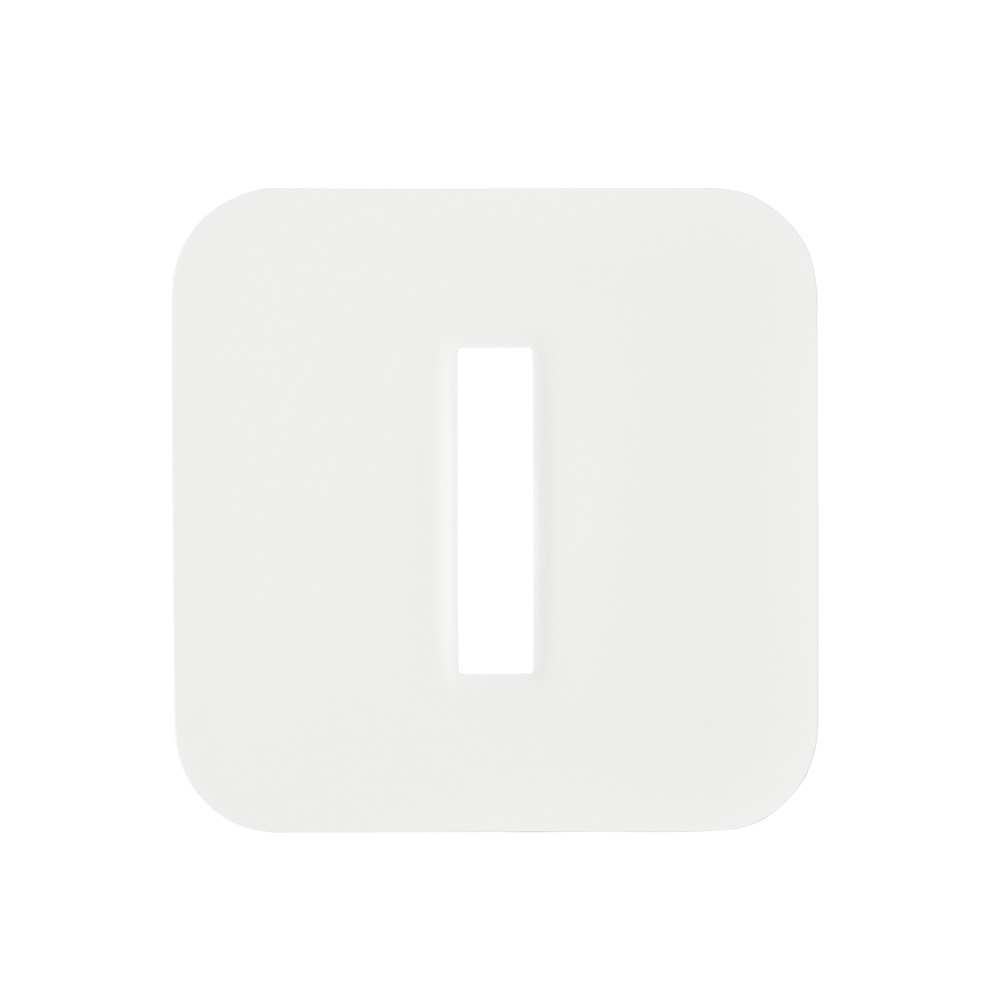

  • CleanCover grille stays cleaner longer with fewer vent slots to collect dust
  • Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
  • EzDuct™ connector can be installed from the room side, with no attic access required
  • TrueSeal™ Damper technology reduces air leakage up to 50%
  • Snapfit Flange Kit offers flexible installation for new construction or retrofit upgrades
  • Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
  • 30% More Airtight installed performance vs. standard ventilation fans
  • ENERGY STAR® certified
  • Title 24 compliant; UL listed for use in insulated ceiling (type I.C.) and HVI-2100 Certified for safety and performance and for use over bathtubs or showers when connected to GFCI-protected branch circuit (not included)
  • Powerful enough for rooms up to 100 sq. ft.
  • Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
Product Selected ENERGY STAR® Most Efficient 2020

Product Selected ENERGY STAR® Most Efficient 2020

Products that are recognized as the Most Efficient of ENERGY STAR in 2020 prevent greenhouse gas emissions by meeting rigorous energy efficiency performance levels set by the U.S. Environmental Protection Agency

See Product List

Suggested Installation Accessories

Broan-NuTone® Wall Vent Kit,  3" or 4" Round Duct

Broan-NuTone® Wall Vent Kit, 3" or 4" Round Duct

Model:

WVK2A

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Model:

RVK1A

Flex Duct, 4-Inch, Insulated (25 ft.)

Flex Duct, 4-Inch, Insulated (25 ft.)

Model:

DT4W

Broan-NuTone® Occupancy Sensor, White

Broan-NuTone® Occupancy Sensor, White

Model:

MS100W

  • Specs
  • Downloads
  • Videos

print

CFM 110
Color Finish
Duct Size 4
ENERGY STAR® Certified Yes
Grille Length 12.25
Grille Width 12.25

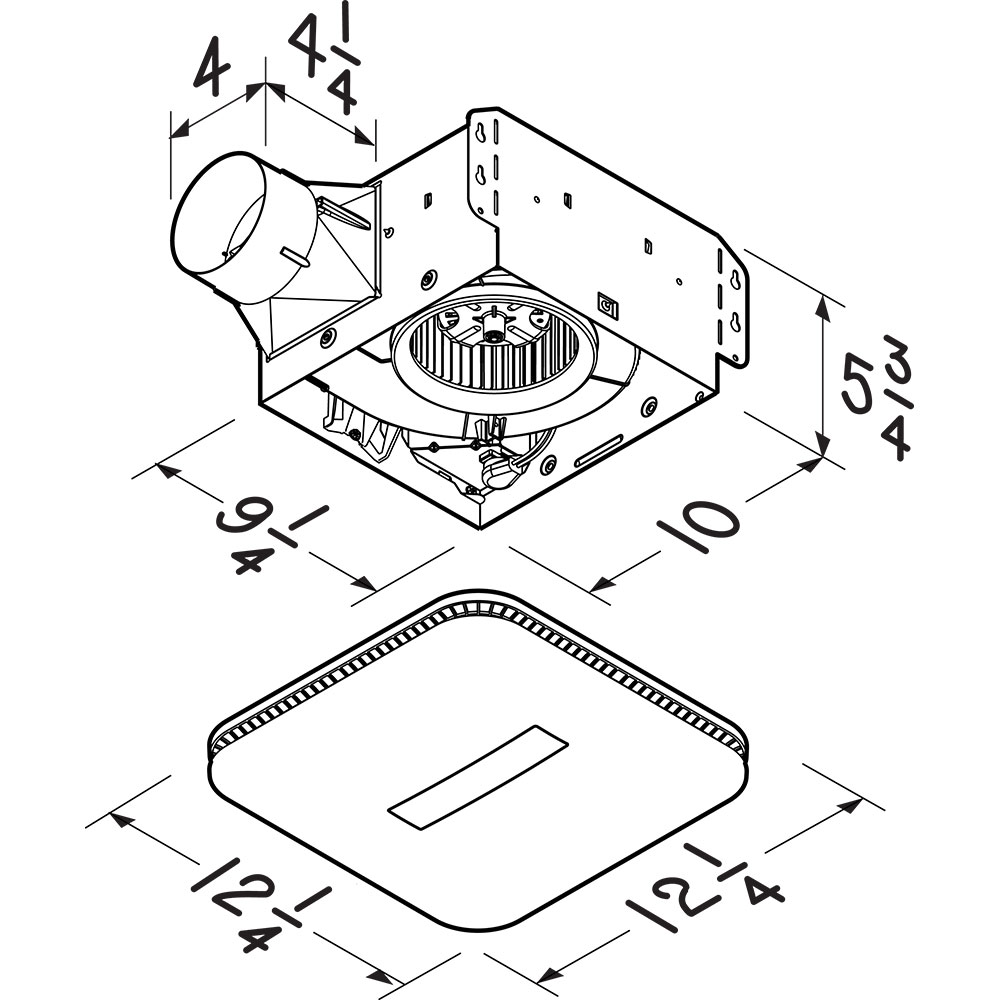

Housing Dimensions 9-1/4" x 10" x 5-3/4"
UL Listed Yes
Grille Finish White
Humidity Sensing Yes
Light Bulb Quantity 1
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available No
Room Side Installation Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 105
Rated Amps 0.4
Voltage 120
Can Be Used To Comply With Title 24 No
Bulb (Recommended Type) 11 Watt integrated LED module
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 3 Years
High Efficiency Luminaire No
