Economy Series

Broan® 70 CFM Ventilation Fan

Broan® Standard Economy Series fans are versatile, compact, and economical ventilation solutions. With a galvanized steel housing and double strength mounting flanges, the economy fan offers powerful ventilation, that helps ventilate air to prevent mold


Model:

771

Features

  • 70 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
  • 4.0 Audible Sones for privacy while using your bathroom
  • Compact housing for versatile installation
  • Quiet polymeric damper prevents backdrafts
  • Torsion springs grille mounting - no tools necessary
  • U.L listed for use over bathtubs and showers with connected to a GFCI protected branch
  • Powerful enough for rooms up to 65 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation
  • Specs
  • Downloads

print

CFM 70
Color Finish
Duct Size 3
ENERGY STAR® certified No
Grille Length 9
Grille Width 9.25

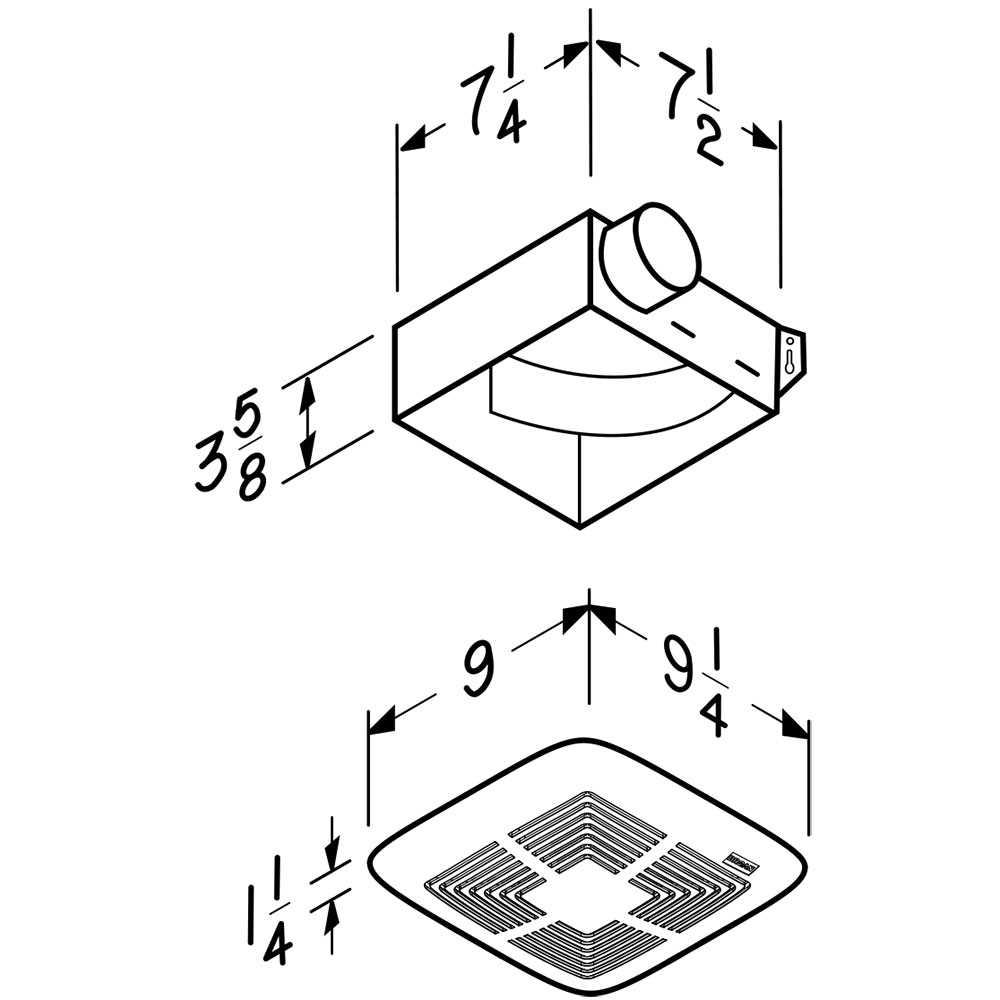

Housing Dimensions 7-1/4" x 7-1/2" x 3-5/8"
UL Listed Yes
Grille Finish White
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation No
Night Light No
Radiation Damper Available No
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 65
Rated Amps 1.5
Voltage 120
Can Be Used To Comply With Title 24 No
Minimum Construction Space Required 2" x 4"
Manufacturer Warranty 1 Year
High Efficiency Luminaire No
