Economy Series

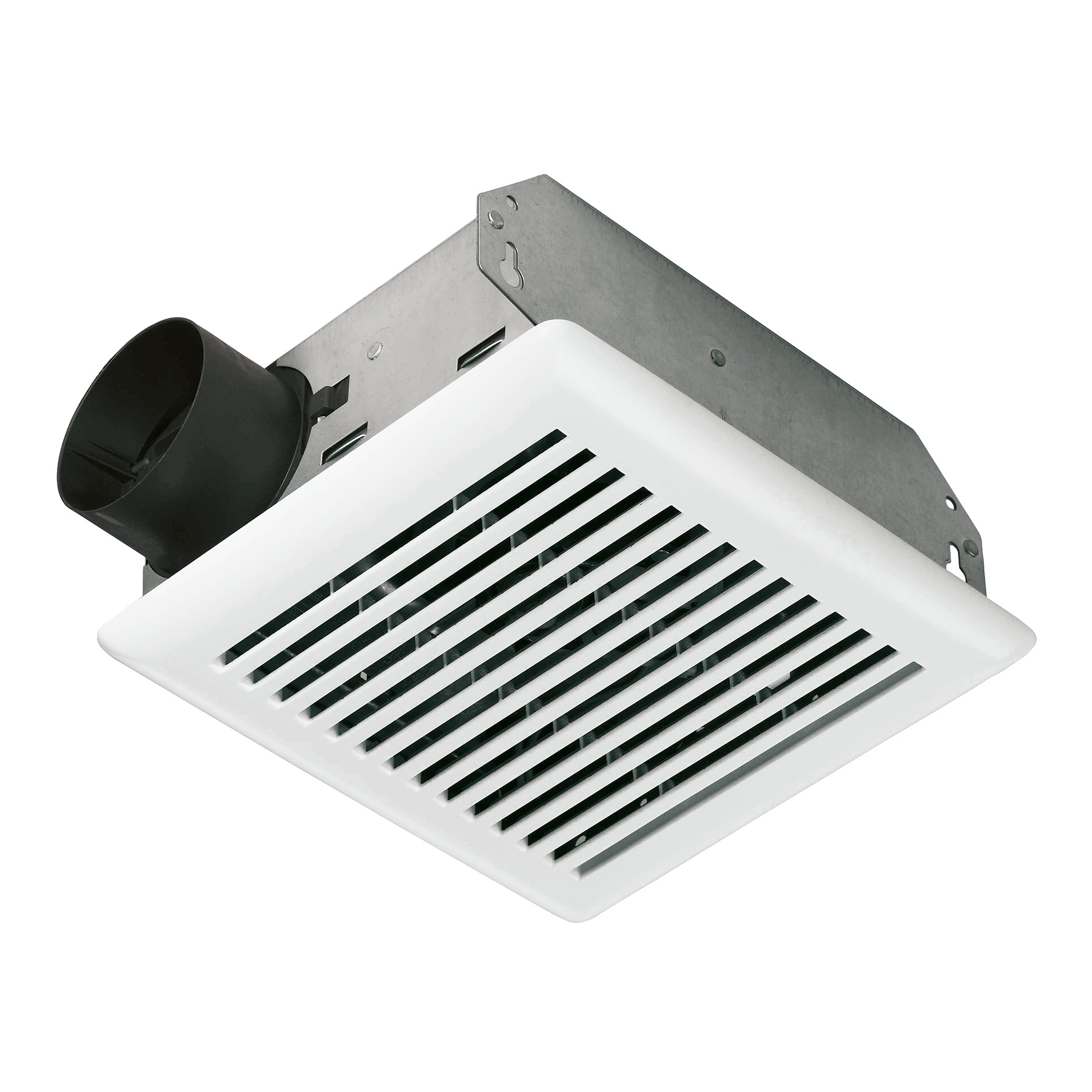

NuTone® 50 CFM Ventilation Fan

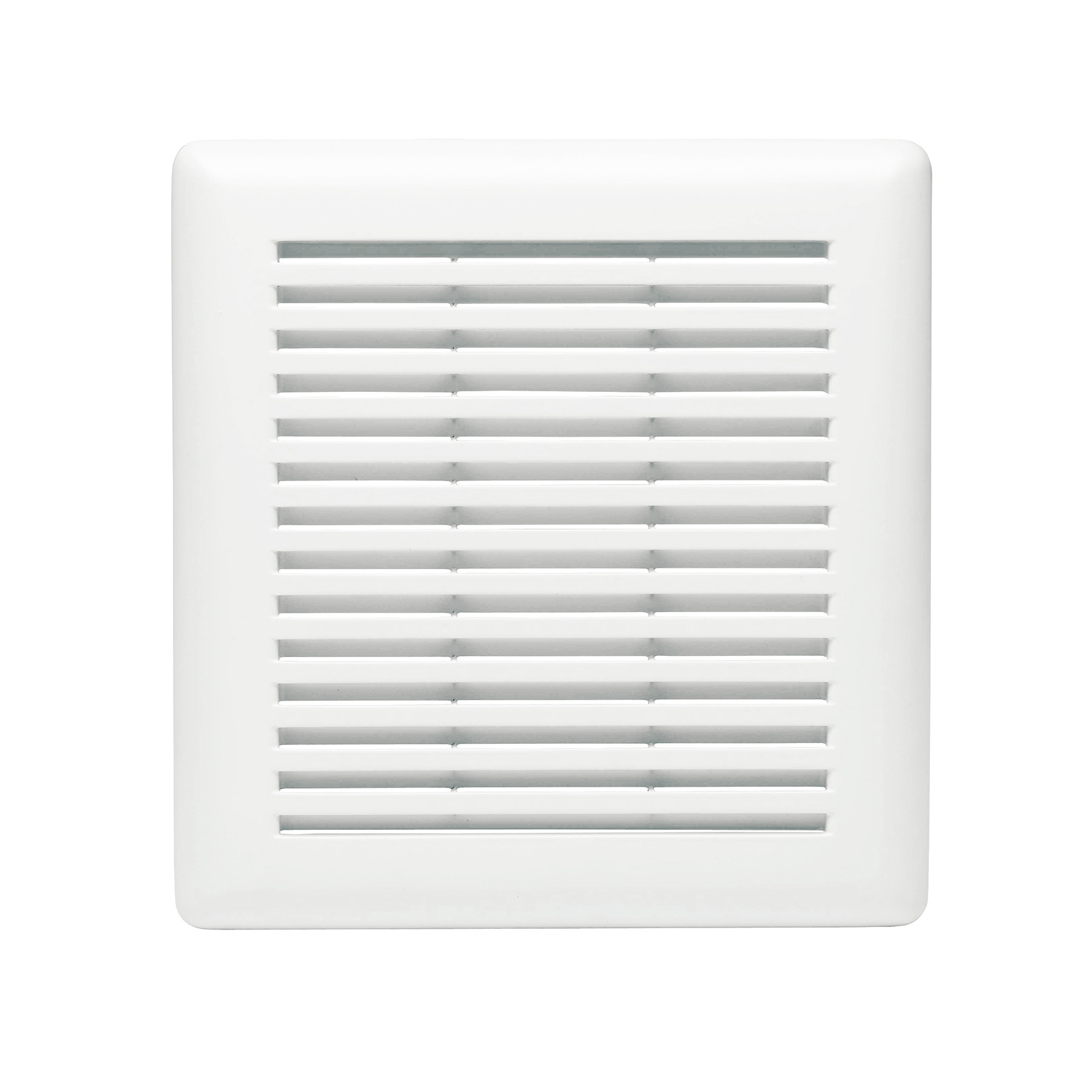

The NuTone® 696N Wall/Ceiling 50 CFM Bath Fan is ideal for baths up to 45 sq. ft. It is also suitable for utility and recreation rooms up to 60 sq. ft. The attractive yet functional white polymeric grille has torsion springs that allow adjustment for thickness variances in ceilings or walls.


Model:

696N

Features

  • 50 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
  • 4.0 Audible Sones for privacy while using your bathroom
  • Mounts on either 16 in. or 24 in. O.C. joist or stud
  • Compact housing for versatile installation
  • Extra-large outlet box area
  • UL-listed; safe for use over tub or shower enclosure when installed in a GFCI protected branch circuit
  • Powerful enough for rooms up to 45 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated 0.9 amp AC motor engineered for continuous operation

Upgrade This Fan with These Grille/Cover Options

Broan® Easy Install Ceiling Exhaust Fan Grille/Cover with LED Light (single unit)

Broan® Easy Install Ceiling Exhaust Fan Grille/Cover with LED Light (single unit)

Model:

FG600S

 Broan® Bluetooth® Speaker Quick Install Bathroom Exhaust Fan Grille/Cover w/ LED Light (single unit)

Broan® Bluetooth® Speaker Quick Install Bathroom Exhaust Fan Grille/Cover w/ LED Light (single unit)

Model:

FG800SPKS

Broan® Universal CleanCover™ Bathroom Exhaust Fan Upgrade Grille/Cover (single unit)

Broan® Universal CleanCover™ Bathroom Exhaust Fan Upgrade Grille/Cover (single unit)

Model:

FG701S

NuTone® Bathroom Exhaust Fan Grille/Cover w/ LED Light (single unit)

NuTone® Bathroom Exhaust Fan Grille/Cover w/ LED Light (single unit)

Model:

FG500NS

Suggested Installation Accessories

Broan-NuTone® Wall Vent Kit,  3" or 4" Round Duct

Broan-NuTone® Wall Vent Kit, 3" or 4" Round Duct

Model:

WVK2A

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Model:

RVK1A

Broan-NuTone® Steel Wall Cap for 3-Inch and 4-Inch Round Duct, Black

Broan-NuTone® Steel Wall Cap for 3-Inch and 4-Inch Round Duct, Black

Model:

885BL

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Model:

82W

  • Specs
  • Downloads

print

CFM 50
Color Finish
Duct Size 3
ENERGY STAR® certified No
Grille Length 8.75
Grille Width 9.125

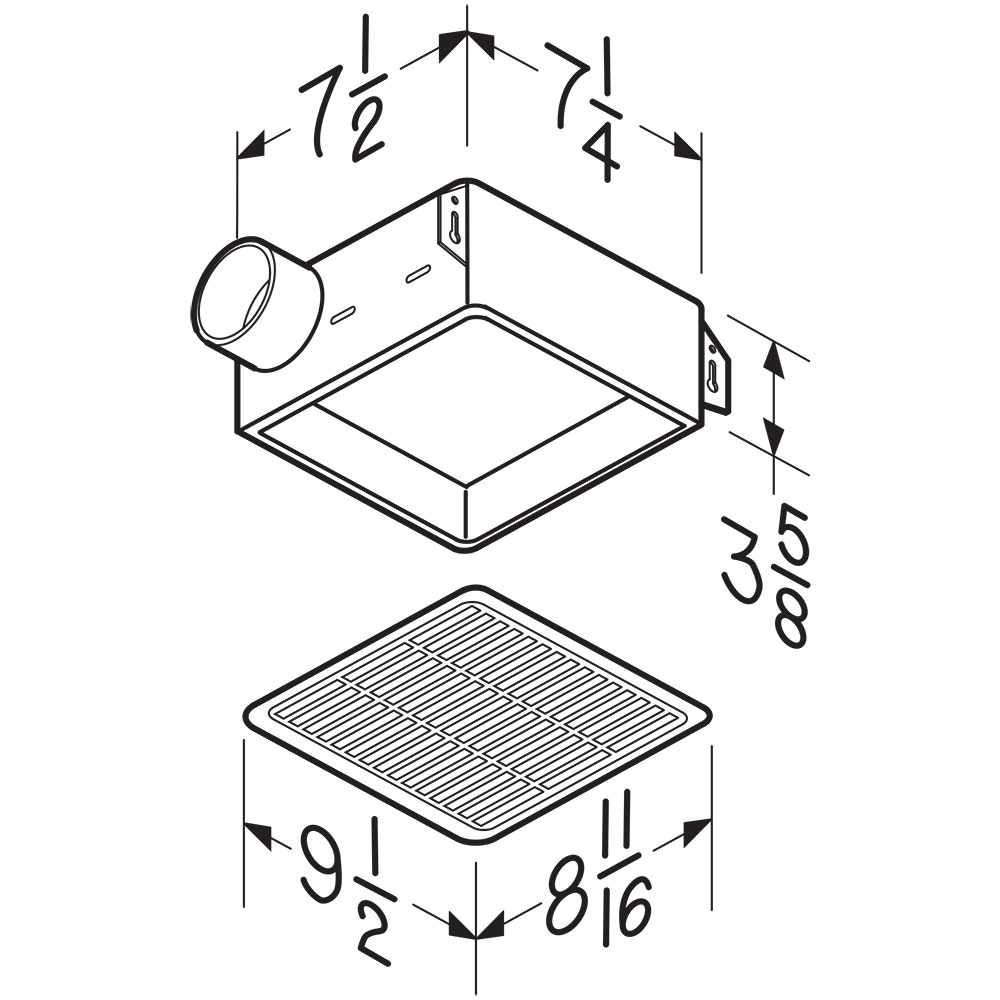

Housing Dimensions 7-1/2" x 7-1/4" x 3-5/8"
Sound Level (Sones) 4
UL Listed Yes
Grille Finish White
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation No
Night Light No
Radiation Damper Available No
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 45
Rated Amps 0.9
Voltage 120
Can Be Used To Comply With Title 24 No
Minimum Construction Space Required 2" x 4"
Manufacturer Warranty 1 Year
High Efficiency Luminaire No
