Utility Fans

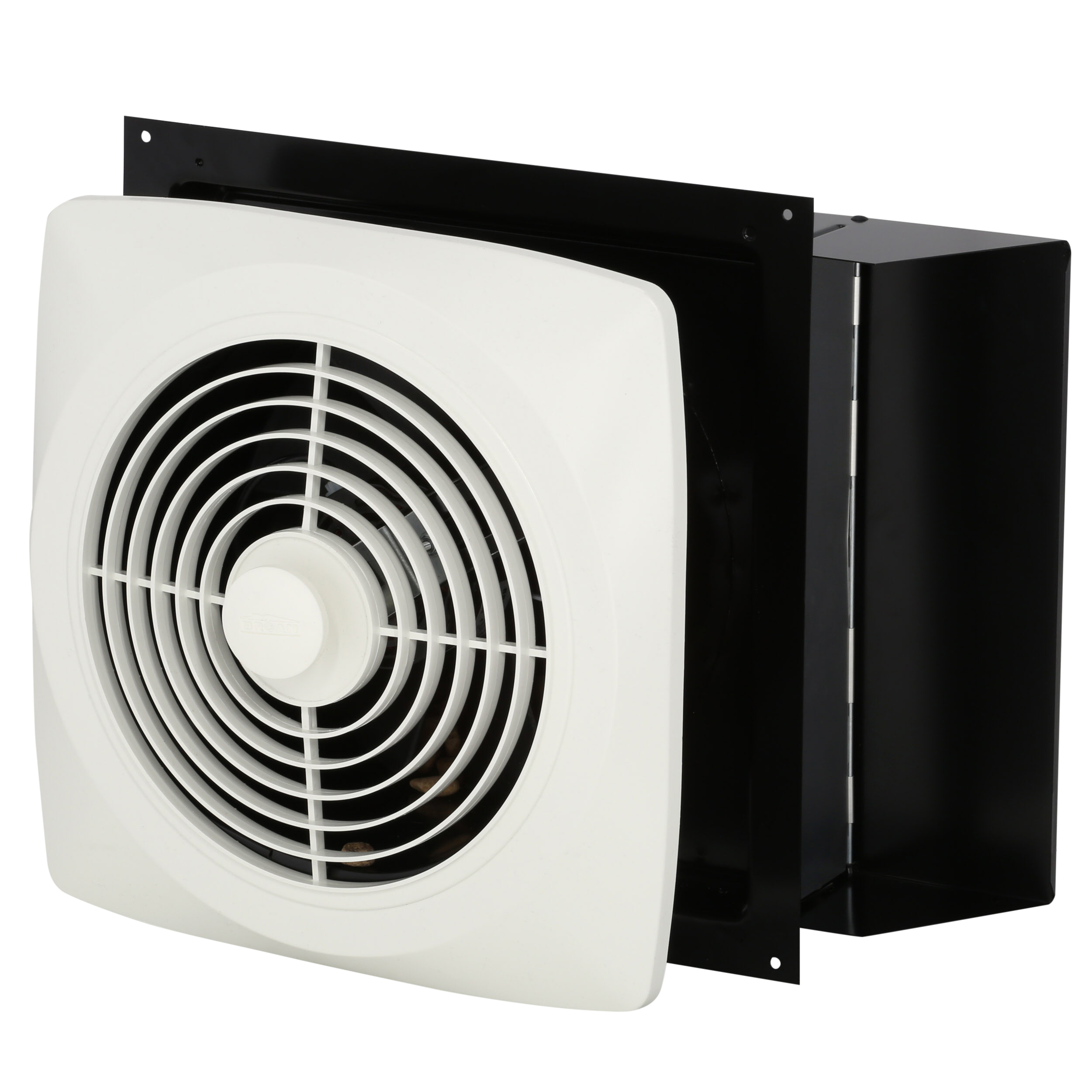

**DISCONTINUED** Broan® 290 CFM Through-Wall Ventilation Fan

Product Discontinued



Suggested Replacement: 509


Compatible with Overture™ Connected IAQ System

Compatible with Overture™ Connected IAQ System

UL Listed

UL Listed

  • 290 CFM - ventilate up to 285 sq. ft.
  • 7.5 Audible Sones
  • Fight heat, humidity buildup and unwanted smells inside the garage, kitchen, laundry or rec room
  • Built-in exterior wall cap/vent, no ducting needed for installation
  • Effectively ventilate a one or two car garage, either attached or detached from the home
  • Use for spot ventilation in a larger garage near a work bench, car, garbage can, lawn mower, or other spaces within the garage
  • Tested and approved for extreme hot and cold weather
  • Motor assembly offers a fast and easy twist-lock installation
  • Housing adjusts to fit walls from 4½"–9½" thick
  • Galvanized steel housing for superior protection against the elements and wear and tear
  • Pair this fan with a Broan-NuTone® motion or humidity sensing wall control to provide automatic ventilation (sold separately)
  • Install with a delay-off or countdown timer wall control to automatically turn off the fan after leaving the room/garage (sold separately)
  • Specs
  • Downloads


CFM 290
Color Finish
Duct Size 10
ENERGY STAR® certified No

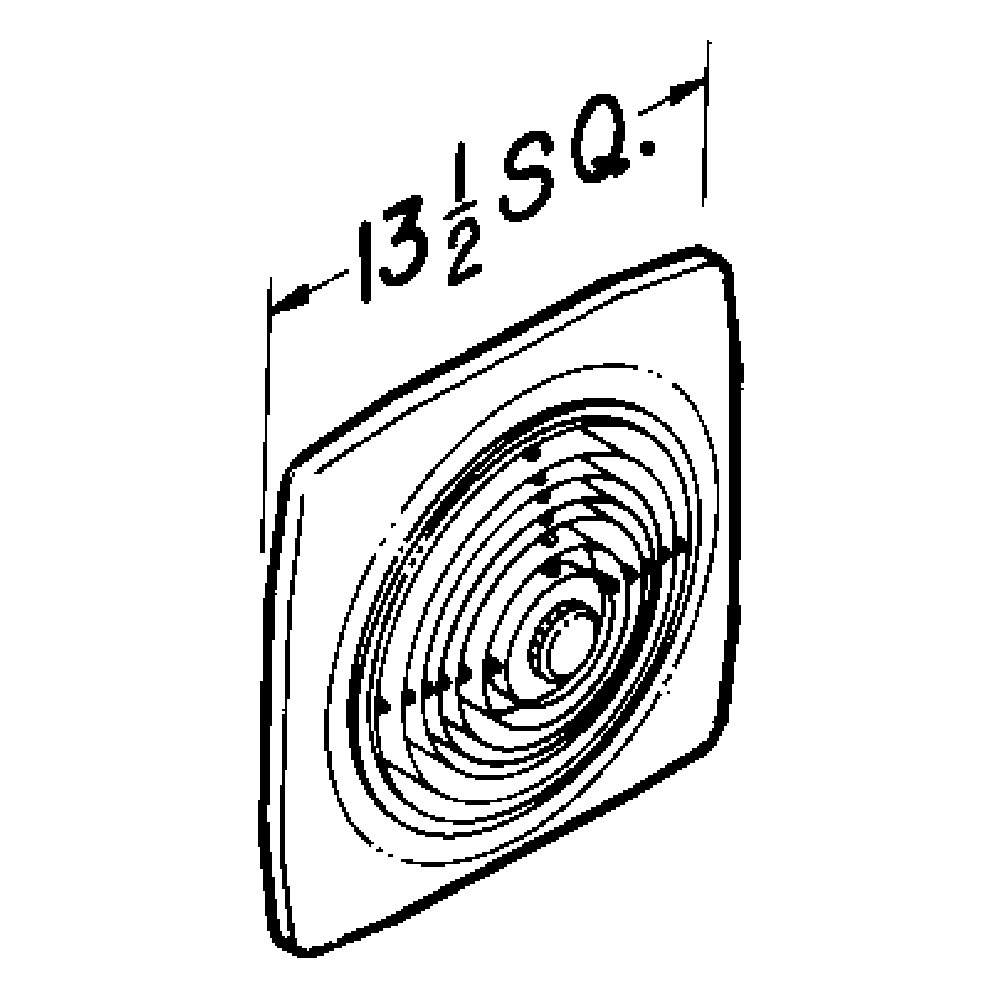

Grille Length 13.5
Grille Width 13.5

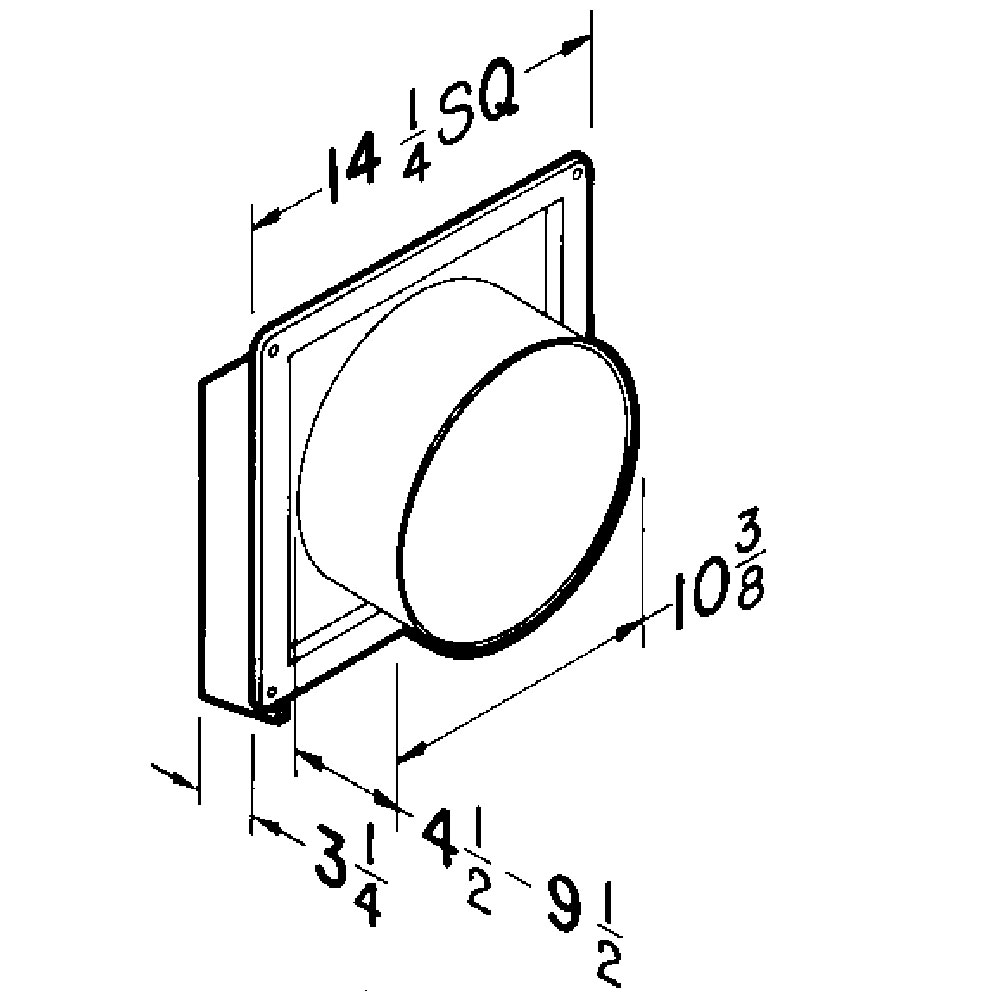

Housing Dimensions 14-1/4" x 14-1/4" x 9-1/2"
Sound Level (Sones) 7.5
UL Listed Yes
Grille Finish White
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation No
Night Light No
Radiation Damper Available No
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit No
Heater Wattage 0
Rated Amps 1.7
Voltage 120
Can Be Used To Comply With Title 24 No
Manufacturer Warranty 1 Year
High Efficiency Luminaire No
