Broan® 20.5-Inch Custom Range Hood Power Pack, 440 Max Blower CFM, Stainless Steel
High-performance ventilation solutions. These integrated range hood insert units provide the ventilation and lighting you need for your custom application. Broan "B" liners provide an elegant way to finish a traditional wood hood and protect cabinetry. Smooth surfaces clean easily and quick-release filters can go in the dishwasher.
Model:
PM390SSP
Features
- Durable, stainless steel finish and a fully enclosed bottom ensure this hood is easy to clean and will not discolor
- 440 MAX Blower CFM quickly removes smoke and odors from the air
- Three-speed pushbutton control provides the right ventilation choice
- Heat-resistant LED lighting with 3-year warranty provides crisp, even light over the entire cook surface
- One-piece, washable aluminum mesh filter means you can maintain optimum grease capture and keep the kitchen fresh
- Optional non-ducted filter kit model 360NDK for indoor exhaust recirculation (includes duct accessories & charcoal filter), sold separately. Replacement charcoal filter is 99010464
- Optional 30" (model LB30SS) or 36” (model LB36SS) Box Liners in Stainless Steel
- The choice of 6" round duct (includes damper and adapter) or non-ducted discharge allow you to make the right installation decision for your home
- Heat Sentry® detects excessive heat and adjusts blower to High speed automatically
- Can work in an ADA Compliant situation when wired to operate from a dedicated, standard 2-rocker or 3-rocker wall switch to turn the hood on or off
- Specs
- Downloads
| Filter Type | Mesh |
|---|---|
| Heat Sentry™ | No |
| HVI Certified | Yes |
| Lighting Type | LED |
| Sound Level (Sones) | 6 |
| UL Listed | Yes |
| ADA Compliance | No |
| Damper Included | Yes |
| ENERGY STAR® certified | No |
| Light Bulb Wattage | 4.5 |
| Light Bulbs Included | Yes |
| Light Levels | 1 |
| Material | Steel |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 3 |
| Switch Control Type | Push Button |
| Rated Voltage | 120 |
| Boost Mode | No |
| Country of Origin | Mexico |
| Color Finish |
|
| Rated Amps | 2.3 |

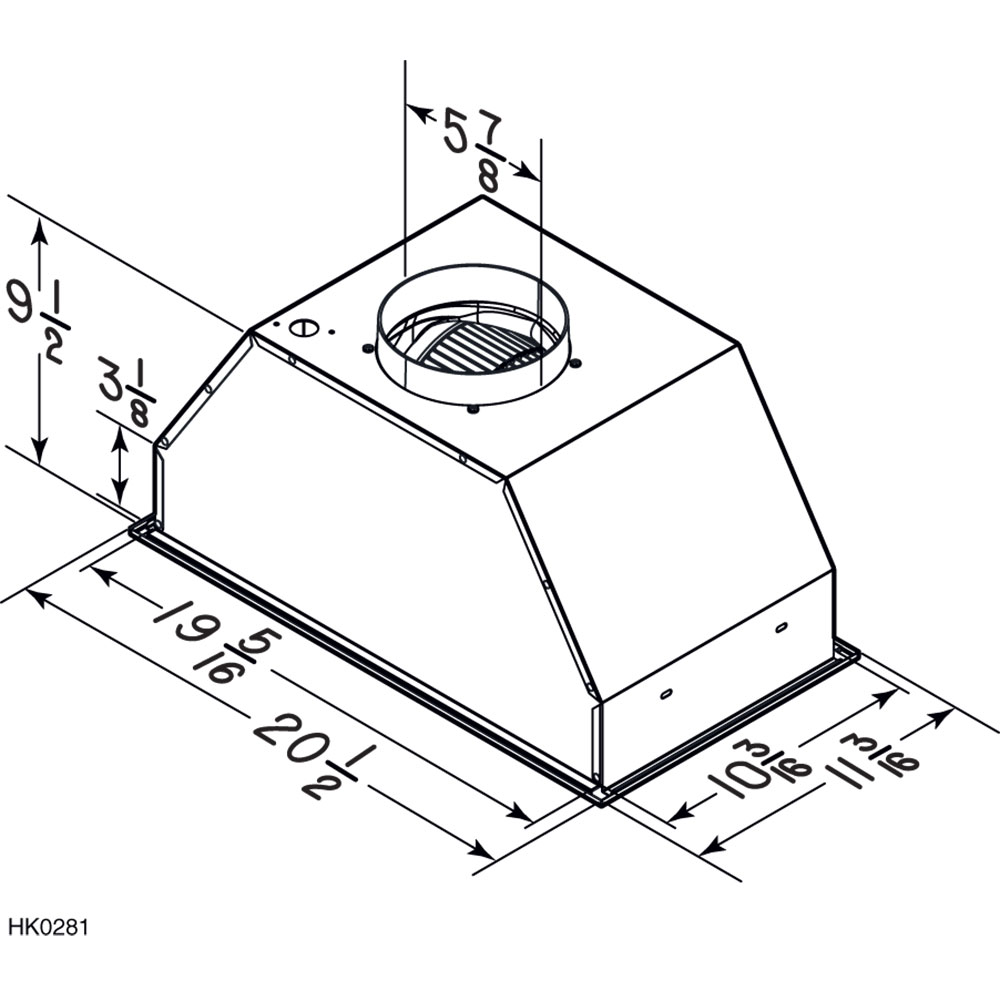

| Product Depth | 10.1875 |
| Product Height | 9.5 |
| Product Width | 20-1/2" |
| Built-In Timer | No |
| CFM | 440 Max |
| Diameter | 6" Round |
| Vent Type | Ducted & Ductless |
| Duct Direction | Vertical |
| Bulb (Recommended Type) | Integrated LED Module |
| Light Color Temp | 3000 |
| Manufacturer Warranty | 1 Year, 3 Year LED module |
