Broan® Spire BPDP1 Series Under-Cabinet Range Hood

Broan® 42-Inch Convertible Under-Cabinet Range Hood, 400 CFM, Stainless Steel

Broan brings you Spire, an exciting new shape in a pro-style hood. The new design incorporates modern features like the quiet Captur™ system and LED lighting.


Color Finish



Model:

BPDP142SS

Features

  • The Captur™ system's advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Two-speed blower control exhausts at a strong 400 CFM
  • Smooth-flow blower wheel design and high flow filters ensure quiet, less than 1.0 sones operation at normal speed
  • Streamlined, deluxe rocker control operates light and fan speeds
  • Pro-style, dishwasher-safe, hybrid baffle filters provide ultra-efficient grease removal with superior air flow
  • EZ1 brackets make it easy for single-person installation in less than half the time of traditional methods
  • ADA compliant, remote operation is possible using a standard UL approved wall switch
  • Compatible with optional Broan Make-up Air Dampers (sold separately) to fit 6", 8" or 10" ducting and help to balance the air pressure when the range hood is in use, keeping your environment comfortable and meeting local codes
  • Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
  • Specs
  • Downloads
  • Videos

print

Filter Type Hybrid Baffle
Heat Sentry™ No
HVI Certified Yes
Lighting Type LED
UL Listed Yes
ADA Compliance Yes
Damper Included No
ENERGY STAR® Certified No
Light Bulb Wattage 4.5
Light Bulbs Included Yes
Light Levels 1
Material Steel
Nightlight Or Nighlight Setting No
Ductless Recirculation Capable Yes
Ductless Filter Or Kit Included No
Remote Operation Capable No
Speed Levels 2
Switch Control Type Deluxe Rocker
Rated Voltage 120
Boost Mode No
Country of Origin Mexico
Color Finish
Rated Amps 1.4

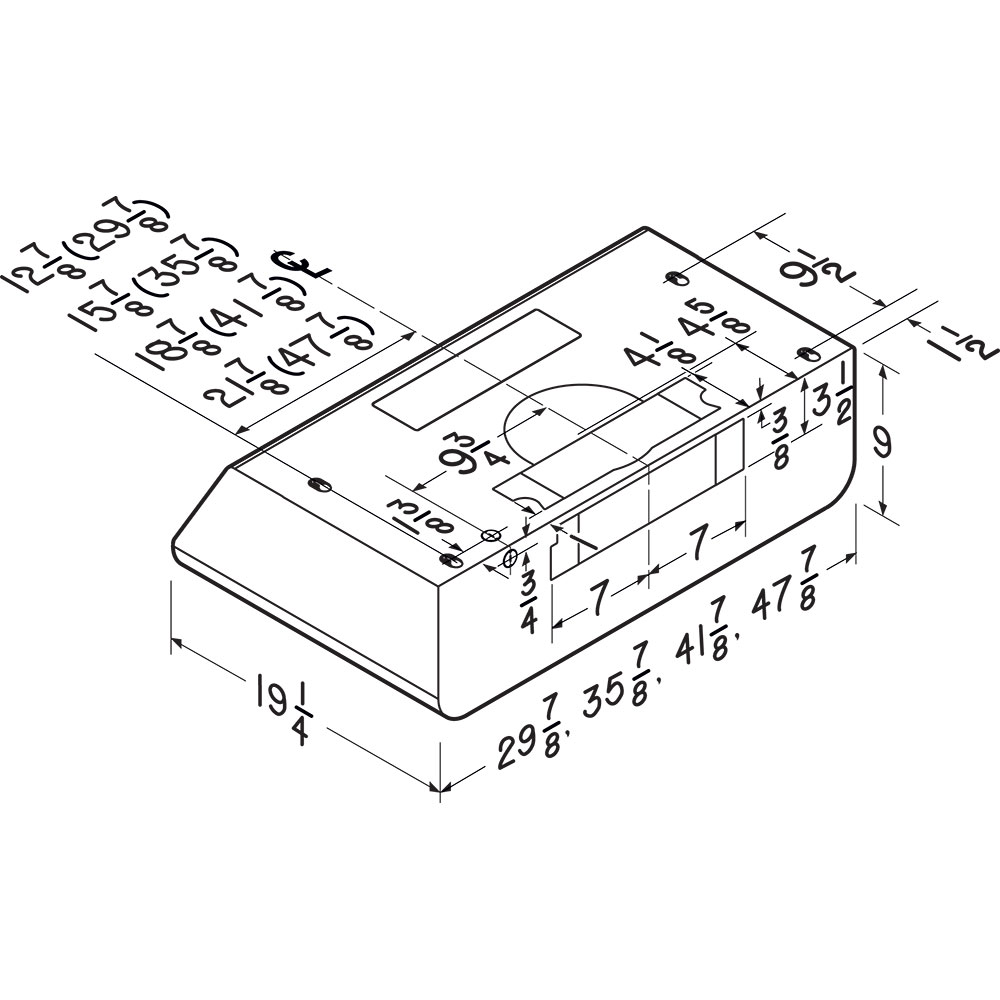

Product Depth 19.25"
Product Height 9"
Product Width 42"
Built-In Timer No
Capture Efficiency 98.5
CFM 400
Diameter 7" Round
Vent Type Convertible Built-In
Duct Direction Horizontal/Vertical
Bulb (Recommended Type) Integrated LED Module
Light Color Temp 3000
Manufacturer Warranty 1 Year, 3 Year LED module
Wattage 168
Broan Twin Blower Under Cabinet Range Hood Installation Video
