Product Discontinued
BCDF1 Series Under-Cabinet Range Hood
Broan® Glacier 30-Inch Convertible Under-Cabinet Range Hood, 375 Max Blower CFM, Black Stainless Steel
Features
1-Person Installation in Half the Time
HVI Certified
UL Listed
- Convertible range hood can be installed as venting or non-venting to fit a variety of installation needs
- Tap-touch capacitive control features a smooth, easy-to-clean surface
- Captur™ system and 375 max blower CFM is 98.1% efficient in removal of smoke and odor from cooking
- Smooth-flow blower wheel design and high flow filters ensure quiet operation, 2.0 Sones, at normal speed
- Dishwasher-safe, micromesh filters with clean reminder provide efficient grease removal
- Bright, 2-level LED modules are supported by a 3-year warranty and illuminate evenly (Modules included)
- Hidden louvers on top of hood exhaust away from cabinetry
- EZ1® system makes it easy for single-person installation in less than half the time of traditional methods
- Limited 1 year warranty
- Can be installed for ADA Compliance with the purchase of a wall switch (not included) and Broan-NuTone model HAWRK3 Low Voltage Wiring Kit for ADA Application (purchase separately)
- Non-duct capable with use of charcoal filters (model HPF30 [service part #S97020466]), sold separately
- Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
Need Installation?
Find the nearest Certified Broan-NuTone Fresh Air Specialist
When you’re ready to put a Broan-NuTone fresh air system into your home, we’re ready to help you find a certified installer. Find one of our Premier Pro Fresh Air Specialists to help you improve your indoor air quality.
Search for Local Installers- Specs
- Downloads
| Filter Type | Micro Mesh |
|---|---|
| Heat Sentry™ | No |
| HVI Certified | Yes |
| Lighting Type | LED |
| Sound Level (Sones) | 1.5 |
| UL Listed | Yes |
| ADA Compliance | Yes |
| Damper Included | No |
| ENERGY STAR® certified | No |
| Light Bulb Wattage | 4.5 |
| Light Bulbs Included | Yes |
| Light Levels | 2 |
| Material | Steel |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 3 |
| Switch Control Type | Capacitive Touch |
| Rated Voltage | 120 |
| Boost Mode | No |
| Color Finish |
|
| Rated Amps | 0.65 |

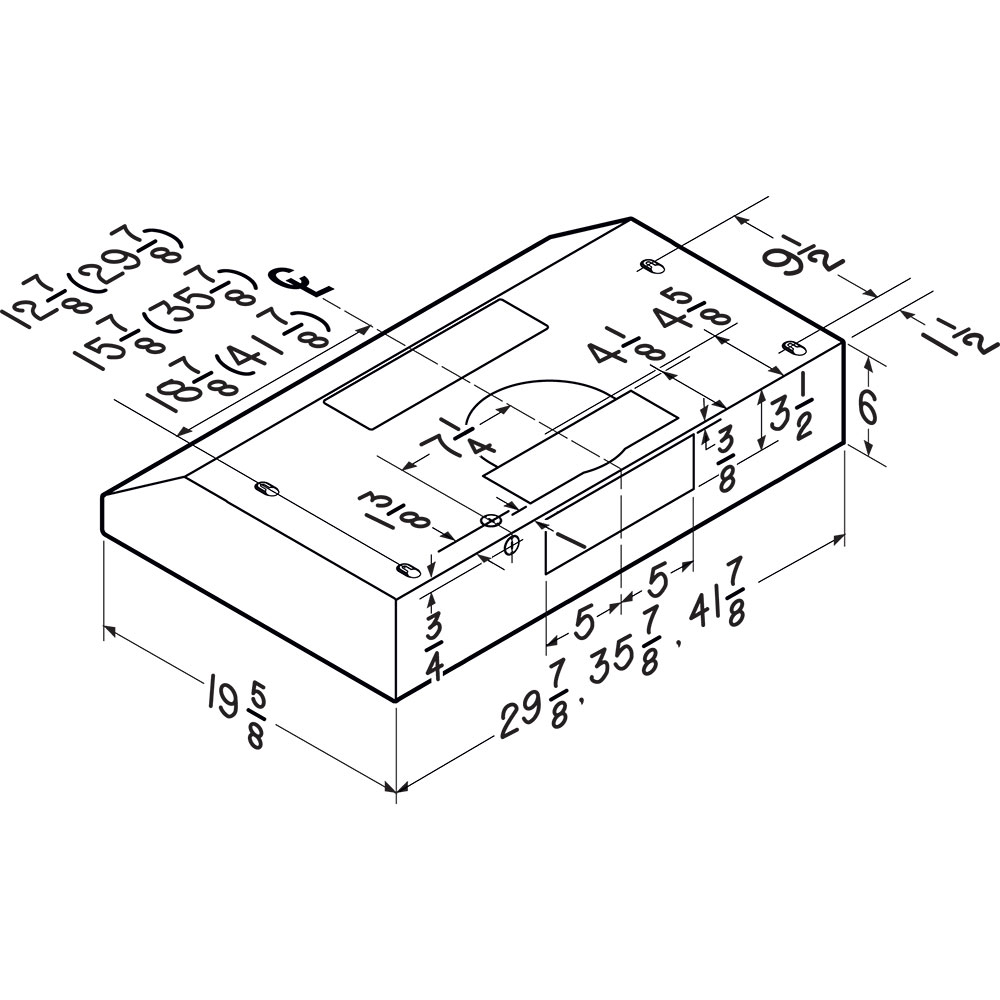

| Product Depth | 19.625" |
| Product Height | 6" |
| Product Width | 30" |
| Built-In Timer | No |
| Capture Efficiency | 98.1 |
| CFM | 375 Max |
| Diameter | 7" Round |
| Vent Type | Convertible Built-In |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | Integrated LED Module |
| Light Color Temp | 3000 |
| Manufacturer Warranty | 1 Year, 3 Year LED module |
| Wattage | 78 |
