ULTRA GREEN™ Series

ULTRA GREEN ZB Series 80 CFM Multi-Speed Ceiling Bathroom Exhaust Fan with LED Light and Motion Sensing, ENERGY STAR®

The Broan® ZB80ML1 ULTRA GREEN™ 80 CFM Multi-Speed Motion Sensing Ceiling Exhaust Bath Fan with LED Light delivers everything you wished for in a bath fan - premium ventilation to help reduce airborne pollutants, ease of installation, energy efficiency, consistent power, extremely quiet operation and multi-speed capability. ULTRASense™ M, Motion Sensing Technology, offers a hands-free solution for maximum convenience. The fan will increase to maximum speed from the lower, continuous setting when motion is detected - which is ideal for family members who forget to turn the fan on - and will stay on the max setting for the user-set 5-minutes to 60-minutes period after no motion is detected, before falling back to the continuous setting. This ENERGY STAR® fan includes dimmable LED lighting to keep your bathroom illuminated whenever you need.


Model:

ZB80ML1

Features

  • 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • <0.3 Sones for Ultra quiet performance, you might not notice it's on
  • Bright 3500K energy efficient LED lighting to help illuminate your room
  • ULTRAQuick™ Installation Technology uses an exclusive telescoping mounting frame with pre-installed screws
  • Snap-in housing, snap-in blower, and an inside-out mounting duct connector for the fastest, esiest, most universal installation
  • Mounting Frame fits any type of joist, I-Joist or truss construction for a "no guessork" installation to make the work fast and easy
  • ENERGY STAR® Certified to meet or exceed federal guidelines for energy efficiency for year-round energy and money savings
  • Title 24 compliant
  • Powerful enough for rooms up to 75 sq. ft.
  • Powerful enough for rooms up to 45 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation

Suggested Installation Accessories

Broan-NuTone® Steel Roof Cap for 6-Inch Round Duct with Backdraft Damper and Bird Screen, Black

Broan-NuTone® Steel Roof Cap for 6-Inch Round Duct with Backdraft Damper and Bird Screen, Black

Model:

634M

Broan-NuTone® Wall Cap, Steel, Black, 6-Inch Round Duct

Broan-NuTone® Wall Cap, Steel, Black, 6-Inch Round Duct

Model:

843BL

Flex Duct 6-Inch Insulated (25 ft.)

Flex Duct 6-Inch Insulated (25 ft.)

Model:

DT6W

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Model:

82W

  • Specs
  • Downloads

print

CFM 80
Color Finish
Duct Size 6
ENERGY STAR® certified Yes
Grille Length 13.75
Grille Width 14.25

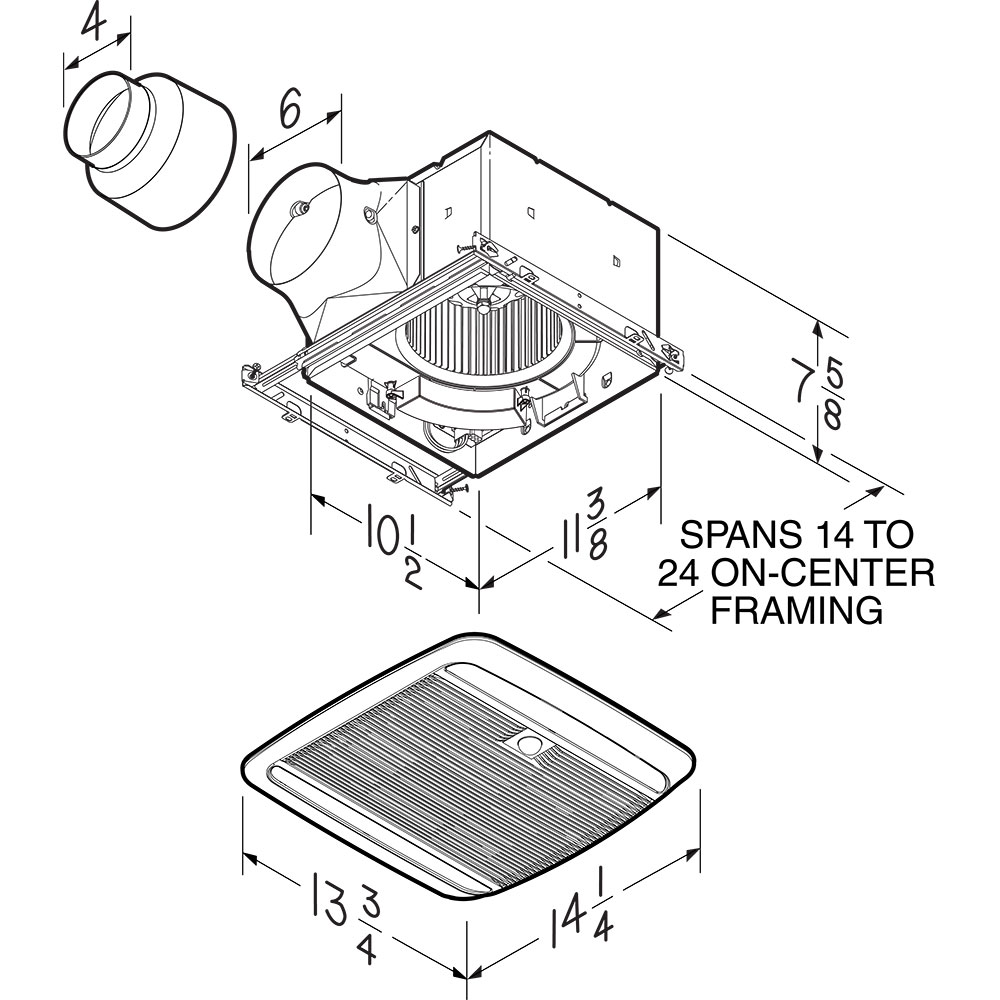

Housing Dimensions 10-1/2" x 11-3/8" x 7-5/8"
UL Listed Yes
Grille Finish White
Humidity Sensing No
Light Bulb Quantity 1
Motion Sensing Yes
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available Yes
Room Side Installation Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 75
Rated Amps 0.4
Voltage 120
Can Be Used To Comply With Title 24 Yes
Bulb (Recommended Type) Integrated LED Module
Minimum Construction Space Required 2" x 8"
Manufacturer Warranty 3 Years
High Efficiency Luminaire Yes
