ULTRA GREEN™ Series

Broan® ULTRA GREEN™ Series 110 CFM Motion Sensing Multi-Speed Ventilation Fan, <0.3 Sones

The Broan® ZB110M ULTRA GREEN™ 110 CFM Motion-Sensing Exhaust Bath Fan delivers premium ventilation to help reduce airborne pollutants and offers easy installation, energy efficiency, consistent power, extremely quiet operation and multi-speed capability. ULTRASense™ Motion Sensing Technology offers a hands-free solution for maximum convenience, allowing the fan to increase to maximum speed from the lower, continuous setting when motion is detected, ideal for family members who forget to turn the fan on. It also remains on the max setting for the user-set 5-minutes to 60-minutes period after no motion is detected, before returning to the continuous setting.


Model:

ZB110M

Features

  • 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • <0.3 Sones for Ultra quiet performance, you might not notice it's on
  • Motion sensor automatically turns fan on when you enter the room and off when you leave
  • ULTRAQuick™ Installation Technology uses an exclusive telescoping mounting frame with pre-installed screws
  • Snap-in housing, snap-in blower, and a inside-out mounting duct connector for the fastest, easiest, most universal installation
  • Mounting Frame fits any type of joist, I-Joist or truss construction for a "no guesswork" installation to make the work fast and easy
  • ENERGY STAR® Certified to meet or exceed federal guidelines for energy efficiency for year-round energy and money savings
  • Title 24 compliant
  • UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only) and for use in insulated ceilings (type IC)
  • Powerful enough for rooms up to 100 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
  • Specs
  • Downloads

print

CFM 110
Color Finish
Duct Size 6
ENERGY STAR® Certified Yes
Grille Length 13.125
Grille Width 14

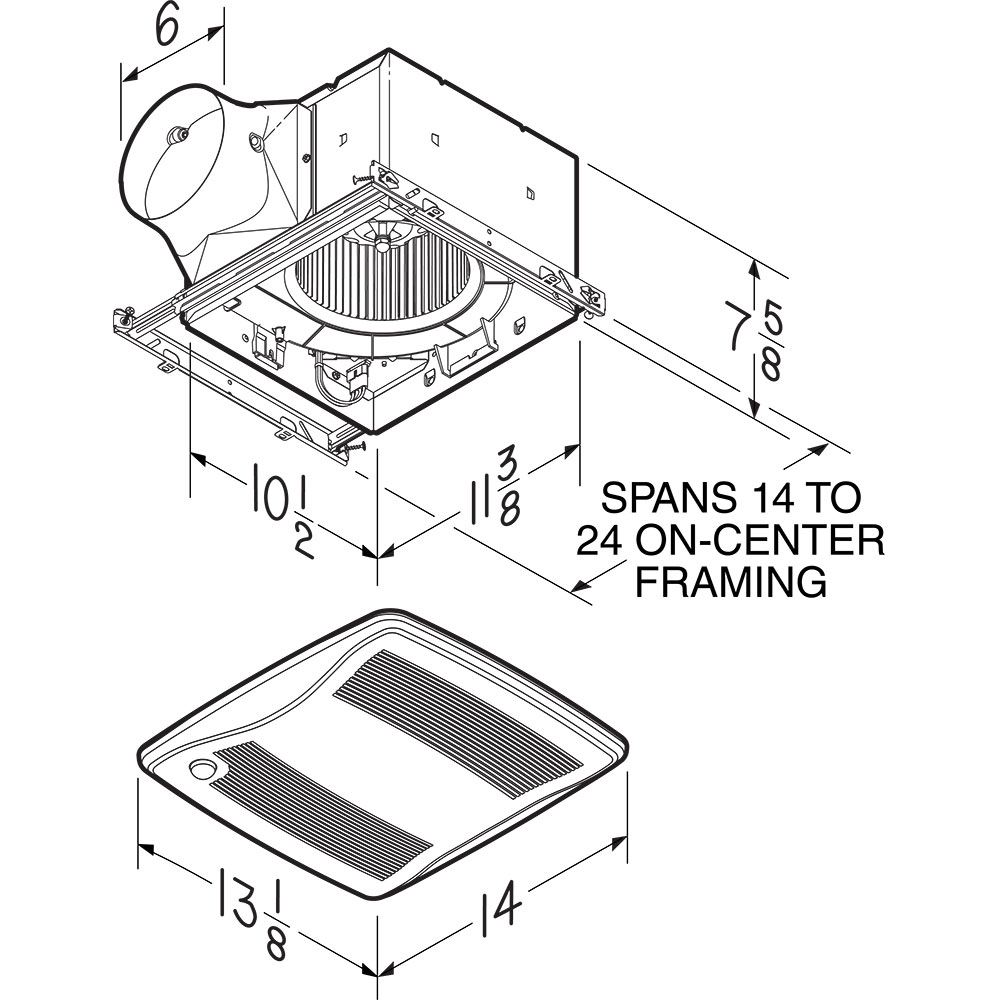

Housing Dimensions 10-1/2" x 11-3/8" x 7-5/8"
UL Listed Yes
Grille Finish White
Humidity Sensing No
Motion Sensing Yes
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available Yes
Room Side Installation Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 105
Rated Amps 0.4
Voltage 120
Can Be Used To Comply With Title 24 Yes
Minimum Construction Space Required 2" x 8"
Manufacturer Warranty 3 Years
High Efficiency Luminaire No
