ULTRA GREEN™ Series

Broan® ULTRA GREEN™ Series 110 CFM Humidity Sensing Multi-Speed Ventilation Fan/LED Light, <0.3 Sone

The Broan® XB110HL1 ULTRA GREEN™ Humidity Sensing Fan with an integrated LED module, delivers premium performance for today's demanding requirements. 110 CFM of premium ventilation with ULTRASilent™ technology operates at the lowest sound rating achievable, less than 0.3 sones. The ULTRASense™ technology reacts to a rise in humidity, meaning you no longer have to remember to turn on the fan when you shower. The ULTRASmart DC motor and control technology provides energy efficiency almost 10 times greater than ENERGY STAR® requirements. With ULTRAQuick™ installation technology the XB110HL1 provides the fastest, easiest, and most universal installation in remodel, retrofit, and new construction.


Model:

XB110HL1

Features

  • 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • <0.3 Sones for Ultra quiet performance, you might not notice it's on
  • Bright 3500K energy efficient LED lighting to help illuminate your room
  • ULTRASense™ Humidity sensing capabilities to automatically vent a bathroom
  • ULTRAQuick™ Installation Technology uses an exclusive telescoping mounting frame with pre-installed screws
  • Snap-in housing, snap-in blower, and a inside-out mounting duct connector for the fastest, easiest, most universal installation
  • Mounting Frame fits any type of joist, I-Joist or truss construction for a "no guesswork" installation to make the work fast and easy
  • ENERGY STAR® Certified to meet or exceed federal guidelines for energy efficiency for year-round energy and money savings
  • UL listed for use over tubs/showers with GFCI circuit
  • Powerful enough for rooms up to 100 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation

Suggested Installation Accessories

Broan-NuTone® Steel Roof Cap for 6-Inch Round Duct with Backdraft Damper and Bird Screen, Black

Broan-NuTone® Steel Roof Cap for 6-Inch Round Duct with Backdraft Damper and Bird Screen, Black

Model:

634M

Broan-NuTone® Wall Cap, Steel, Black, 6-Inch Round Duct

Broan-NuTone® Wall Cap, Steel, Black, 6-Inch Round Duct

Model:

843BL

Flex Duct 6-Inch Insulated (25 ft.)

Flex Duct 6-Inch Insulated (25 ft.)

Model:

DT6W

Broan-NuTone® Occupancy Sensor, White

Broan-NuTone® Occupancy Sensor, White

Model:

MS100W

  • Specs
  • Downloads

print

CFM 110
Color Finish
Duct Size 6
ENERGY STAR® Certified Yes
Grille Length 13.75
Grille Width 14.25

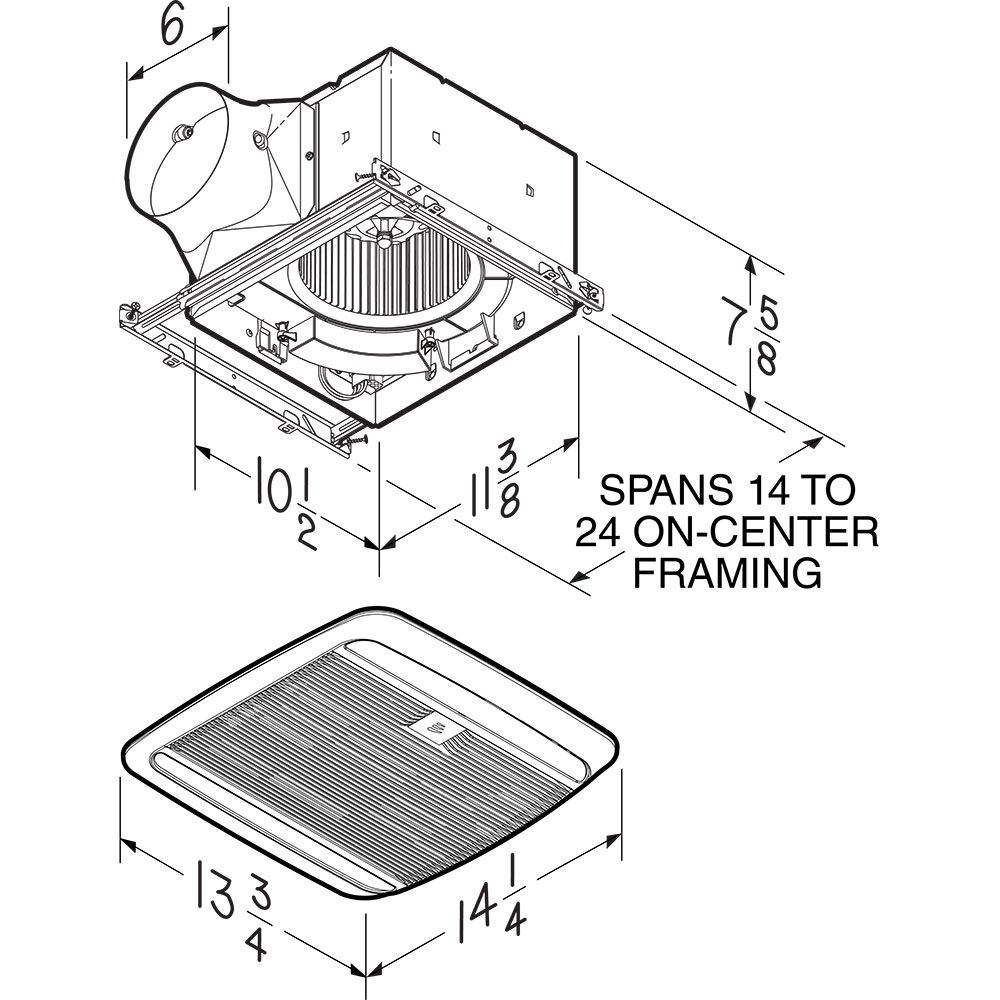

Housing Dimensions 10-1/2" x 11-3/8" x 7-5/8"
UL Listed Yes
Grille Finish White
Humidity Sensing Yes
Light Bulb Quantity 1
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available Yes
Room Side Installation Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 105
Rated Amps 0.5
Voltage 120
Can Be Used To Comply With Title 24 Yes
Bulb (Recommended Type) Integrated LED Module
Minimum Construction Space Required 2" x 8"
Manufacturer Warranty 3 Years
High Efficiency Luminaire Yes
