QT™ Series Heater/Fan/Light
NuTone® 110 CFM Exhaust Vent Fan w/ 1500W Heater & Florescent Light
With a motor engineered for continuous operation, the NuTone® QTX Series Very Quiet 110 CFM Ceiling Exhaust Fan with Incandescent Light and Heater operates at a very quiet 0.9 sones. The fan provides incandescent lighting, nighttime lighting and heating. Use two 60-watt incandescent bulbs and one 7-watt bulb for primary and nighttime lighting (bulbs not included). The 1,500-watt heater provides nearly instant heat. Use the UL-listed fan in rooms up to 100 sq. ft. This fan requires a dedicated 20 Amp circuit.
Model:
QTXN110HL
Features
- 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 0.9 Sones for Ultra quiet performance, you might not notice it's on
- Uses two 60-watt incandescent bulbs for bright illumination and a 7-watt night-light for safety (bulbs not included)
- PowerHeat™ design ensures powerful heating, light, and ventilation are available at the touch of a switch
- Requires a dedicated 20 amp circuit (sold separately)
- 6 in. ducting with damper for superior performance
- UL listed and HVI-2100 certified for safety and reliability
- UL listed for use in insulated ceilings (Type I.C.)
- Brighter white grilles blend in to match most common ceiling paint
Suggested Installation Accessories
Broan-NuTone® Steel Roof Cap for 6-Inch Round Duct with Backdraft Damper and Bird Screen, Black
Model:
634M
Broan-NuTone® Steel Wall Cap for 6" Round Duct with Backdraft Damper and Bird Screen, Black
Model:
843BL
Flex Duct 6-Inch Insulated (25 ft.)
Model:
DT6W
Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack
Model:
82W
- Specs
- Downloads
| CFM | 110 |
|---|---|
| Color Finish |
|
| Duct Size | 6 |
| ENERGY STAR® certified | No |
| Grille Length | 20 |
| Grille Width | 15 |

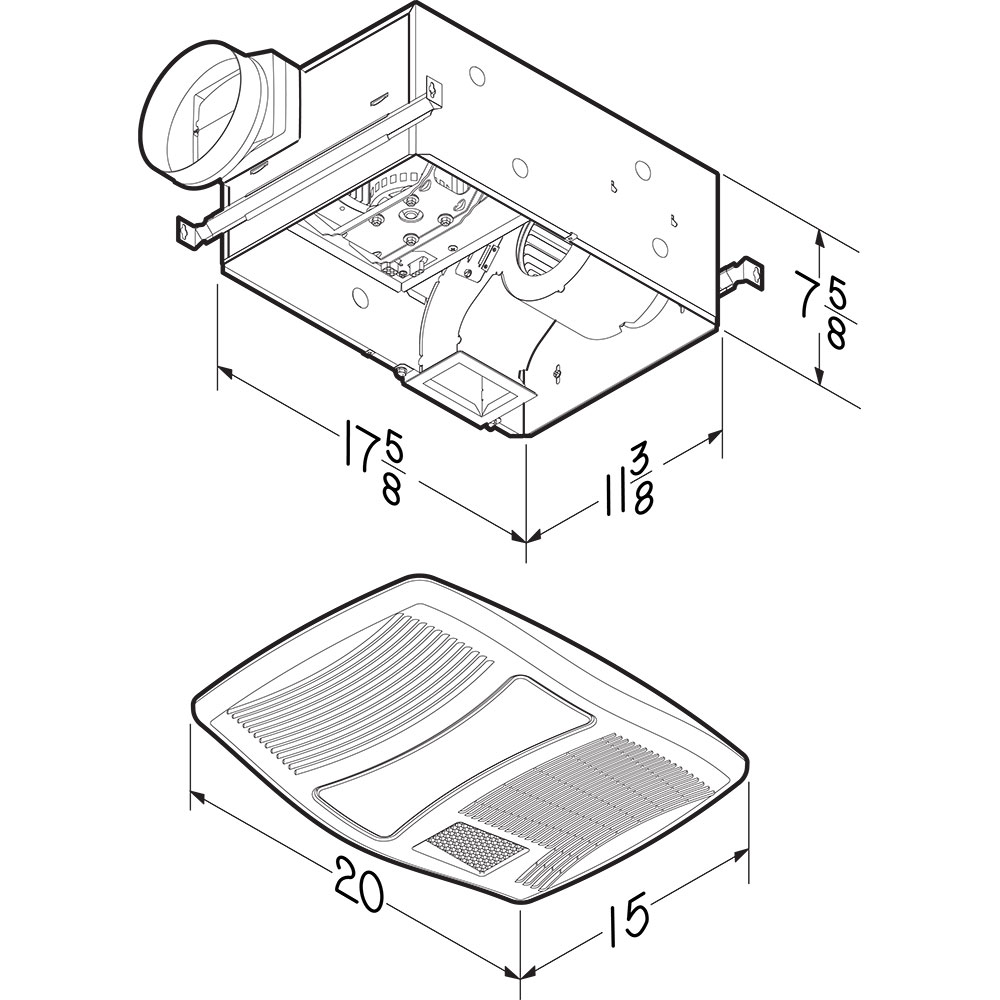

| Housing Dimensions | 17-5/8" x 11-3/8" x 7-5/8" |
| Sound Level (Sones) | 0.9 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 2 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | Yes |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
| Heater Wattage | 1500 |
| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 14.6 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | 60W and 7W |
| Minimum Construction Space Required | 2" x 8" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
