QTXEN™ Series Fans

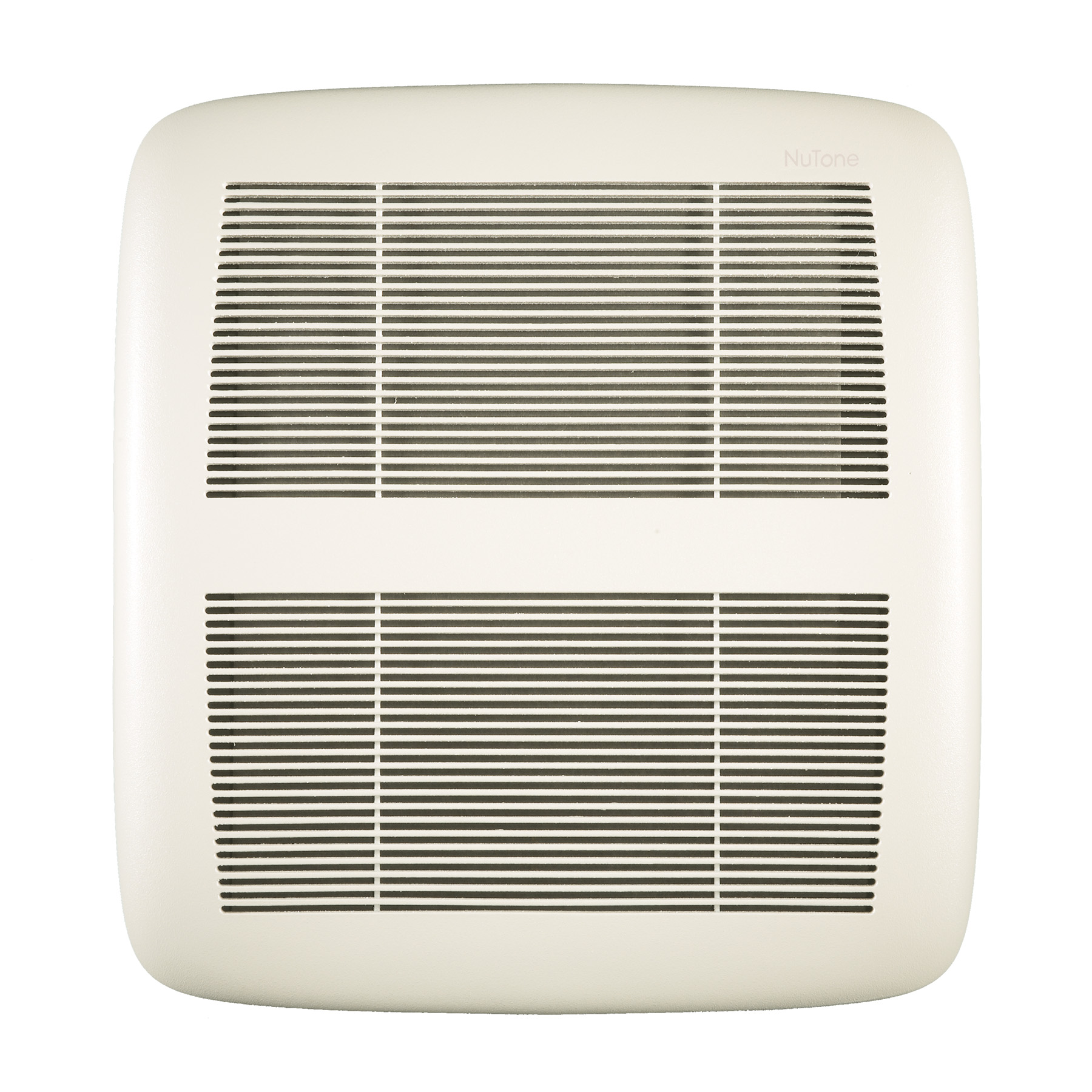

NuTone® QTXE 80 CFM Ventilation Fan with White Grille, 0.3 Sones; ENERGY STAR®
The NuTone® QTX Series Very Quiet 80 CFM Ceiling Exhaust Bath Fan is designed to help reduce moisture and prevent mildew from forming in your bathroom. The fan runs at only 0.3 sones for very quiet operation and is ENERGY STAR® certified for energy efficiency. The fan can be hung over a tub or shower with a GFCI circuit, with hanger bars included for fast and easy installation.
Model:
QTXEN080
Features
- 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 0.3 Sones for Ultra quiet performance, you might not notice it's on
- Includes hanger bar system for fast, flexible installation for all types of construction
- Fits 2" x 8" ceiling construction
- UL Listed for use over bathtubs or showers when connected to a GFCI protected branch circuit
- Features 6" ducting for superior performance
- ENERGY STAR® Certified product
- Powerful enough for rooms up to 75 sq. ft.
- Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
Suggested Installation Accessories
Broan-NuTone® Steel Roof Cap for 6-Inch Round Duct with Backdraft Damper and Bird Screen, Black
Model:
634M
Broan-NuTone® Steel Wall Cap for 6" Round Duct with Backdraft Damper and Bird Screen, Black
Model:
843BL
Flex Duct 6-Inch Insulated (25 ft.)
Model:
DT6W
Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack
Model:
82W
- Specs
- Downloads
| CFM | 80 |
|---|---|
| Color Finish |
|
| Duct Size | 6 |
| ENERGY STAR® certified | Yes |
| Grille Length | 13 |
| Grille Width | 14 |

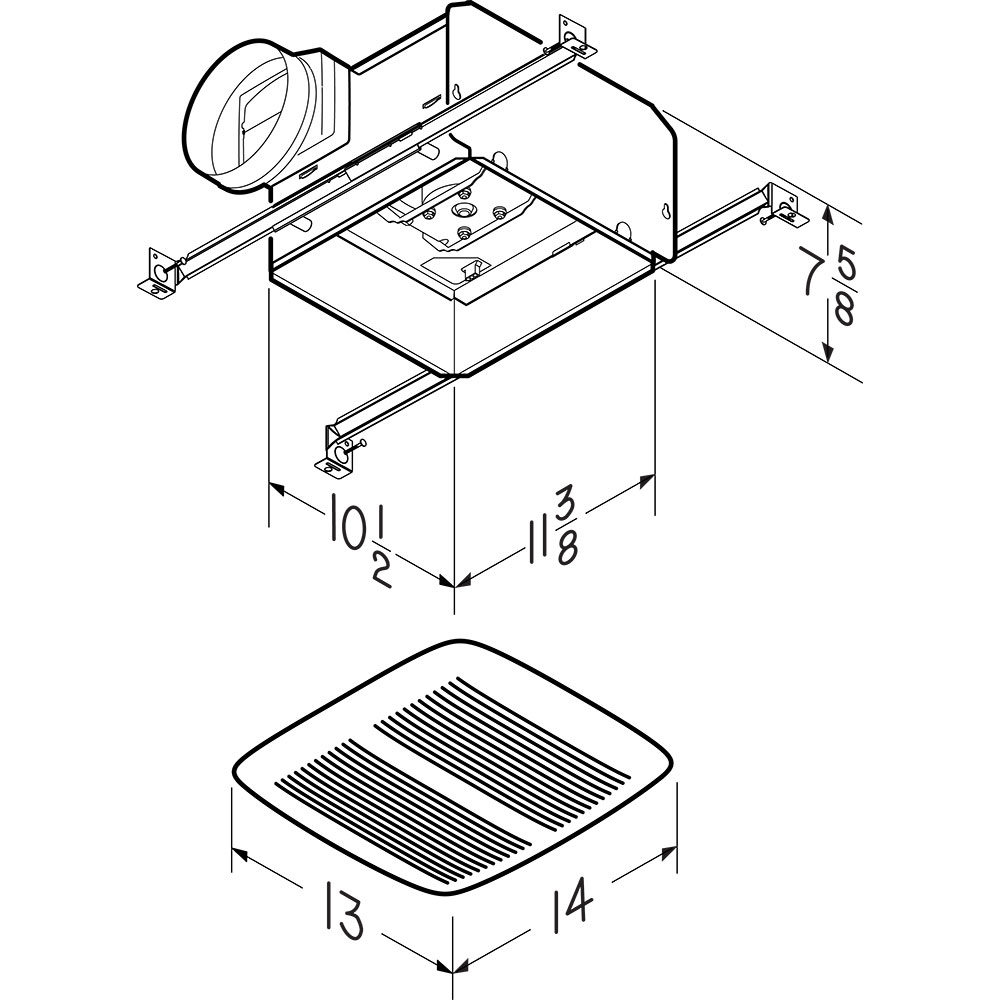

| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
| Sound Level (Sones) | 0.3 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 75 |
| Rated Amps | 0.2 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 8" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
