QT™ Series
Broan® 150 CFM Ventilation Fan Light, 36W Fluorescent Light, 4W Nightlight, ENERGY STAR®
The Broan® QTX Series Quiet 150 CFM Ceiling Exhaust Bath Fan with Light and Nightlight, ENERGY STAR® Certified ventilation and lighting solution. With bright and efficient fluorescent lighting, the fan/light uses 65% less energy, on average, than standard models. Operating at a quiet 1.4 sones, the QTXE150FLT provides powerful ventilation beautifully with its low-profile white grille that will complement any bath or powder room. The fan/light is UL Listed for use over a bathtub or shower when connected to a GFCI (Ground Fault Circuit Interrupter) protected branch circuit, and fits 2 in. x 8 in. ceiling construction. Duct with 6 in. round ducting. Optional wall control and builder packs are available.
Model:
QTXE150FLT
Features
- 150 CFM, Powerful ventilation designed for larger rooms or master baths, eliminates moisture, pollutants, and odors from larger rooms
- 1.4 Sones for Quiet performance, enough sound to know your fan is on
- Includes hanger bar system for fast, flexible installation for all types of construction
- Fits in 2" x 8" ceiling construction
- UL Listed for use over bathtubs or showers when connected to a GFCI protected branch circuit
- Features 6" ducting for superior performance
- ENERGY STAR® Certified to meet or exceed federal guidelines for energy efficiency for year-round energy and money savings
- UL listed for use in insulated ceilings (Type IC)
- Powerful enough for rooms up to 140 sq. ft.
- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
Suggested Installation Accessories
Broan-NuTone® Steel Roof Cap for 6-Inch Round Duct with Backdraft Damper and Bird Screen, Black
Model:
634M
Broan-NuTone® Steel Wall Cap for 6" Round Duct with Backdraft Damper and Bird Screen, Black
Model:
843BL
Flex Duct 6-Inch Insulated (25 ft.)
Model:
DT6W
Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack
Model:
82W
- Specs
- Downloads
| CFM | 150 |
|---|---|
| Color Finish |
|
| Duct Size | 6 |
| ENERGY STAR® certified | Yes |
| Grille Length | 13 |
| Grille Width | 13.75 |

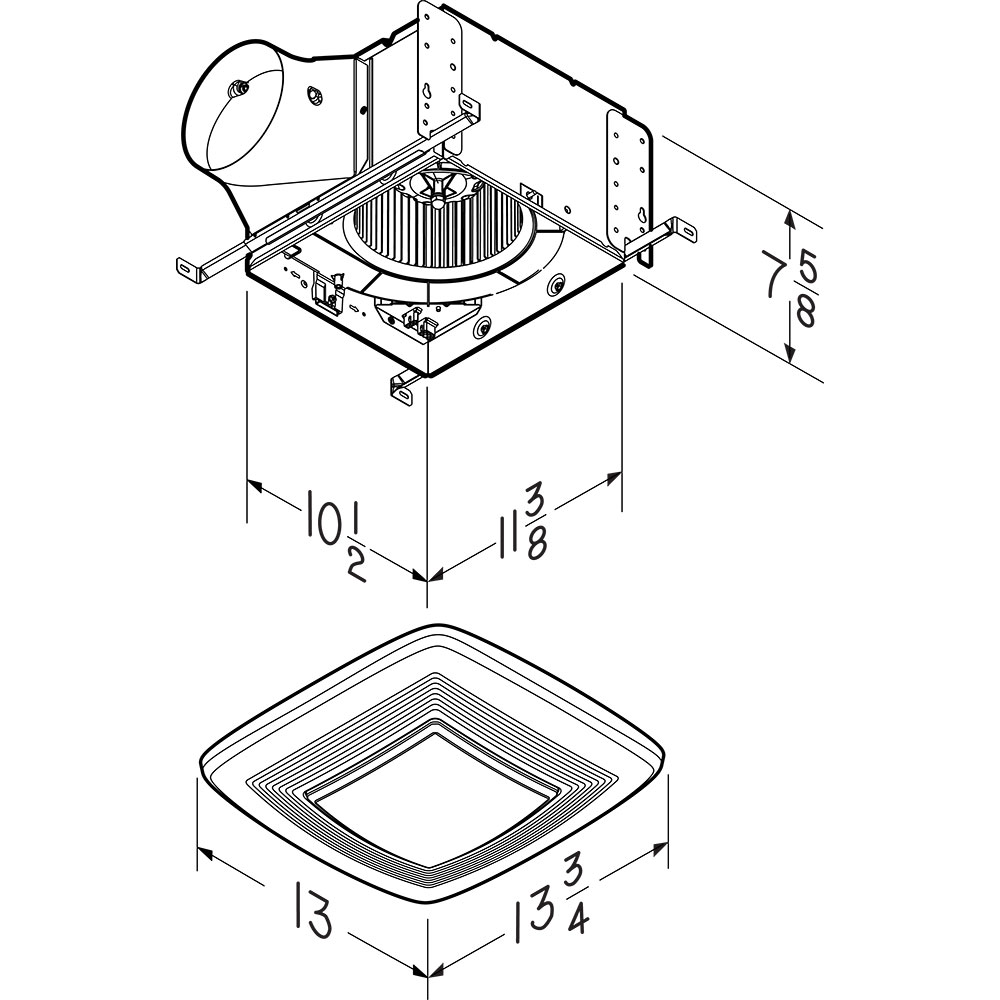

| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
| Sound Level (Sones) | 1.4 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 2 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | Yes |
| Radiation Damper Available | Yes |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 140 |
| Rated Amps | 1 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | GU24 and C7 |
| Minimum Construction Space Required | 2" x 8" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
