QT™ Series

Broan® QTXE Series 150 CFM Ventilation Fan, 1.4 Sones; ENERGY STAR® Certified

The Broan® QTX Series Quiet 150 CFM Ceiling Exhaust Bath Fan, ENERGY STAR® Certified helps ventilate your bathroom. The fan features 1.4 sones for quiet operation and vents moisture in bathrooms up to 140 sq. ft. Its permanently lubricated, plug-in motor allows continuous operation and its galvanized steel housing offers durability. Hanger bars are included for easy installation.


Model:

QTXE150

Features

  • 150 CFM, Powerful ventilation designed for larger rooms or master baths, eliminates moisture, pollutants, and odors from larger rooms
  • 1.4 Sones for Quiet performance, enough sound to know your fan is on
  • Includes hanger bar system for fast, flexible installation for all types of construction
  • Fits 2" x 8" ceiling construction
  • UL Listed for use over bathtubs or showers when connected to a GFCI protected branch circuit
  • Features 6" ducting for superior performance
  • ENERGY STAR® Certified to meet or exceed federal guidelines for energy efficiency for year-round energy and money savings
  • Powerful enough for rooms up to 140 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation

Suggested Installation Accessories

Broan-NuTone® Steel Roof Cap for 6-Inch Round Duct with Backdraft Damper and Bird Screen, Black

Broan-NuTone® Steel Roof Cap for 6-Inch Round Duct with Backdraft Damper and Bird Screen, Black

Model:

634M

Broan-NuTone® Wall Cap, Steel, Black, 6-Inch Round Duct

Broan-NuTone® Wall Cap, Steel, Black, 6-Inch Round Duct

Model:

843BL

Flex Duct 6-Inch Insulated (25 ft.)

Flex Duct 6-Inch Insulated (25 ft.)

Model:

DT6W

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Model:

82W

  • Specs
  • Downloads

print

CFM 150
Color Finish
Duct Size 6
ENERGY STAR® certified Yes
Grille Length 13
Grille Width 13.75

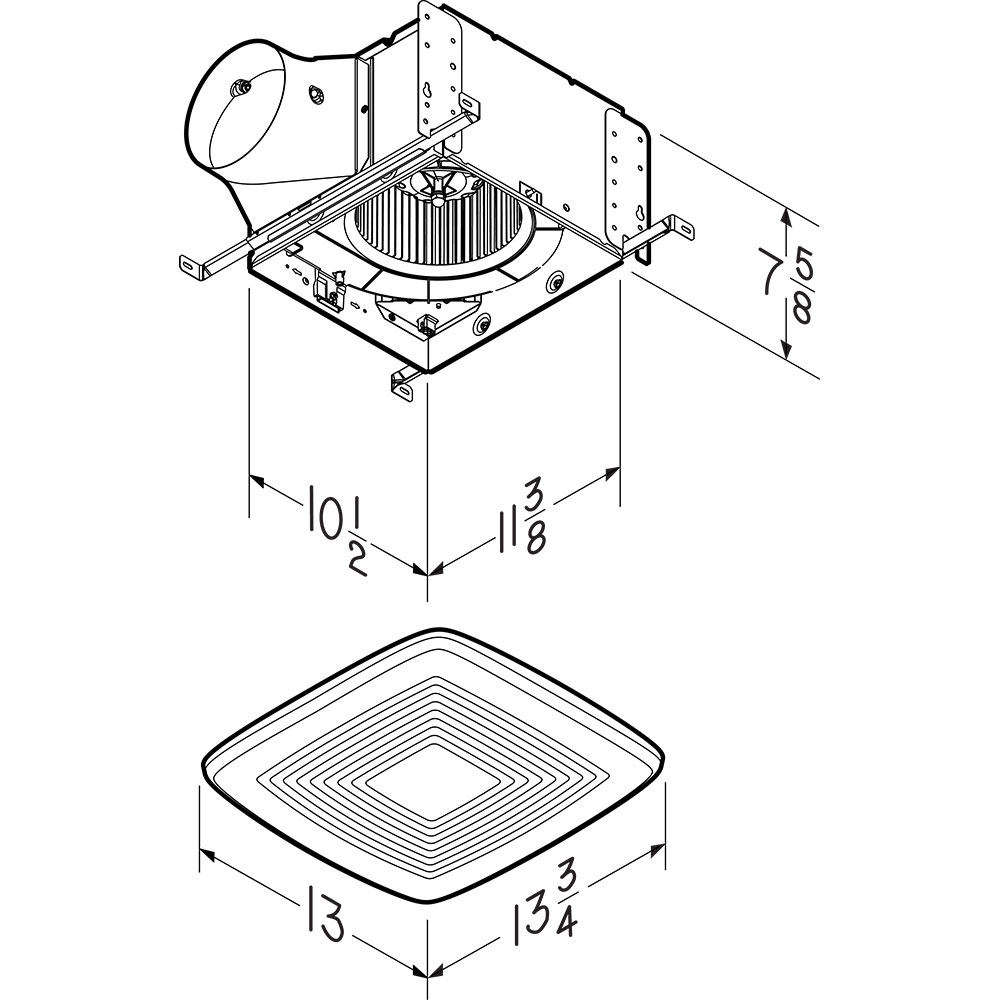

Housing Dimensions 10-1/2" x 11-3/8" x 7-5/8"
UL Listed Yes
Grille Finish White
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available Yes
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 140
Rated Amps 0.5
Voltage 120
Can Be Used To Comply With Title 24 No
Minimum Construction Space Required 2" x 8"
Manufacturer Warranty 3 Years
