QT DC™ Series

Broan® Humidity Sensing Exhaust Ventilation Fan w/ LED Light, 110-130-150 Selectable CFM, ENERGY STA

The Broan® QT DC line of fans offers powerful airflow, with exceptional performance, and ultra-quiet sound. The DC motor is selectable between 110, 130, and 150 CFM. The QT DC also offers ultra-quiet sound ratings, producing only 0.7 sones at 150 CFM. This line of fans is the perfect combination of performance, efficacy, and silent operation.


Model:

QTXE110150DCSL

Features

  • Selectable CFM with speeds of 110-130-150
  • Quiet operation of <0.3-0.4-0.7 sones
  • DC motor helps maintain static pressure to ensure installed performance
  • Motor engineered for continuous operation
  • ENERGY STAR® Certified
  • Hanger bars to position housing anywhere on center joists
  • Highly energy efficient integrated LED light that is dimmable
  • Humidity sensing capability to properly ventilate the room
  • Rugged, galvanized steel construction to withstand moisture
  • Unique patented spacers for mounting to engineered "I" joists
  • UL listed for use in insulated ceilings (Type IC)
  • UL listed for use over bathtubs and showers when connected to GFCI protected branch circuit
Product Selected ENERGY STAR® Most Efficient 2020

Product Selected ENERGY STAR® Most Efficient 2020

Products that are recognized as the Most Efficient of ENERGY STAR in 2020 prevent greenhouse gas emissions by meeting rigorous energy efficiency performance levels set by the U.S. Environmental Protection Agency

See Product List

Suggested Installation Accessories

Broan-NuTone® Steel Roof Cap for 6-Inch Round Duct with Backdraft Damper and Bird Screen, Black

Broan-NuTone® Steel Roof Cap for 6-Inch Round Duct with Backdraft Damper and Bird Screen, Black

Model:

634M

Broan-NuTone® Wall Cap, Steel, Black, 6-Inch Round Duct

Broan-NuTone® Wall Cap, Steel, Black, 6-Inch Round Duct

Model:

843BL

Flex Duct 6-Inch Insulated (25 ft.)

Flex Duct 6-Inch Insulated (25 ft.)

Model:

DT6W

Broan-NuTone® Occupancy Sensor, White

Broan-NuTone® Occupancy Sensor, White

Model:

MS100W

  • Specs
  • Downloads

print

CFM 110-130-150
Color Finish
Duct Size 6
ENERGY STAR® Certified Yes
Grille Length 13.75
Grille Width 14.25

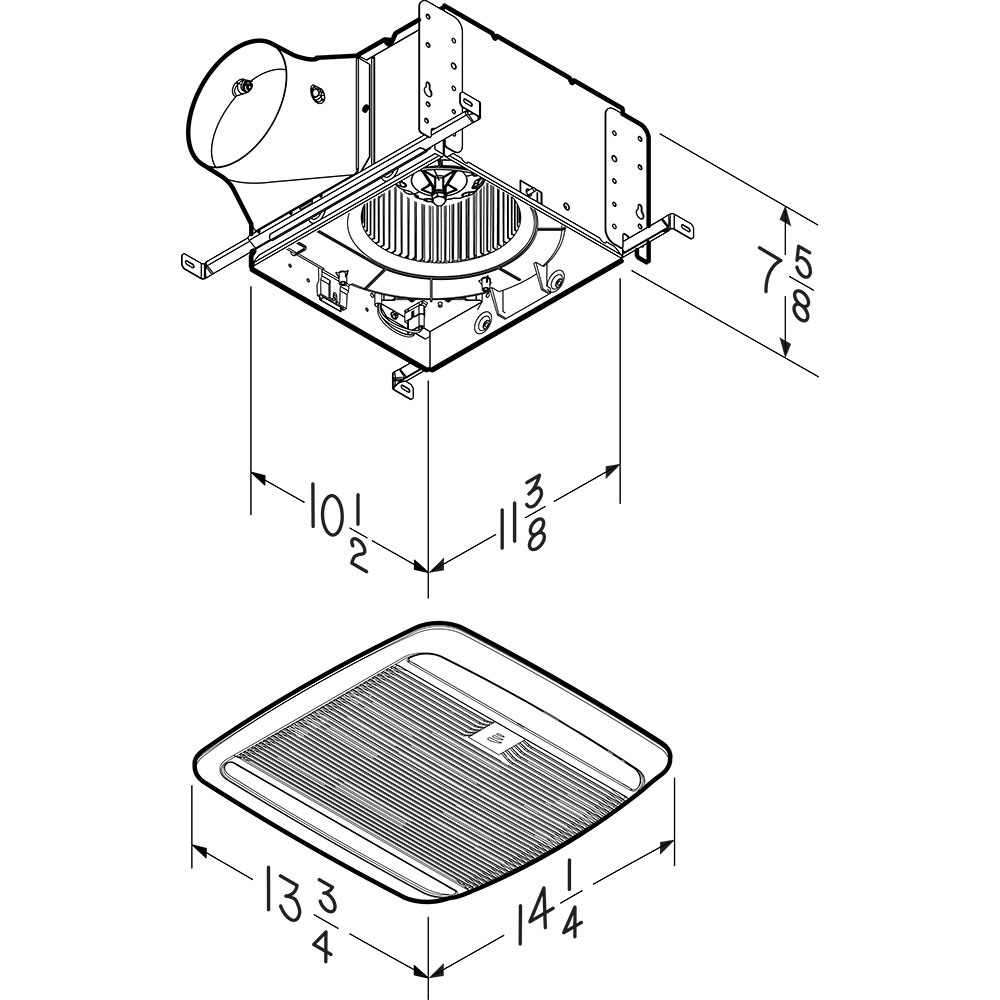

Housing Dimensions 10-1/2" x 11-3/8" x 7-5/8"
UL Listed Yes
Grille Finish White
Humidity Sensing Yes
Light Bulb Quantity 1
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available No
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 105+
Rated Amps 0.5
Voltage 120
Can Be Used To Comply With Title 24 No
Bulb (Recommended Type) Integrated LED Module
Minimum Construction Space Required 2" x 8"
Manufacturer Warranty 3 Years
High Efficiency Luminaire No
