Broan® QT DC™ Series
Broan® Humidity Sensing Ventilation Fan, 110-130-150 Selectable CFM, ENERGY STAR®
The Broan® QT DC line of fans offers powerful airflow, with exceptional performance, and ultra-quiet sound. The DC motor is selectable between 110, 130, and 150 CFM. The QT DC also offers ultra-quiet sound ratings, producing only 0.7 sones at 150 CFM. This line of fans is the perfect combination of performance, efficacy, and silent operation.
Model:
QTXE110150DCS
Features
Compatible with Overture™ Connected IAQ System
ENERGY STAR certified
UL Listed
- Selectable CFM with speeds of 110-130-150
- Quiet operation of <0.3-0.4-0.7 sones
- DC motor helps maintain static pressure to ensure installed performance
- Motor engineered for continuous operation
- ENERGY STAR® Certified
- Hanger bars to position housing anywhere on center joists
- Humidity sensing capability to properly ventilate the room
- User adjustable time delay module when a set point is reached
- Rugged, galvanized steel construction to withstand moisture
- Unique patented spacers for mounting to engineered "I" joists
- UL listed for use over bathtubs and showers when connected to GFCI protected branch circuit
Suggested Installation Accessories
Radiation Damper and Extension Compatible with this Model
Product Selected ENERGY STAR® Most Efficient 2022
Products that are recognized as the Most Efficient of ENERGY STAR in 2022 prevent greenhouse gas emissions by meeting rigorous energy efficiency performance levels set by the U.S. Environmental Protection Agency
See Product List- Specs
- Downloads
| CFM | 110-130-150 |
|---|---|
| Color Finish |
|
| Duct Size | 6 |
| ENERGY STAR® certified | Yes |
| Grille Length | 13.125 |
| Grille Width | 14 |

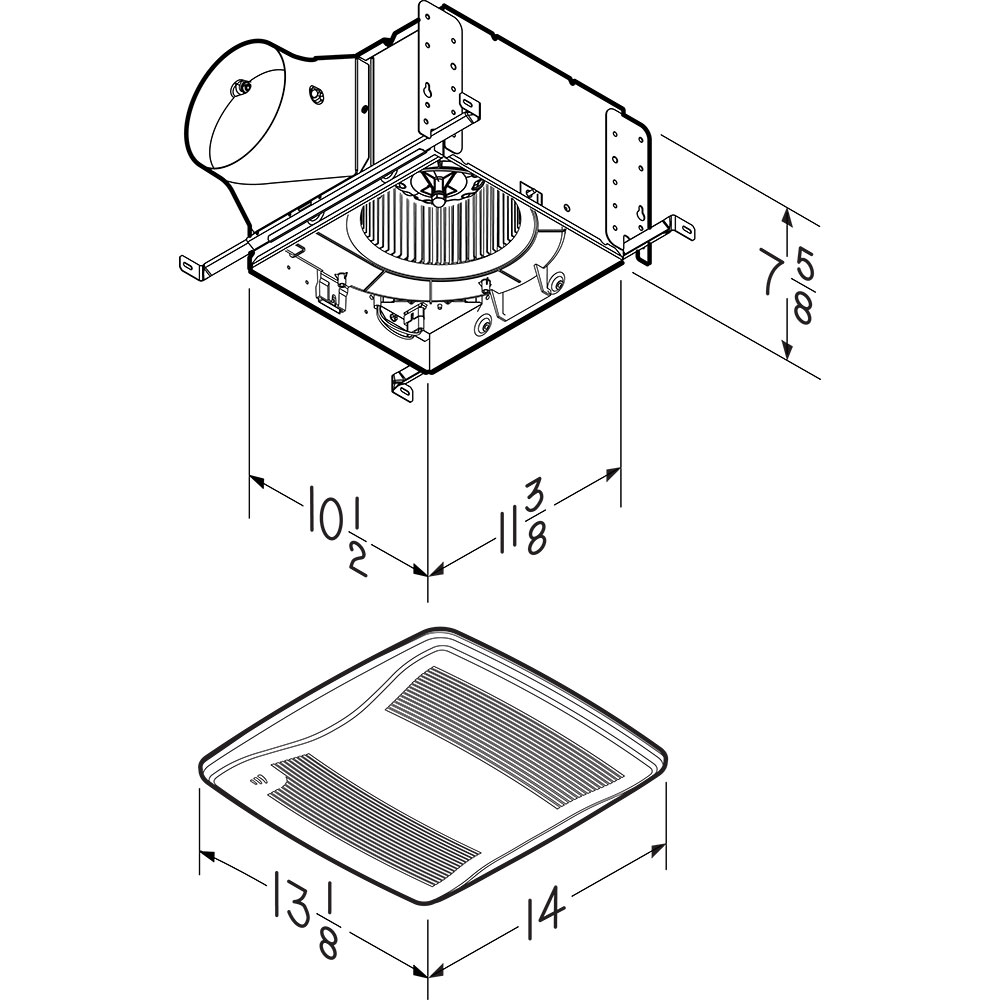

| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
| Sound Level (Sones) | 0.7 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | Yes |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 105+ |
| Rated Amps | 0.5 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 8" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
