QTXE™ Series Fan/Light

Broan® QTXE Series 80 CFM Ventilation Fan Light, 36W Fluorescent Lighting, 4W Nightlight, 0.3 Sones;

The Broan® QTX Series Very Quiet 80 CFM Ceiling Exhaust Bath Fan with Light, ENERGY STAR® Certified to ventilate your bathroom. It is capable of managing moisture in bathrooms up to 70 sq. ft. and comes with adjustable mounting brackets spanning up to 24 in. Designed with a continuously operating motor at only 0.3 sones for an extremely quiet operation.


Model:

QTXE080FLT

Features

  • 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • 0.3 Sones for Ultra quiet performance, you might not notice it's on
  • Includes hanger bar system for fast, flexible installation for all types of construction
  • Fits 2" x 8" ceiling construction
  • UL Listed for use over bathtubs or showers when connected to a GFCI protected branch circuit
  • Features 6" ducting for superior performance
  • ENERGY STAR® Certified for energy efficient operation
  • HVI certified
  • Can be used to comply with CA Title 24
  • Powerful enough for rooms up to 75 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation

Suggested Installation Accessories

Broan-NuTone® Steel Roof Cap for 6-Inch Round Duct with Backdraft Damper and Bird Screen, Black

Broan-NuTone® Steel Roof Cap for 6-Inch Round Duct with Backdraft Damper and Bird Screen, Black

Model:

634M

Broan-NuTone® Steel Wall Cap for 6" Round Duct with Backdraft Damper and Bird Screen, Black

Broan-NuTone® Steel Wall Cap for 6" Round Duct with Backdraft Damper and Bird Screen, Black

Model:

843BL

Flex Duct 6-Inch Insulated (25 ft.)

Flex Duct 6-Inch Insulated (25 ft.)

Model:

DT6W

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Model:

82W

  • Specs
  • Downloads

print

CFM 80
Color Finish
Duct Size 6
ENERGY STAR® certified Yes
Grille Length 13
Grille Width 13.75

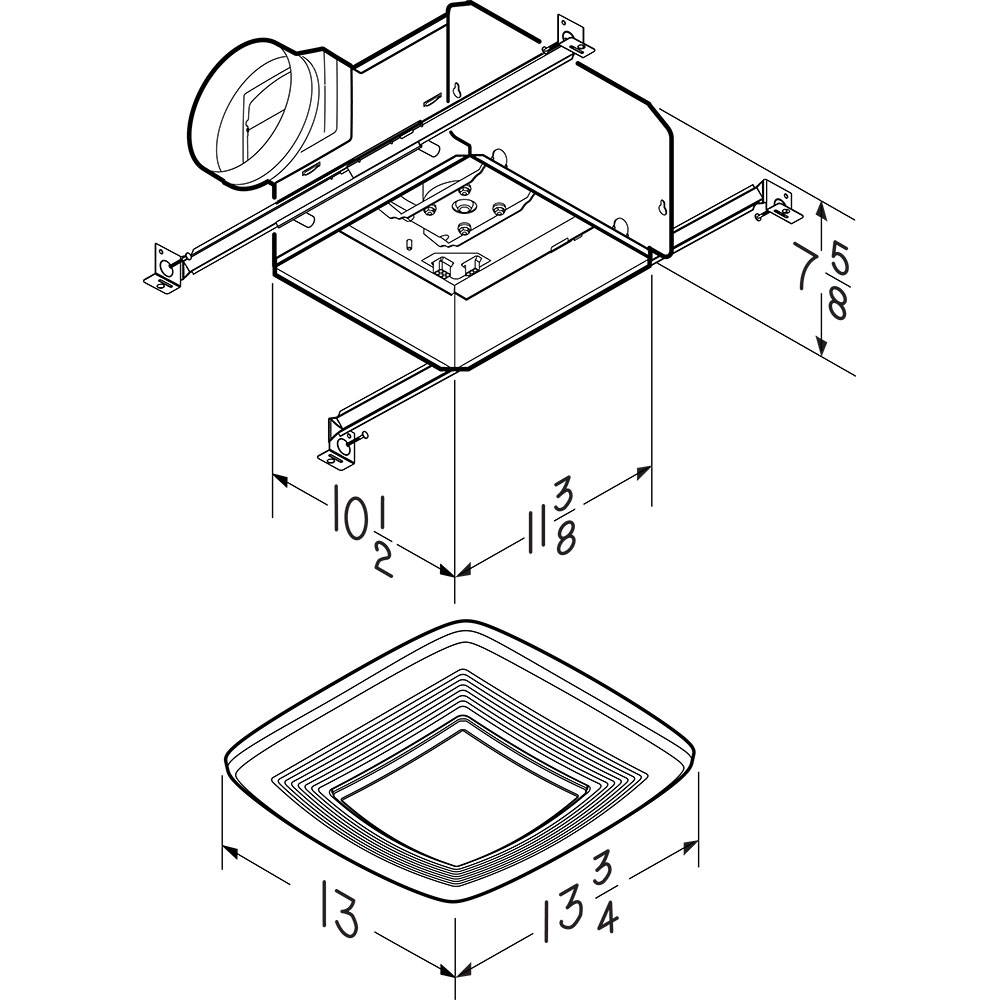

Housing Dimensions 10-1/2" x 11-3/8" x 7-5/8"
UL Listed Yes
Grille Finish White
Humidity Sensing No
Light Bulb Quantity 2
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light Yes
Radiation Damper Available Yes
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 75
Rated Amps 0.8
Voltage 120
Can Be Used To Comply With Title 24 No
Bulb (Recommended Type) GU24, C7
Minimum Construction Space Required 2" x 8"
Manufacturer Warranty 3 Years
High Efficiency Luminaire Yes
