Heater Combinations

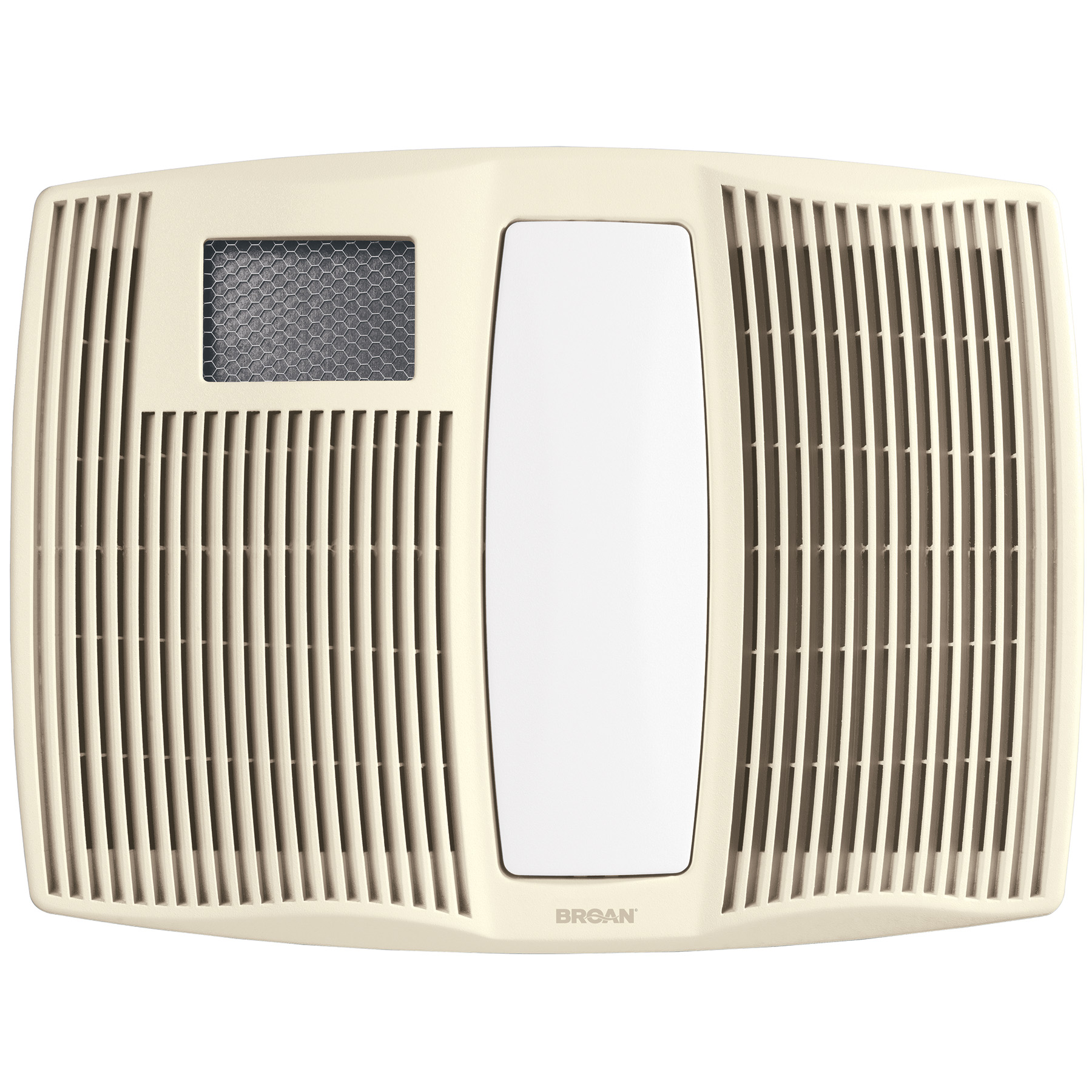

Broan® QT Series 110 CFM Ventilation Fan with 1500W heater, 2-60W incandescent light and 7W night-li
The Broan® QTX Series Very Quiet 110 CFM Ceiling Exhaust Bath Fan with Light and Heater helps prevent mildew in your bathroom. Ideal for bathrooms up to 105 sq. ft., the fan features 0.9 sones for an ultra-quiet operation and includes a 1,500-watt heater with exclusive PowerHeat™ design for a quiet, high-output performance. Its galvanized steel housing offers durability while its white grille will complement many types of decor.
Model:
QTX110HL
Features
- 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 0.9 Sones for Ultra quiet performance, you might not notice it's on
- Uses two bulbs (select your bulb up to 60W) for bright illumination and a 7-watt night-light for safety (bulbs not included)
- 1,500-watt heater with exclusive PowerHeat™ design quiet, high-output performance
- Automatic-reset thermal protection
- Fits in 2" x 8" ceiling construction
- Rugged galvanized steel housing stands up to moisture
- UL listed and HVI-2100 Certified for safety
Suggested Installation Accessories
Broan-NuTone® Steel Roof Cap for 6-Inch Round Duct with Backdraft Damper and Bird Screen, Black
Model:
634M
Broan-NuTone® Steel Wall Cap for 6" Round Duct with Backdraft Damper and Bird Screen, Black
Model:
843BL
Flex Duct 6-Inch Insulated (25 ft.)
Model:
DT6W
Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack
Model:
82W
- Specs
- Downloads
| CFM | 110 |
|---|---|
| Color Finish |
|
| Duct Size | 6 |
| ENERGY STAR® certified | No |
| Grille Length | 20 |
| Grille Width | 15 |

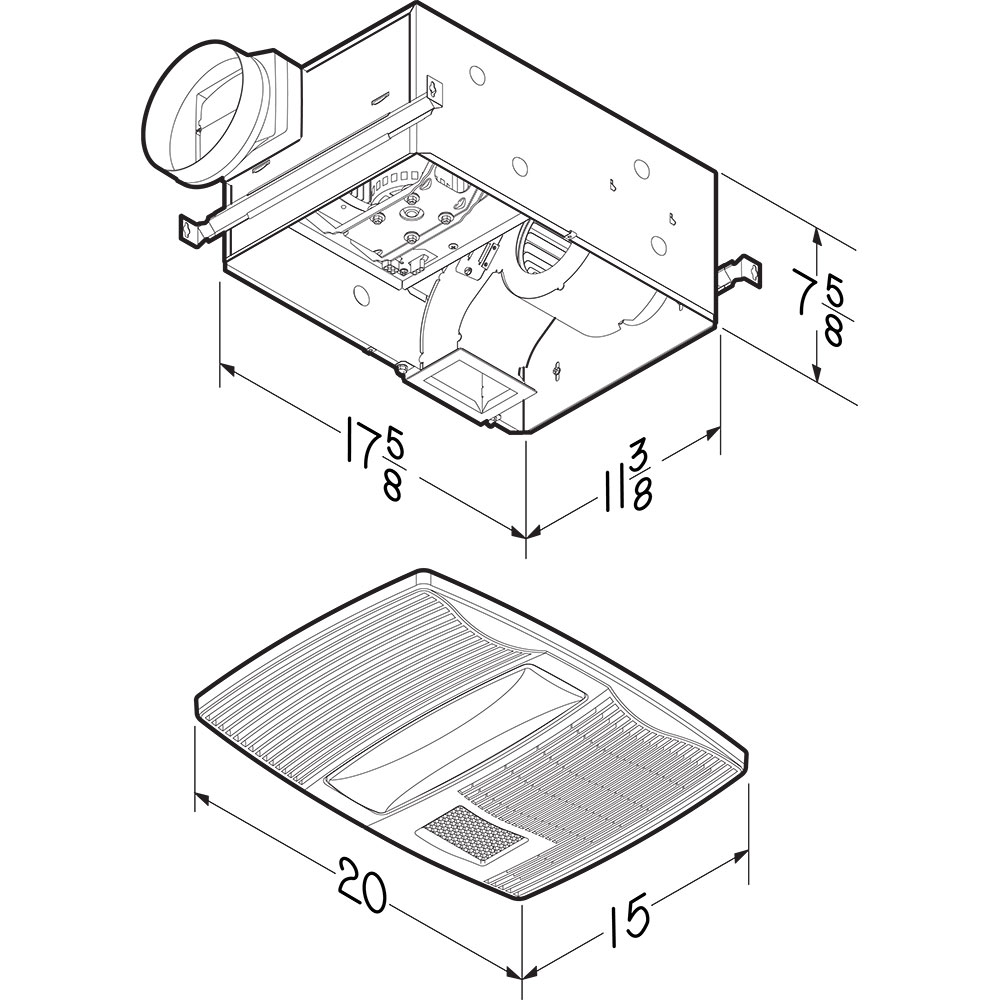

| Housing Dimensions | 17-5/8" x 11-3/8" x 7-5/8" |
| Sound Level (Sones) | 0.9 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 2 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | Yes |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
| Heater Wattage | 1500 |
| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 14.6 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | 60W and 7W |
| Minimum Construction Space Required | 2" x 8" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
