QT™ Series

Broan® 140 CFM Ventilation Fan Light with Night LightQuiet Bathroom Fan/Light/Night Light, ENERGY ST

With the development of the QT Series™, Broan® has created a bath fan that doesn’t call attention to itself either aesthetically or with its noise level. With an energy efficient option, our QT bath fans continuously improve air flow, reduce moisture and prevent mold and mildew.


Model:

QT140LE

Features

  • 140 CFM, Powerful ventilation designed for larger rooms or master baths, eliminates moisture, pollutants, and odors from larger rooms
  • 1.5 Sones for Quiet performance, enough sound to know your fan is on.
  • Energy efficient lighting - (2) 18W (max.) high efficiency, type GU24 based fluorescent bulbs (included), and 4W (max.) type C7 night light bulb (included)
  • Includes hanger bar system for fast, flexible installation for all types of construction
  • Fits 2" x 8" ceiling construction
  • UL Listed for use over bathtubs or showers when connected to a GFCI protected branch circuit
  • Features 6" ducting for superior performance
  • ENERGY STAR® Certified for cost efficient savings
  • Powerful enough for rooms up to 130 sq. ft.
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation

Suggested Installation Accessories

Broan-NuTone® Steel Roof Cap for 6-Inch Round Duct with Backdraft Damper and Bird Screen, Black

Broan-NuTone® Steel Roof Cap for 6-Inch Round Duct with Backdraft Damper and Bird Screen, Black

Model:

634M

Broan-NuTone® Steel Wall Cap for 6" Round Duct with Backdraft Damper and Bird Screen, Black

Broan-NuTone® Steel Wall Cap for 6" Round Duct with Backdraft Damper and Bird Screen, Black

Model:

843BL

Flex Duct 6-Inch Insulated (25 ft.)

Flex Duct 6-Inch Insulated (25 ft.)

Model:

DT6W

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Model:

82W

  • Specs
  • Downloads

print

CFM 140
Color Finish
Duct Size 6
ENERGY STAR® certified Yes
Grille Length 13
Grille Width 14

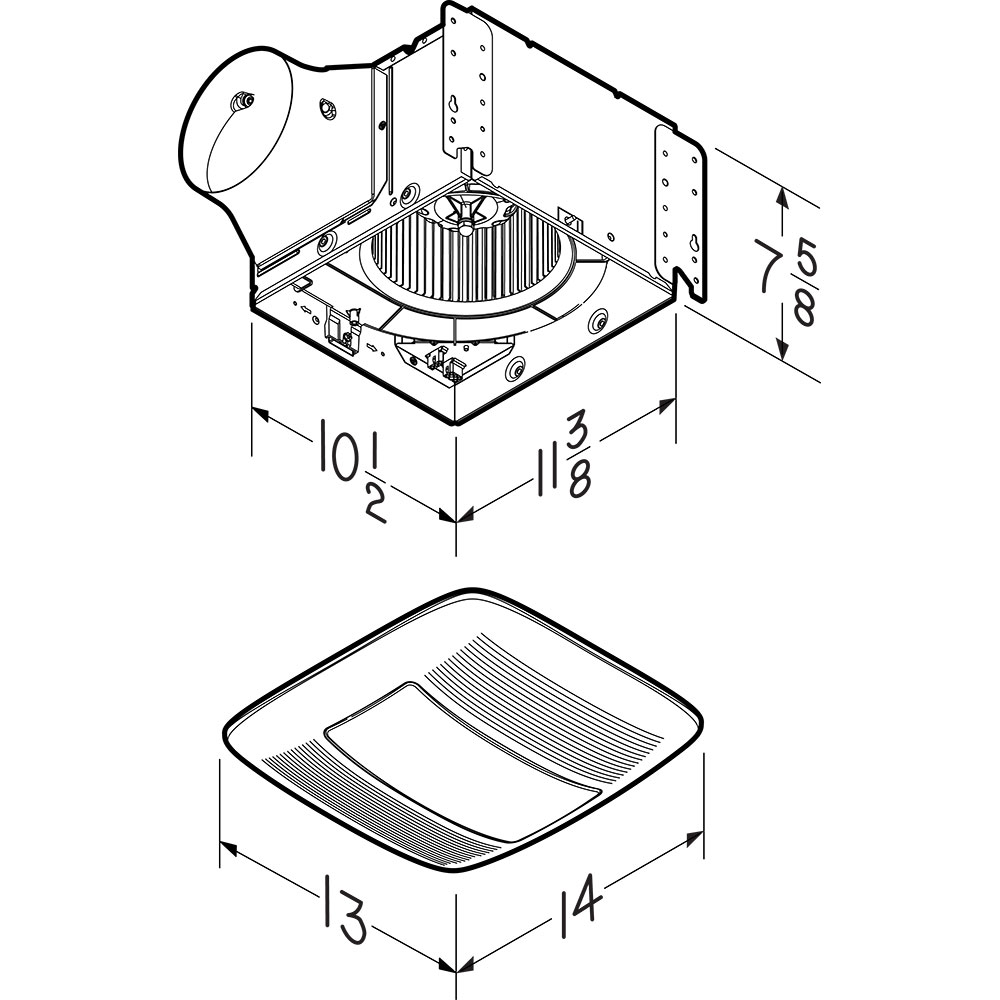

Housing Dimensions 10-1/2" X 11-3/8" X 7-5/8"
UL Listed Yes
Grille Finish White
Humidity Sensing No
Light Bulb Quantity 3
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light Yes
Radiation Damper Available Yes
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 140
Rated Amps 1.4
Voltage 120
Can Be Used To Comply With Title 24 No
Bulb (Recommended Type) 18W GU24 and 4W C7
Minimum Construction Space Required 2" x 8"
Manufacturer Warranty 3 Years
High Efficiency Luminaire No
