LoProfile™ Series
Broan-NuTone Lo-Profile DC Series 50-80-100 Selectable CFM Finish Pack, <0.3, 0.7, 1.0 Sones, ENERGY STAR® Certified

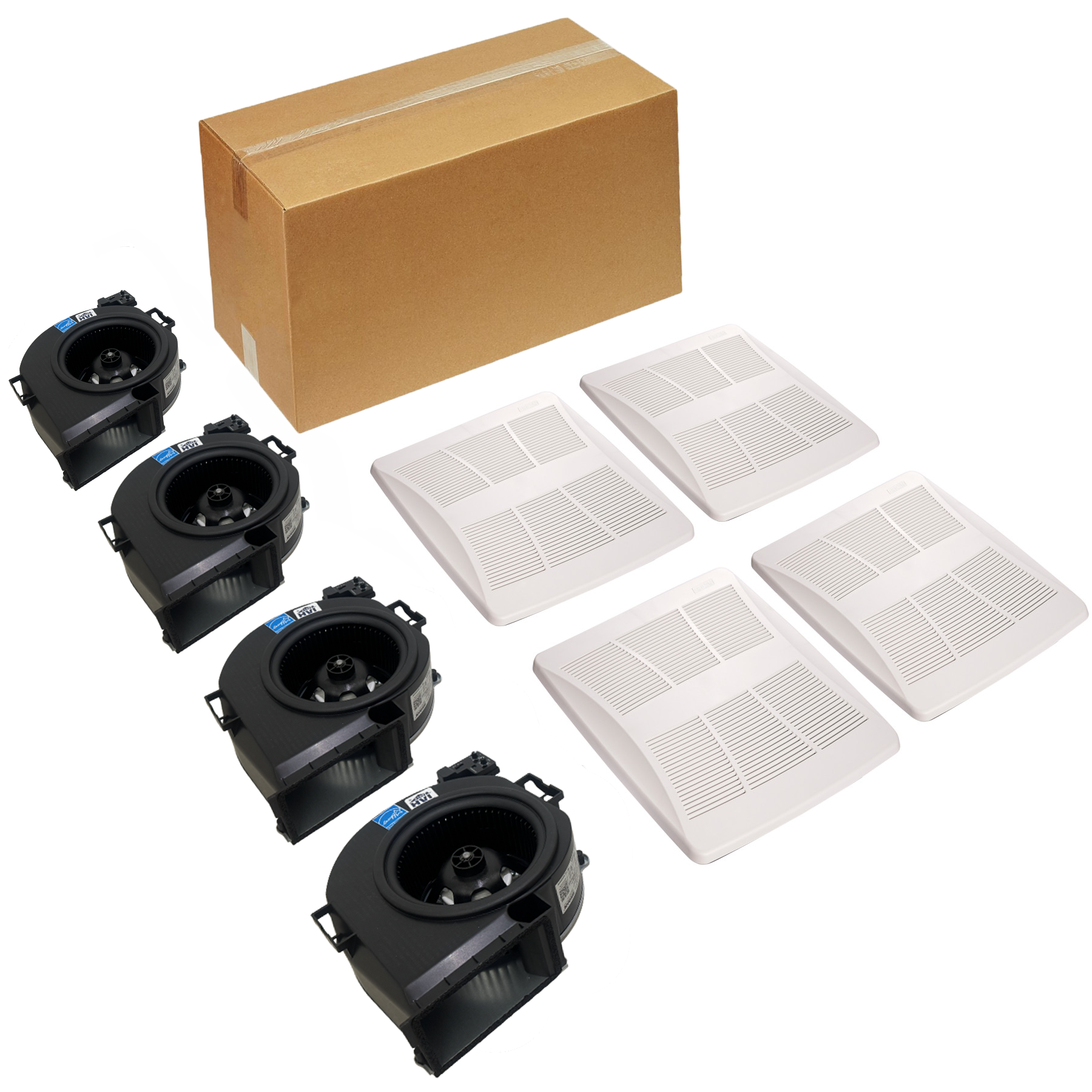

The Broan-NuTone® LoProfile™ Project pack is designed for contractors, builders and multifamily construction projects that need installation flexibility before final product selections are made. By separating the fan housing from the finished components, construction can continue without concerns about damaging, losing or storing the product too early in the project. The project pack includes the LoProfile fan housing, allowing rough-in installation during construction. Once the project is complete and interiors are ready for finishing, a corresponding finish pack, including grilles and motor/blower assemblies can be installed quickly to complete the ventilation system Finish packs consist of, 4 grilles and 4 motor/blower wheels. The Broan-NuTone LoProfile Fan is engineered for applications where traditional bathroom exhaust fans cannot fit. Its ultra-low-profile design installs between standard 2x4 studs, making it an ideal ventilation solution for multifamily housing, apartments, condominiums, townhomes, and other space-constrained residential projects. Designed for installation versatility, the fan features selectable 50, 80, and 100 CFM airflow settings to meet a variety of ventilation requirements. A pre-installed continuous run function allows occupants or installers to set low-speed operation from 30 to 100 CFM, supporting improved indoor air quality and compliance with modern ventilation standards.
Model:
LP510RF2
Features
Selectable 50 / 80 / 100 CFM airflow plus continuous run capability, providing versatile whole-home and spot ventilation solutions with a single SKU.
Delivers consistent airflow through complex duct runs, helping reduce callbacks and rework. Engineered to perform at 0.4 w.g. static pressure.
User-friendly controller features a convenient side switch and adjustment knob for faster setup and commissioning and airflow adjustments.
Enhanced motor and blower design delivers improved sone performance for quieter, more comfortable operation compared to previous generations.
Meets ASHRAE 62.2 and are ENERGY STAR® certified, simplifying specifications, code-compliance and project installations.
Designed for multifamily, residential, and high-density housing projects where space constraints, code compliance, and installation efficiency are critical.
Built-In Humidity Sensor automatically detects rapid increases in moisture to help manage humidity and improve indoor air quality.
Backed by an improved 5 year warranty for long-term reliability and added peace of mind.
Low-profile housing fits between 2x4 studs —making it ideal for multifamily projects, renovations and other tight ceiling or wall cavity applications
Housing and finish packs sold separately
- Compatible with LPRH2 housings only
| CFM | 50-80-100 |
|---|---|
| Color Finish |
|
| ENERGY STAR® certified | Yes |
| Grille Length | 13 |
| Grille Width | 13.75 |
| Housing Dimensions | 10.25" x 10.25" x 3.375" |
| Sound Level (Sones) | 0.3-0.7-1.0 |
| UL Listed | Yes |

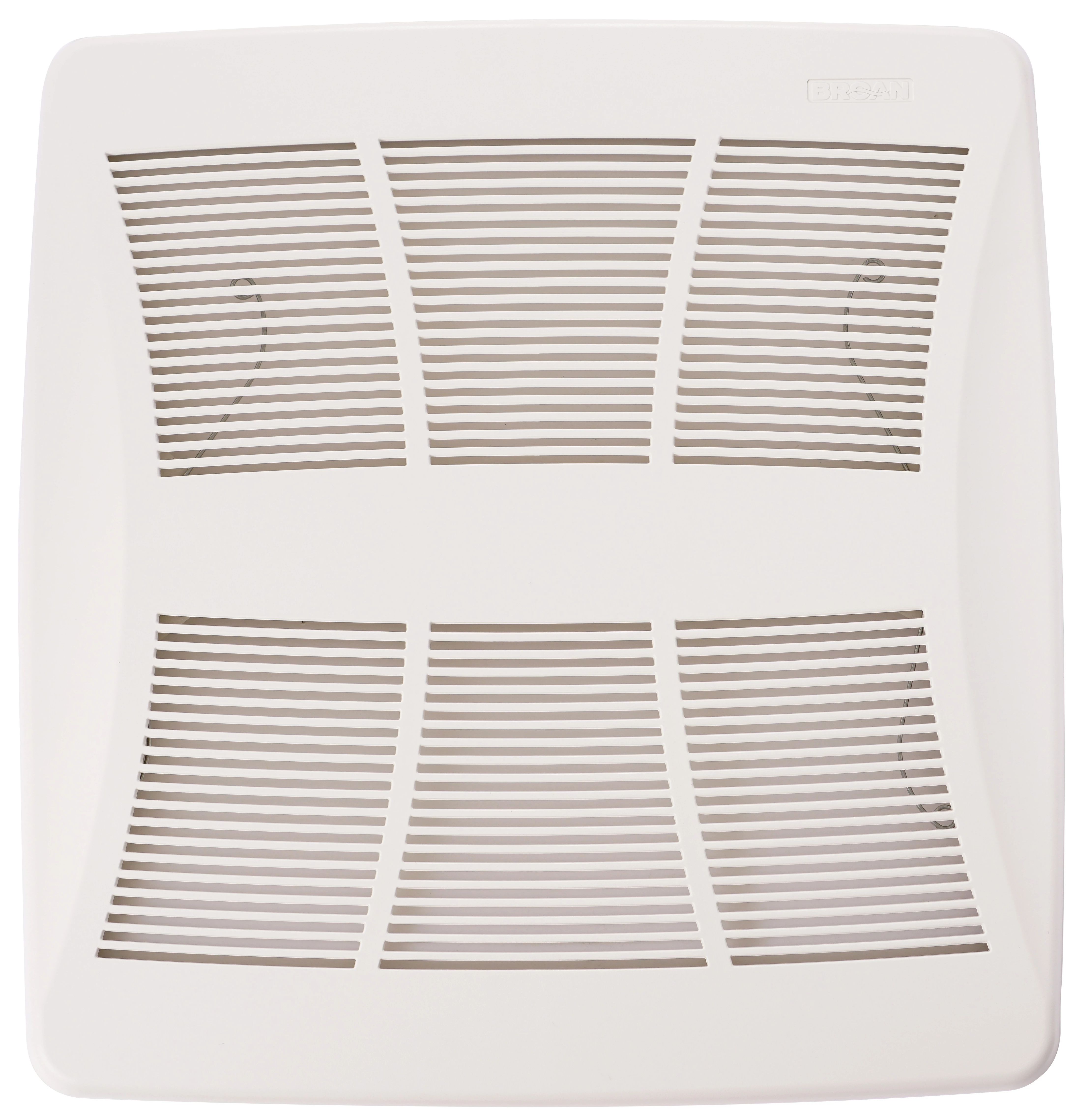

| Grille Finish | Plastic |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Recommended Room Size (Sq Ft) | 90 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 4" |
| Manufacturer Warranty | 5 Years |
| High Efficiency Luminaire | No |
