EZFit™ Series Ventilation Fans

NuTone® EZFit 80 CFM Ventilation Fan, 1.0 Sones; ENERGY STAR® Certified

Every feature of the NuTone® EZ80N EZFit Ventilation Fan is carefully devised for easy installation from the room side, without having to go into the attic. Pulling air efficiently at 80 CFM, this ENERGY STAR®-certified fan operates at a super-quiet sound level of 1.0 sone for a peaceful environment. Boasting a white polymeric grille that blends seamlessly with most decor, this bathroom vent fan installs directly to the ceiling material or to ceiling joists or trusses. It can be placed safely over a bathtub or shower if connected in a GFCI branch circuit.




  • 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • 1.0 Sones for Quiet performance, enough sound to know your fan is on
  • Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation
  • EzDuct™ Connector can be installed room-side with no attic access required
  • EZ Connect wiring connectors eliminate clumsy wire nuts
  • EZ Hold pre-installed blower attachment screws mean no third hand is needed
  • Slim housing design fits in virtually all ceiling spaces
  • EZ Lock tabs secure fan directly to drywall eliminating need for joist/truss mounting
  • ENERGY STAR® certified ventilation fan
  • UL listed and HVI-2100 Certified for safety
  • UL listed for use over tub or shower with a GFCI branch circuit (ceiling mount only)
  • Powerful enough for rooms up to 75 sq. ft.
  • Permanently lubricated AC motor engineered for continuous operation
  • Specs
  • Downloads


CFM 80
Color Finish
Duct Size 4
ENERGY STAR® certified Yes
Grille Length 14.375
Grille Width 13

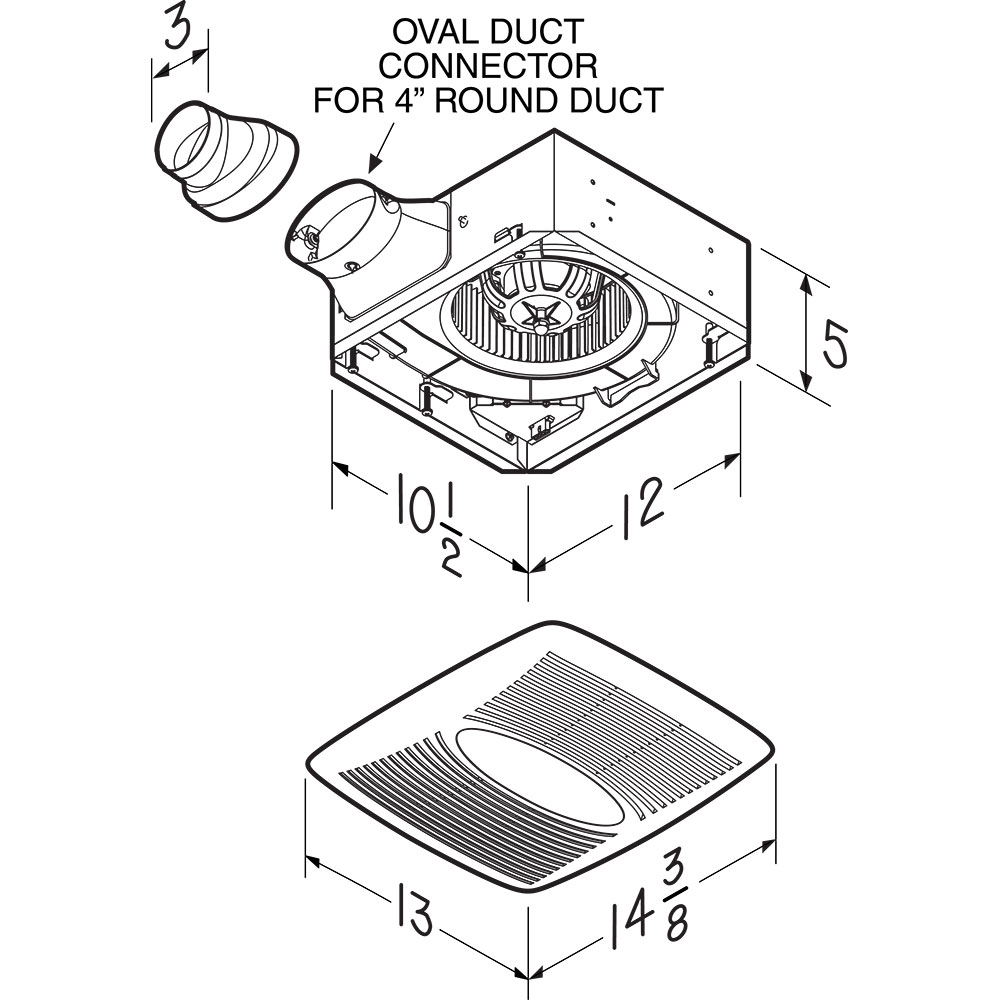

Housing Dimensions 12" x 10-1/2" x 5"
Sound Level (Sones) 1
UL Listed Yes
Grille Finish White
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available No
Room Side Installation Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 65
Rated Amps 0.3
Voltage 120
Can Be Used To Comply With Title 24 No
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 1 Year
High Efficiency Luminaire No
