Broan® Roomside Series
Broan® Roomside Series 80 CFM 1.0 Sones Ventilation Fan Light
Clear up foggy mirrors, whisk away odors and enjoy a more comfortable bathroom in minutes. The Broan® AR80LX Roomside Series White Exhaust Bath Fan with Light moves air at a brisk 80 CFM to quickly reduce moisture and humidity. Boasting a superior sound rating of just 1.0 sones, this fan does the job quietly and unobtrusively. Broan® Roomside Series fans offer hassle-free room-side installation with no attic access needed.
Model:
AR80LX
Features
- 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 0.8 Sones for Ultra quiet performance, you might not notice it's on
- Bright 100-watt incandescent lighting (uses one A19 bulb, not included)
- EzDuct™ connector can be installed from the room side, with no attic access required
- Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
- TrueSeal™ Damper technology reduces air leakage up to 50%
- UL listed and HVI-2100 Certified for safety
- UL listed for use over tub or shower with a GFCI branch circuit (ceiling mount only)
- Powerful enough for rooms up to 75 sq. ft.
- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
Suggested Installation Accessories
Broan-NuTone® Wall Vent Kit, 3" or 4" Round Duct
Model:
WVK2A
Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.
Model:
RVK1A
Flex Duct, 4-Inch, Insulated (25 ft.)
Model:
DT4W
Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack
Model:
82W
- Specs
- Downloads
| CFM | 80 |
|---|---|
| Color Finish |
|
| Duct Size | 4 |
| ENERGY STAR® certified | No |
| Grille Length | 11.5 |
| Grille Width | 12.125 |

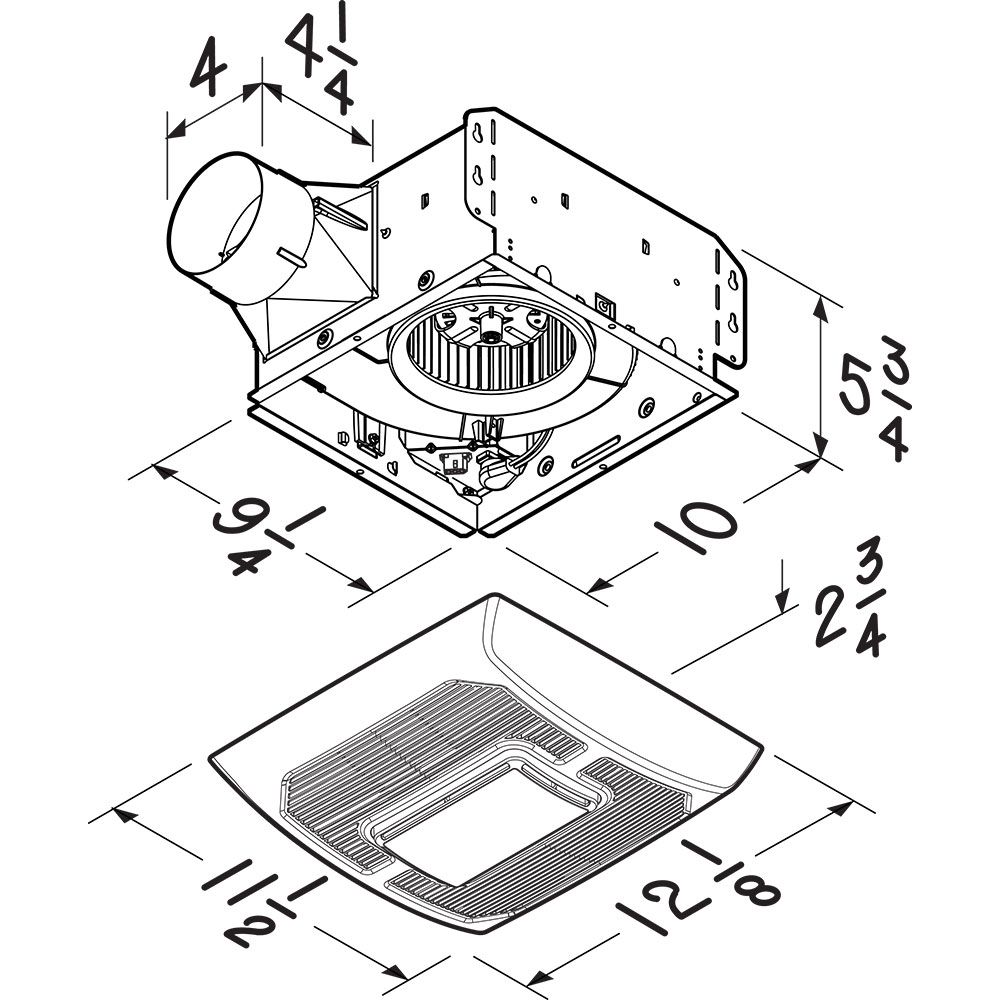

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 1 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 75 |
| Rated Amps | 1.2 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | A19 |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
