SurfaceShield™ Roomside Fan

Broan® SurfaceShield™ Exhaust Fan w/ LED and Vyv™ Antimicrobial Virus Killing* Violet Light, 110 CFM

SurfaceShield™ technology combined with Broan-NuTone’s powerful ventilation Kills* Viruses and offers effective protection against bacteria, mold, and fungi growth in your bathroom or other humidity prone environments. Offering super-quiet sound rating of 1.0 sone, the Broan-NuTone® SurfaceShield™ 110 CFM Exhaust Bath Fan generates powerful air circulation with minimal background noise. There are two lighting modes in the SurfaceShield™ LED light, an everyday white light perfect for task lighting and the SurfaceShield™ continuous antimicrobial mode. Broan-NuTone® Roomside Series fans offer an EzDuct™ connector for hassle-free room-side installation with no attic access needed.  With the addition of the EzDuct™ connector, other new additions have been added including foldable mounting ears, a new damper and housing technology that improves airtightness like never before.  This bath fan includes soft white LED lighting for energy savings and a grille that compliments any decor.


Model:

AR110LKVV

Broan-NuTone Quality

Broan-NuTone Quality

SurfaceShield™ is built to create powerful air circulation — eliminating humidity and pollutants from the room, and preventing bacteria and mold growth. While powerful, it still achieves a super-quiet sound rating of 1.0 sone.

Dual Light Modes

Dual Light Modes

Use the energy-saving soft, white LED lighting mode for everyday task lighting. When you aren’t using the room, turn on SurfaceShield™ continuous antimicrobial mode for preventing bacteria and mold growth plus a beautiful violet hue. Round-the-clock use costs less than $4 a year.

Hassle-Free Installation

Hassle-Free Installation

With the EzDuct™ connector, retrofit installation can be done entirely from the room-side — no attic access needed. The SurfaceShield™ fan features foldable mounting ears, a new damper and extremely air-tight housing technology.

Modern Style

Modern Style

Our sleek, stack-style CleanCover™ grille/cover is designed with fewer, dust-collecting vent slots and coordinates with the most popular white ceiling colors.

Features

  • SurfaceShield™ technology combined with Broan’s powerful ventilation is an effective one, two punch to kill* viruses and prevent the growth of bacteria, mold, and fungi within your room
  • 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation
  • EzDuct™ connector can be installed from the room side, with no attic access required
  • TrueSeal™ Damper technology reduces air leakage up to 50%
  • SnapFit Flange Kit offers flexible installation for new construction or retrofit upgrades
  • Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
  • Powerful enough for rooms up to 100 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation
  • Comparable to NuTone Model ARN110LKVV
  • * Testing on a non-enveloped virus (MS2 bacteriophage) showed a 99.985% reduction in controlled laboratory testing in 6 hours on hard surfaces. MRSA and E. coli showed 90%+ reduction in controlled laboratory testing in 24 hours on hard surfaces. Results may vary depending on the amount of light that is reaching the surfaces in the space where the product is installed and the length of time of exposure. Use of Vyv antimicrobial light is not intended to replace manual cleaning. More information > https://vyv.tech/virus/
Ventilation and COVID-19
CDC Update

Ventilation and COVID-19

Improving Ventilation in Your Home – Learn more ways you can improve ventilation in your home. Use as many ways as you can to help clear out virus particles in your home faster. Use fans to move virus particles in the air from inside your home to outside.

Learn More

Recognized for outstanding innovation

100 Most Requested Products
This New Product Recognized by Qualified Remodeler Magazine

100 Most Requested Products

Broan-NuTone recent new product introductions have been recognized by Qualified Remodeler magazine in its 100 Most Requested Products special section. The Broan® SurfaceShield™ with Vyv™ antimicrobial light technology, a technology designed for hands-free disinfection of the bathroom, and the new lineup of digital switches that efficiently optimize home air quality were recognized.

Learn More
  • Specs
  • Downloads
  • Videos

print

CFM 110
Color Finish
Duct Size 4
ENERGY STAR® certified No
Grille Length 12.25
Grille Width 12.25

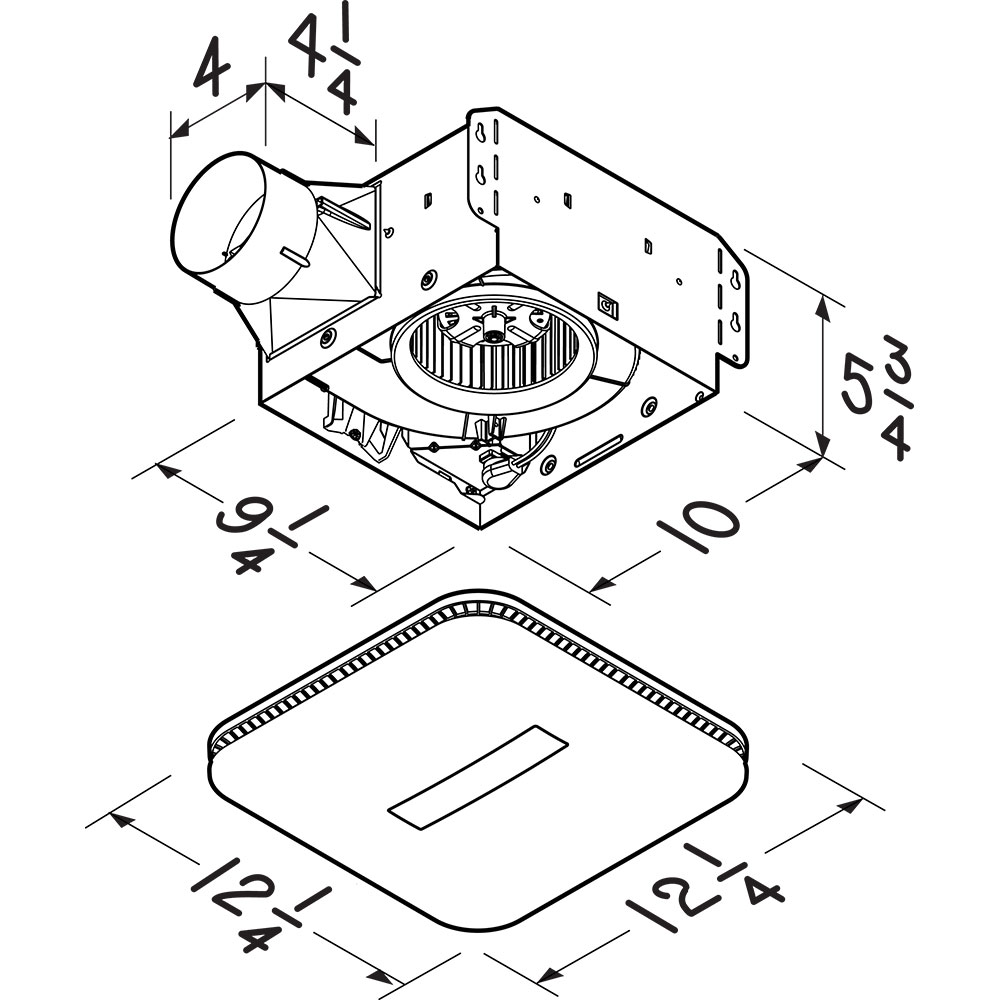

Housing Dimensions 9-1/4" x 10" x 5-3/4"
Sound Level (Sones) 1
UL Listed Yes
Grille Finish White
Humidity Sensing No
Light Bulb Quantity 1
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light Yes
Radiation Damper Available Yes
Room Side Installation Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 105
Rated Amps 0.3
Voltage 120
Can Be Used To Comply With Title 24 No
Bulb (Recommended Type) Integrated LED Module
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 3 Years
High Efficiency Luminaire No
Broan SurfaceShield LED Light Switch
The Science of SurfaceShield™
