NuTone® Flex Series
Flex Series 70 CFM Ceiling Room Side Installation Bathroom Exhaust Fan with Light
NuTone® AN70L Flex Series White 70 CFM Exhaust Bath Fan with light offers easy, room side installation, with “No Attic Access Required”. Ceiling mounted ventilation fan features foldable mounting ears and EZ Duct connector for easy installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. New grille designs are at home in any decor
Model:
AN70L
Features
- 70 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
- 2.0 Sones for Quiet performance , enough sound to know your fan is on
- 100-Watt maximum incandescent A19 type bulb or energy efficient equivalent bulb with maximum overall length of 4.4 in. or less (bulb not included)
- EzDuct™ connector can be installed from the room side, with no attic access required
- TrueSeal™ Damper technology reduces air leakage up to 50%
- UL listed for use over tub or shower when connected to a GFCI-protected branch circuit
- Powerful enough for rooms up to 65 sq. ft.
- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
Suggested Installation Accessories
Broan-NuTone® Wall Vent Kit, 3" or 4" Round Duct
Model:
WVK2A
Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.
Model:
RVK1A
Flex Duct, 4-Inch, Insulated (25 ft.)
Model:
DT4W
Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack
Model:
82W
- Specs
- Downloads
- Videos
| CFM | 70 |
|---|---|
| Color Finish |
|
| Duct Size | 4 |
| ENERGY STAR® certified | No |
| Grille Length | 11.5 |
| Grille Width | 12.125 |

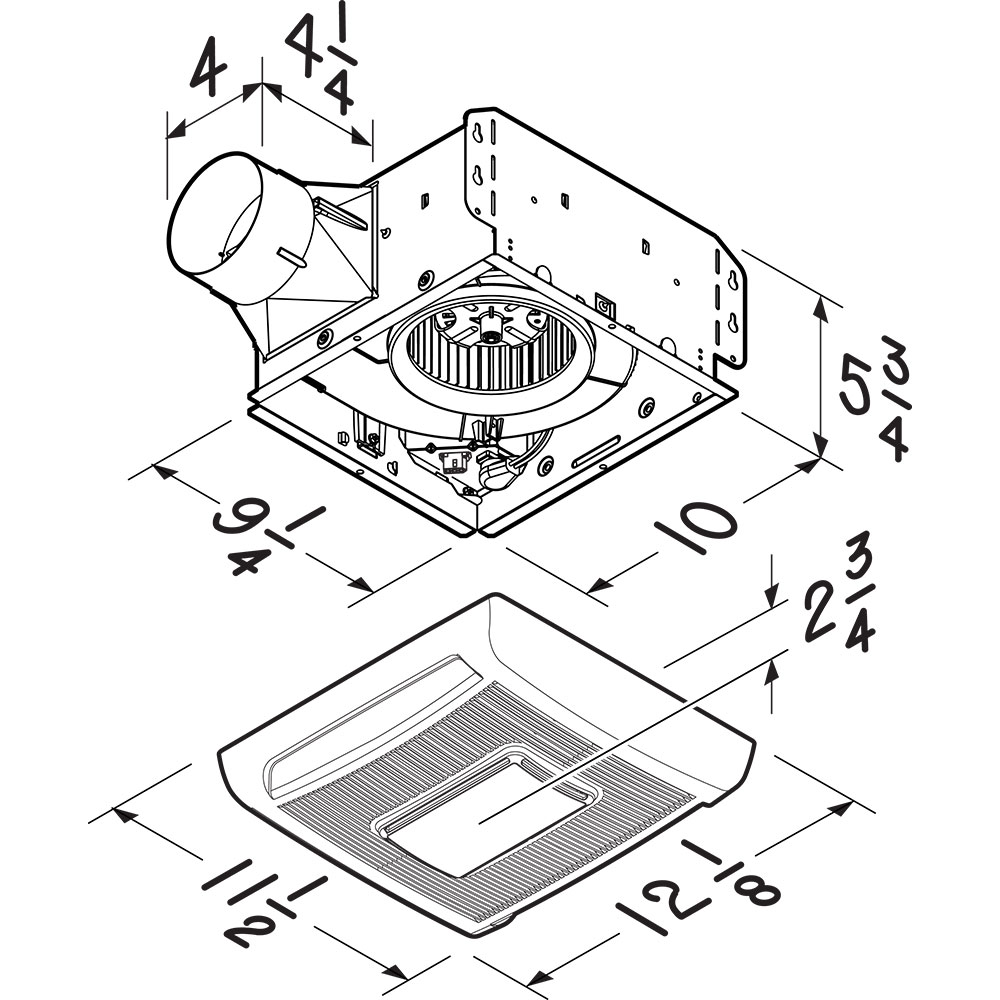

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 2 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 65 |
| Rated Amps | 1.2 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | A19 |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
