Broan® Roomside Series

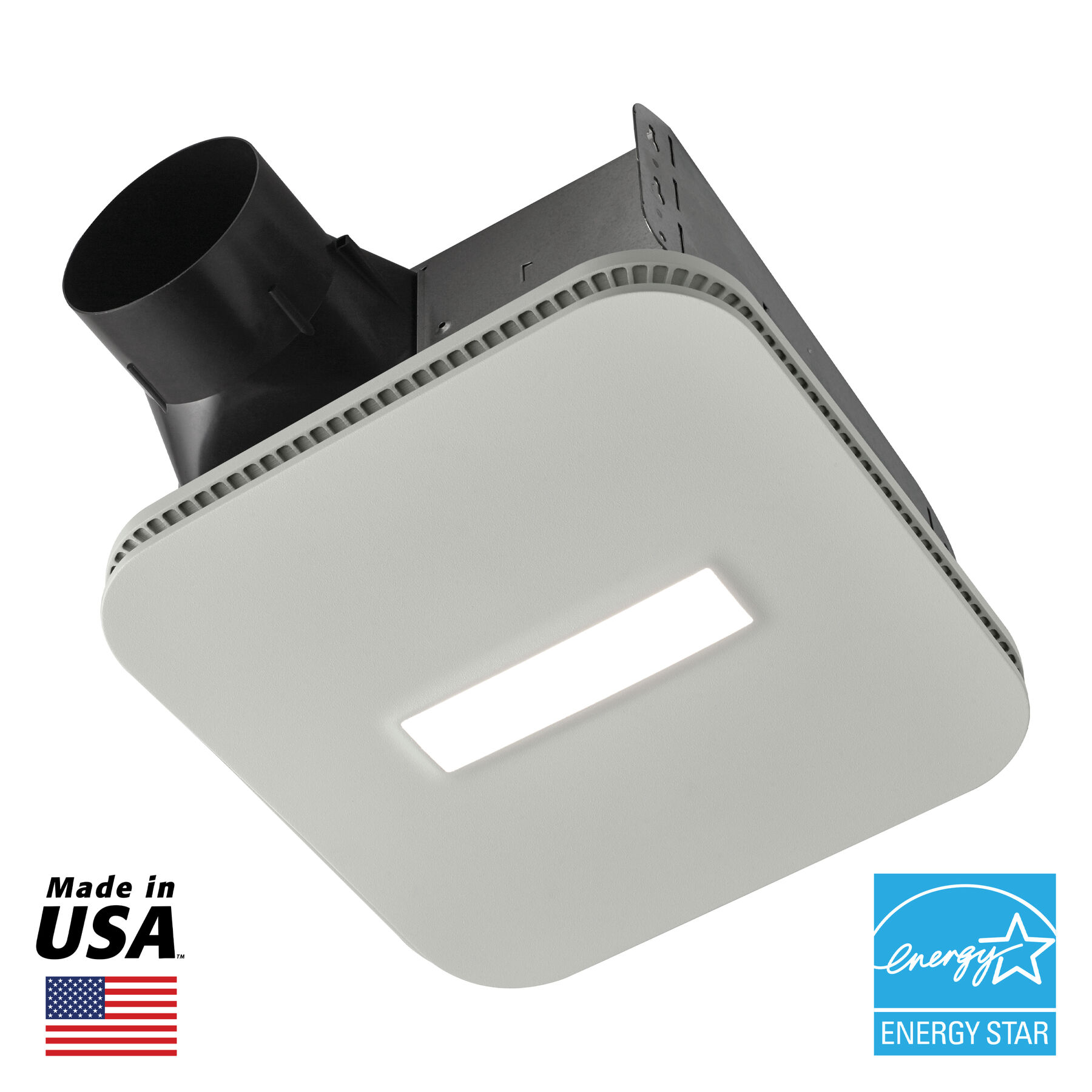

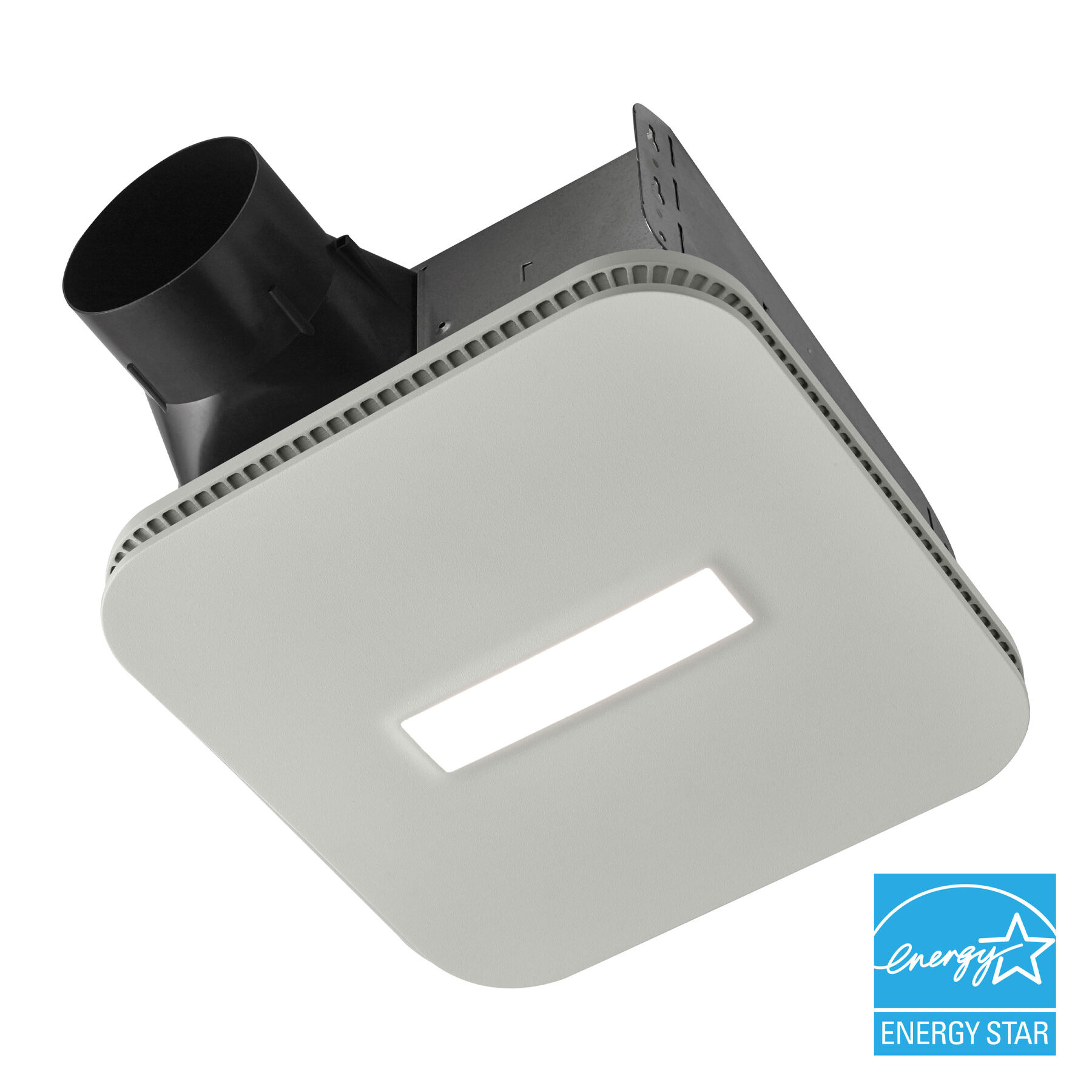

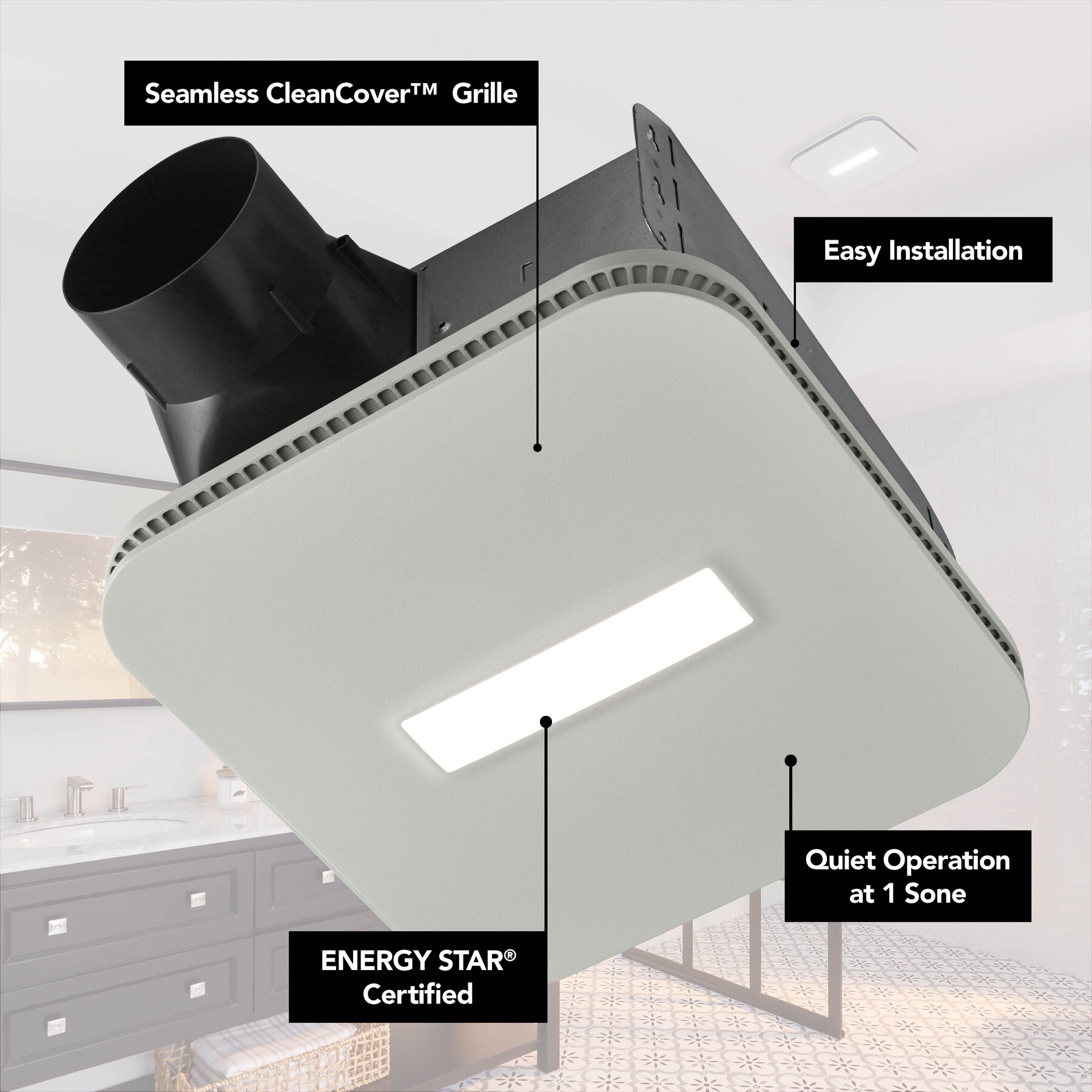

Broan® Roomside CleanCover™ 110 CFM 1.0 Sone Exhaust Fan with LED Light, ENERGY STAR

The Broan® Roomside Series Ventilation fan with LED lighted CleanCover™ grille clears the air with a low profile, streamline design. Say good-bye to unsightly standard grilles that catch dust and debris and can be a hassle to clean. With CleanCover™, your fan cover stays cleaner for longer with fewer vent slots to clean and design that coordinates with any decor. Designed for retrofit, remodel and replacement, this fan features hassle-free installation from the room side, for spaces with no attic access. The SnapFit Flange Kit, EzDuct™ connector and FoldAway™ mounting ears make it flexible to almost any installation challenge, especially for rooms on the first floor or basement floor of the home. Each carton comes complete with a precise template for accurate housing opening ceiling cut. The SnapFit Flange Kit provides a self-trimming finish to cover a rough cut.


Model:

AER110LK

Features

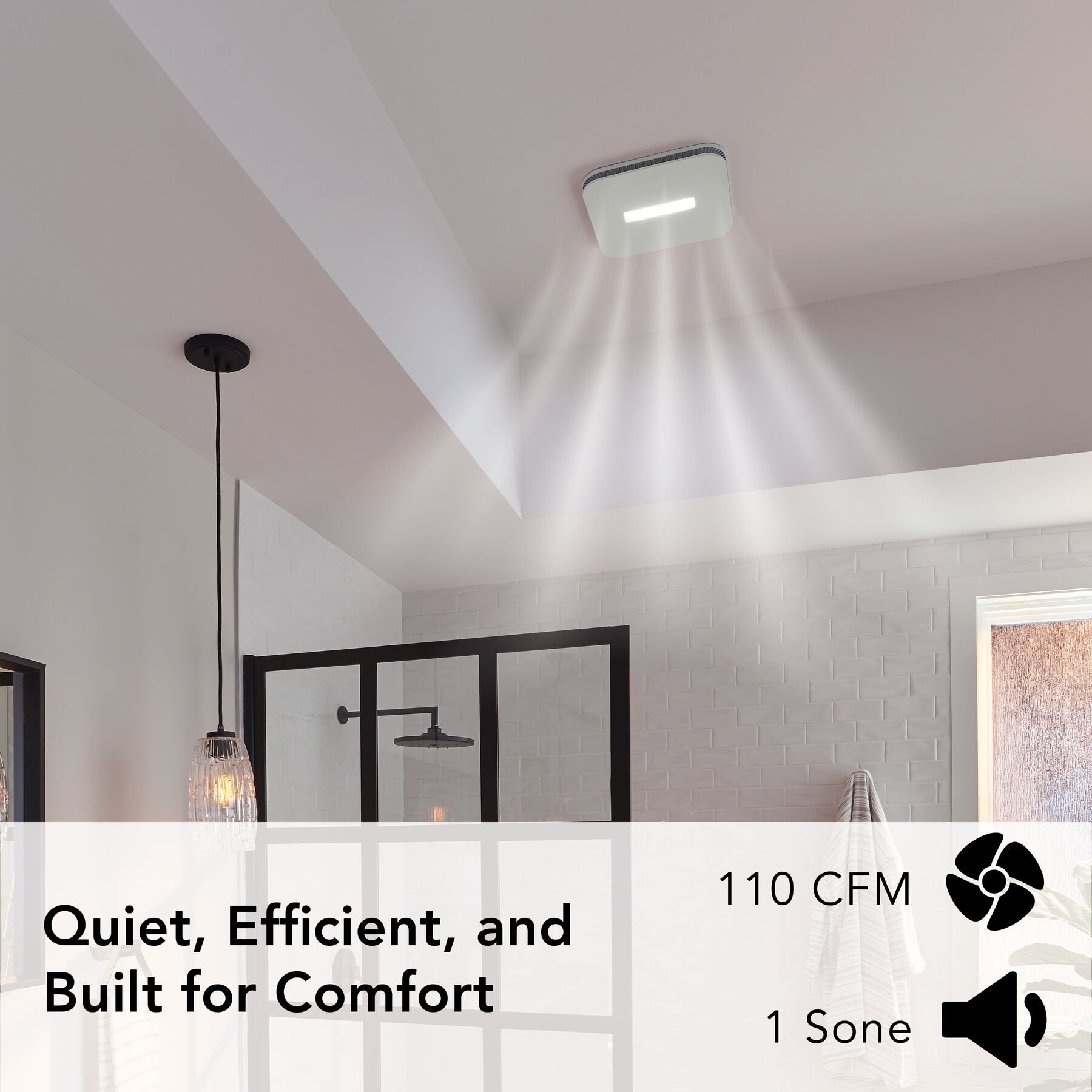

  • 110 CFM, Powerful ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • 1.0 Sones for whisper quiet operation

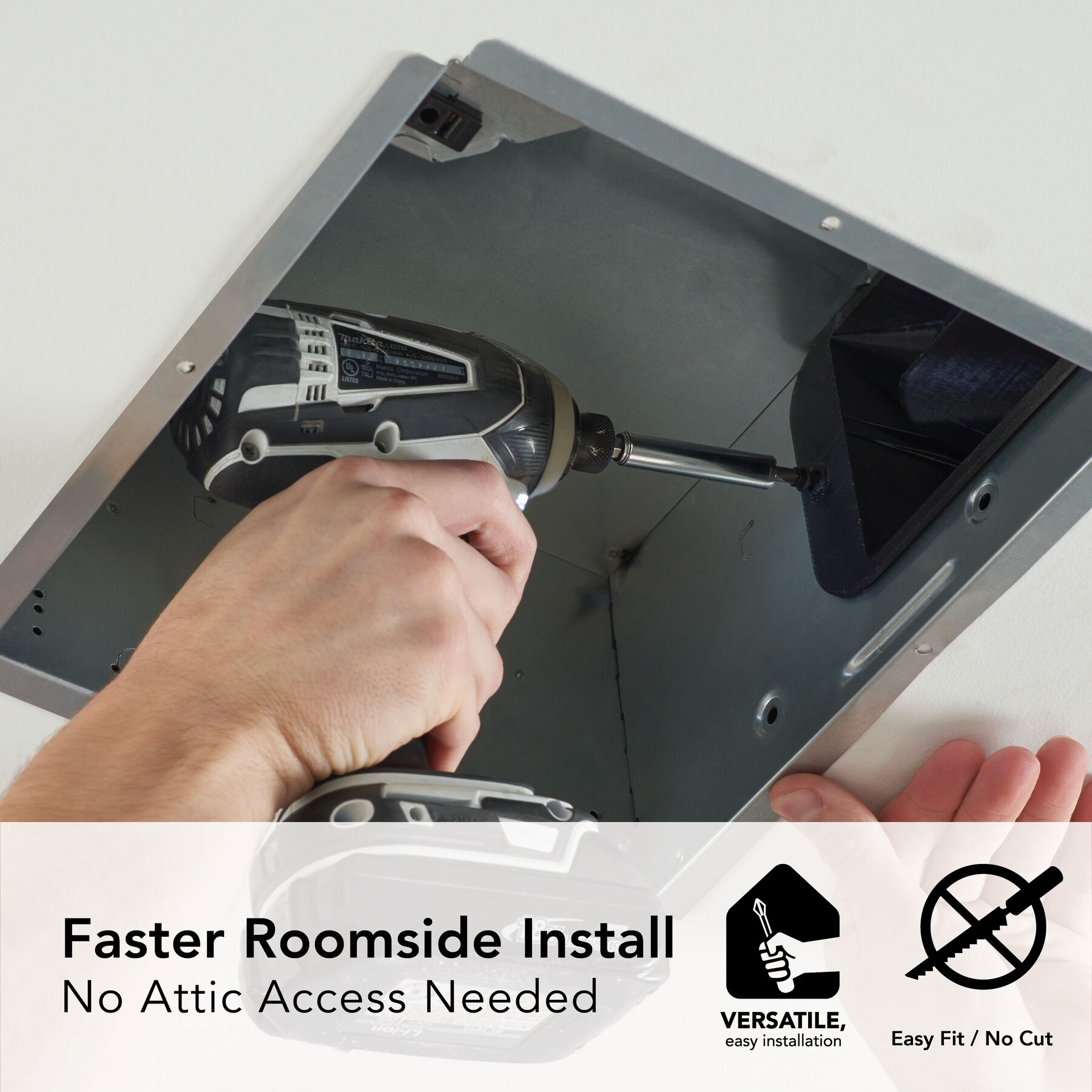

  • Broan® Roomside Series ventilation fans easily install from the room side, which makes it possible to retrofit to spaces with no attic access

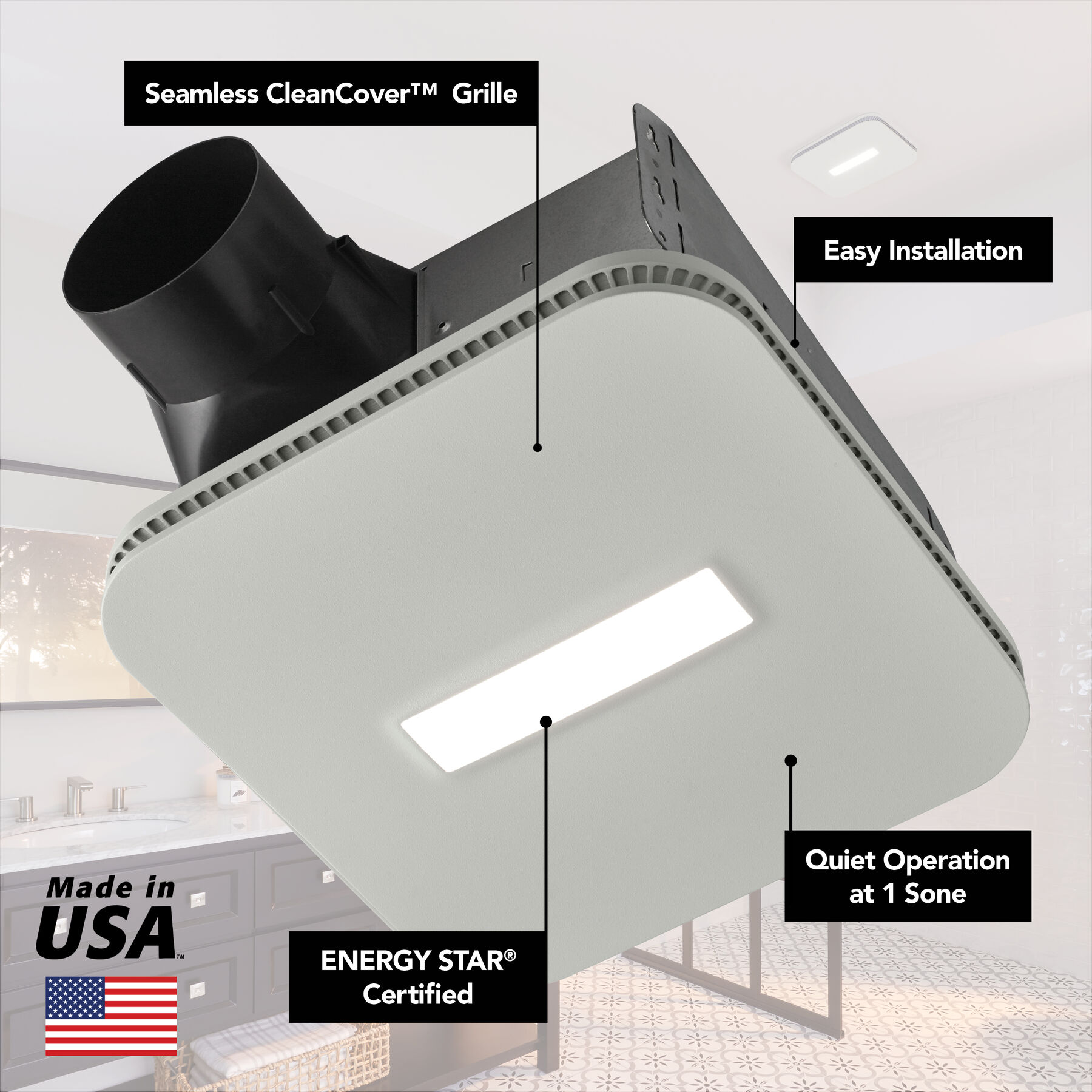

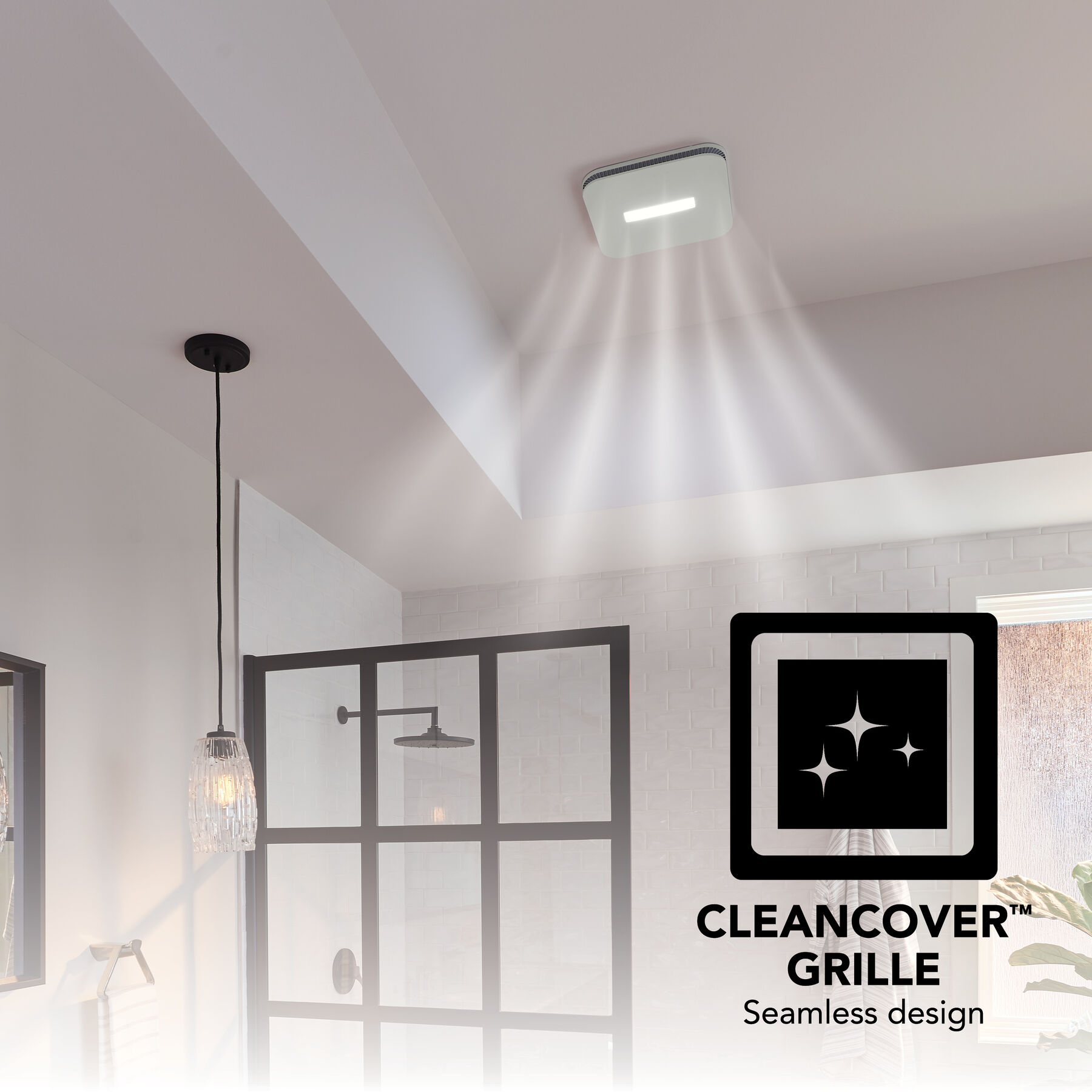

  • CleanCover grille stays cleaner longer with fewer vent slots to collect dust
  • Integrated LED module to provide energy efficient lighting
  • FoldAway™ mounting ears precisely positioned the fan for new construction applications or fold flat for retrofit installations with no attic access
  • EZDuct connector creates an air tight seal while connecting to the duct from below the ceiling
  • TrueSeal™ damper technology reduces air leakage up to 50%, the tightest seal against backdrafts
  • ENERGY STAR® certified
  • 4 in. duct connector with damper
  • Fits 2 in. x 6 in. ceiling construction
  • UL listed for use in insulated ceilings (type I.C.) and HVI-2100 certified for safety
  • UL listed for use over bathtubs or showers when connected to GFCI-protected branch circuit (not included)

Suggested Installation Accessories

Broan-NuTone® Wall Vent Kit,  3" or 4" Round Duct

Broan-NuTone® Wall Vent Kit, 3" or 4" Round Duct

Model:

WVK2A

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Model:

RVK1A

Flex Duct, 4-Inch, Insulated (25 ft.)

Flex Duct, 4-Inch, Insulated (25 ft.)

Model:

DT4W

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Model:

82W

  • Specs
  • Downloads
  • Videos

print

CFM 110
Color Finish
Duct Size 4
ENERGY STAR® certified Yes
Grille Length 12.25
Grille Width 12.25

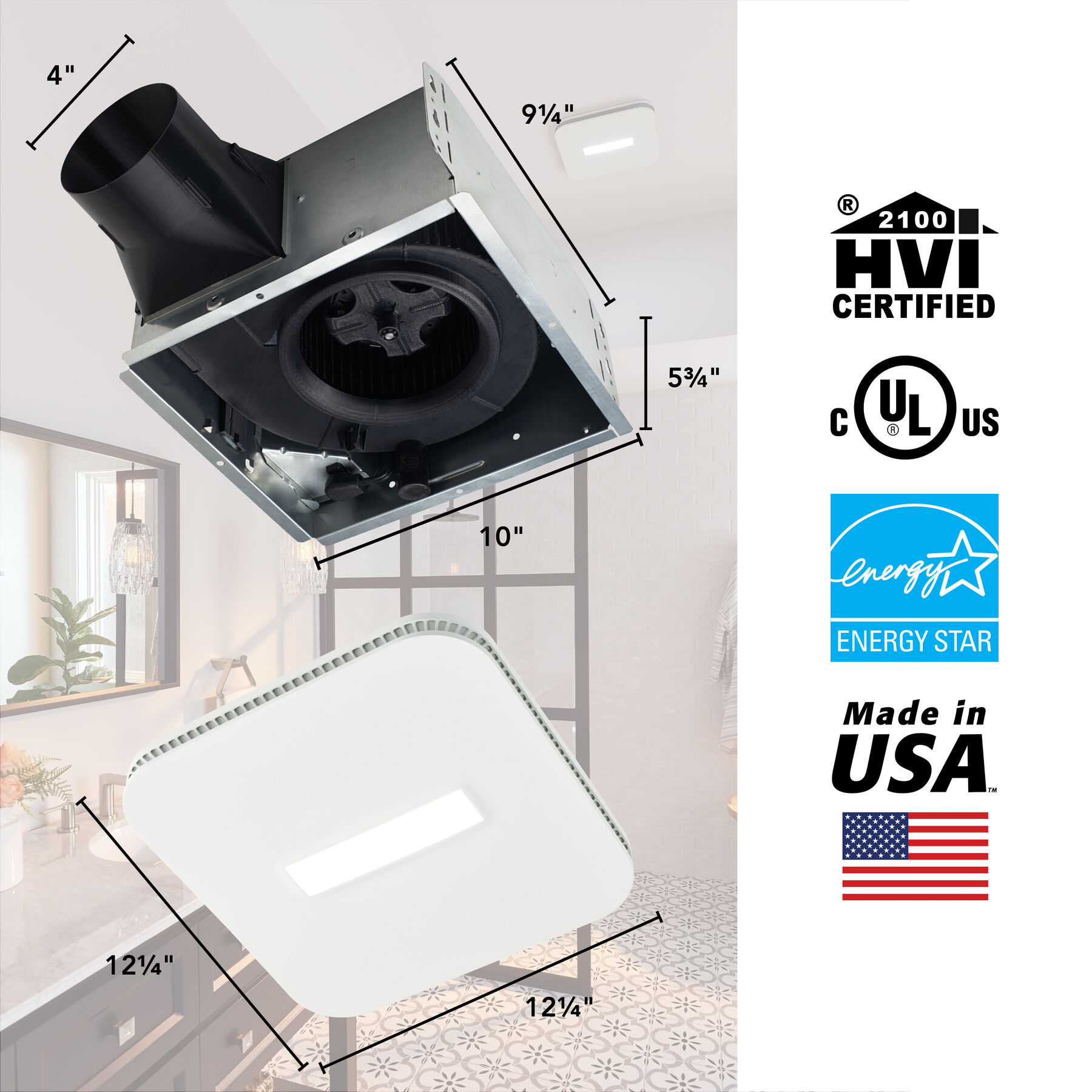

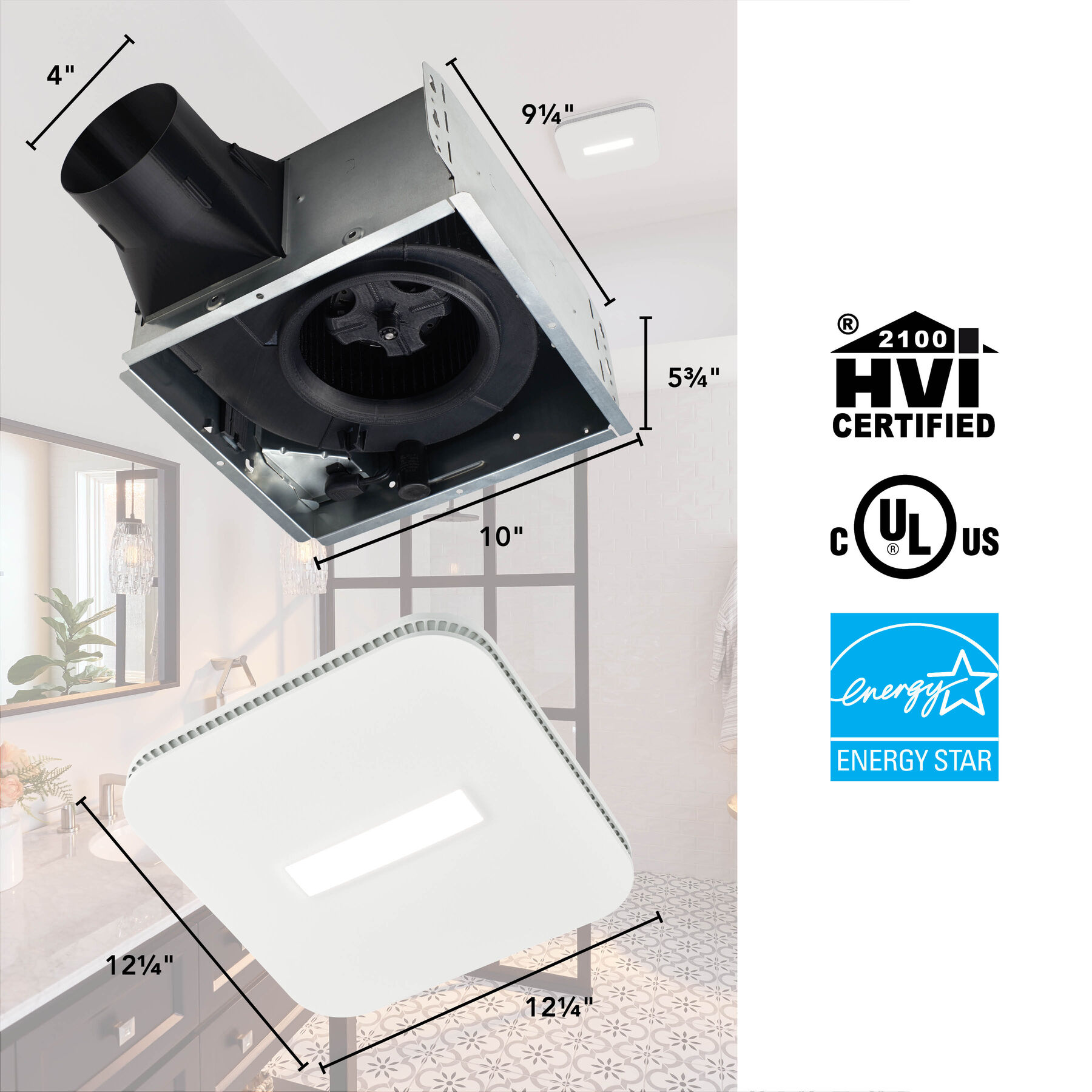

Housing Dimensions 9-1/4" x 10" x 5-3/4"
UL Listed Yes
Grille Finish White
Humidity Sensing No
Light Bulb Quantity 1
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available No
Room Side Installation Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 105
Rated Amps 0.3
Voltage 120
Can Be Used To Comply With Title 24 No
Bulb (Recommended Type) 11 Watt LED module
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 3 Years
High Efficiency Luminaire No
