Broan Flex™ Series
Broan Flex™ Series 80 CFM 0.7 Sones Humidity Sensing Ventilation Fan Light Energy Star®

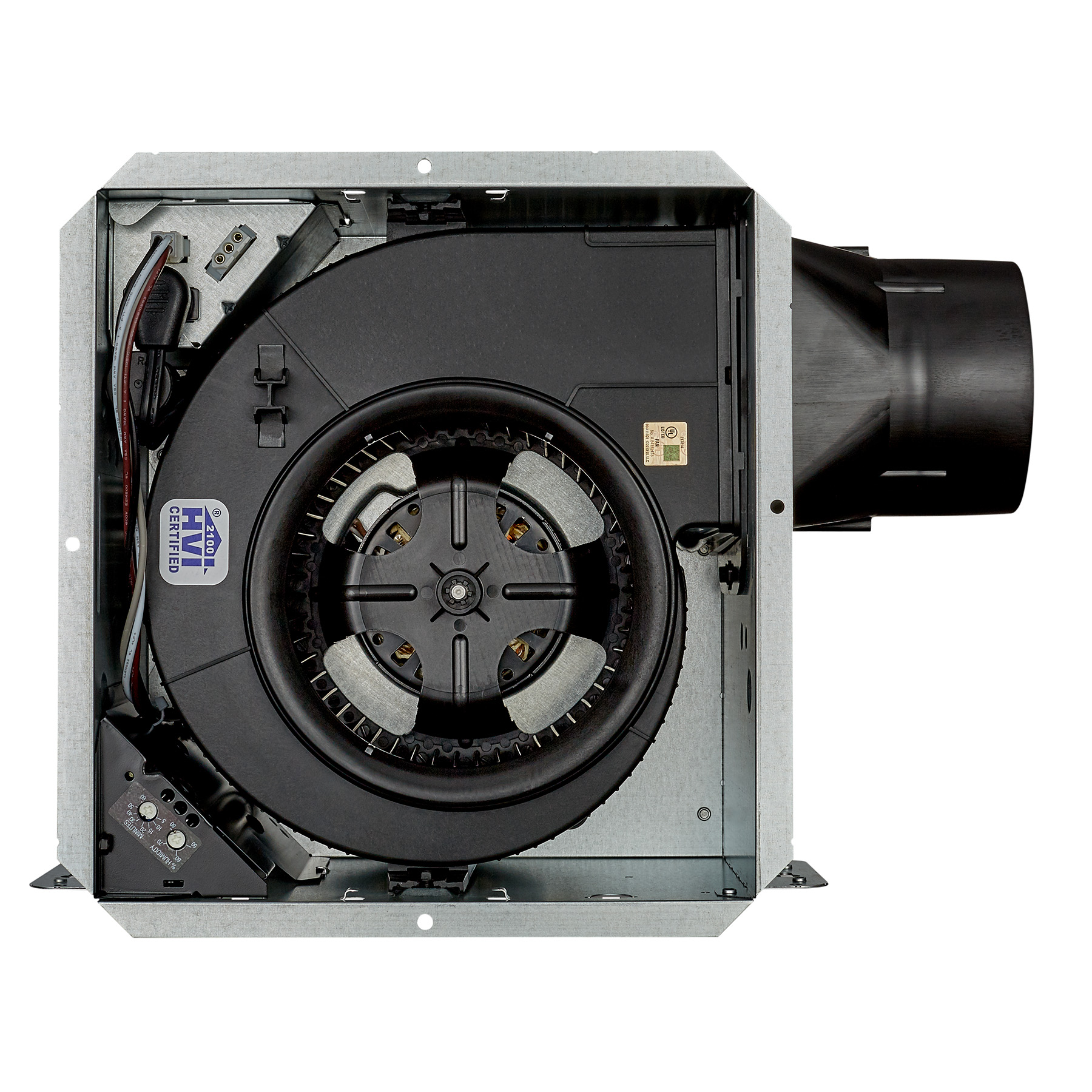

Broan® AE80SL Roomside Series White 80 CFM Ceiling Exhaust Bath Fan with a LED light, offers easy, room side installation, with No Attic Access Required. Ceiling mounted ventilation fan features foldable mounting ears and EzDuct™ connector for easy installation. The humidity sensing feature offers the flexibility to set a user-adjustable set-point to have moisture eliminated from the room without the need to turn the fan on manually. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. This energy efficient fan operates at 80 CFM and a very quiet 0.7 Sones.
Model:
AE80SL
Features
- 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 0.8 Sones for Ultra quiet performance, you might not notice it's on
- Bright 3000K energy efficient LED lighting to help illuminate your room

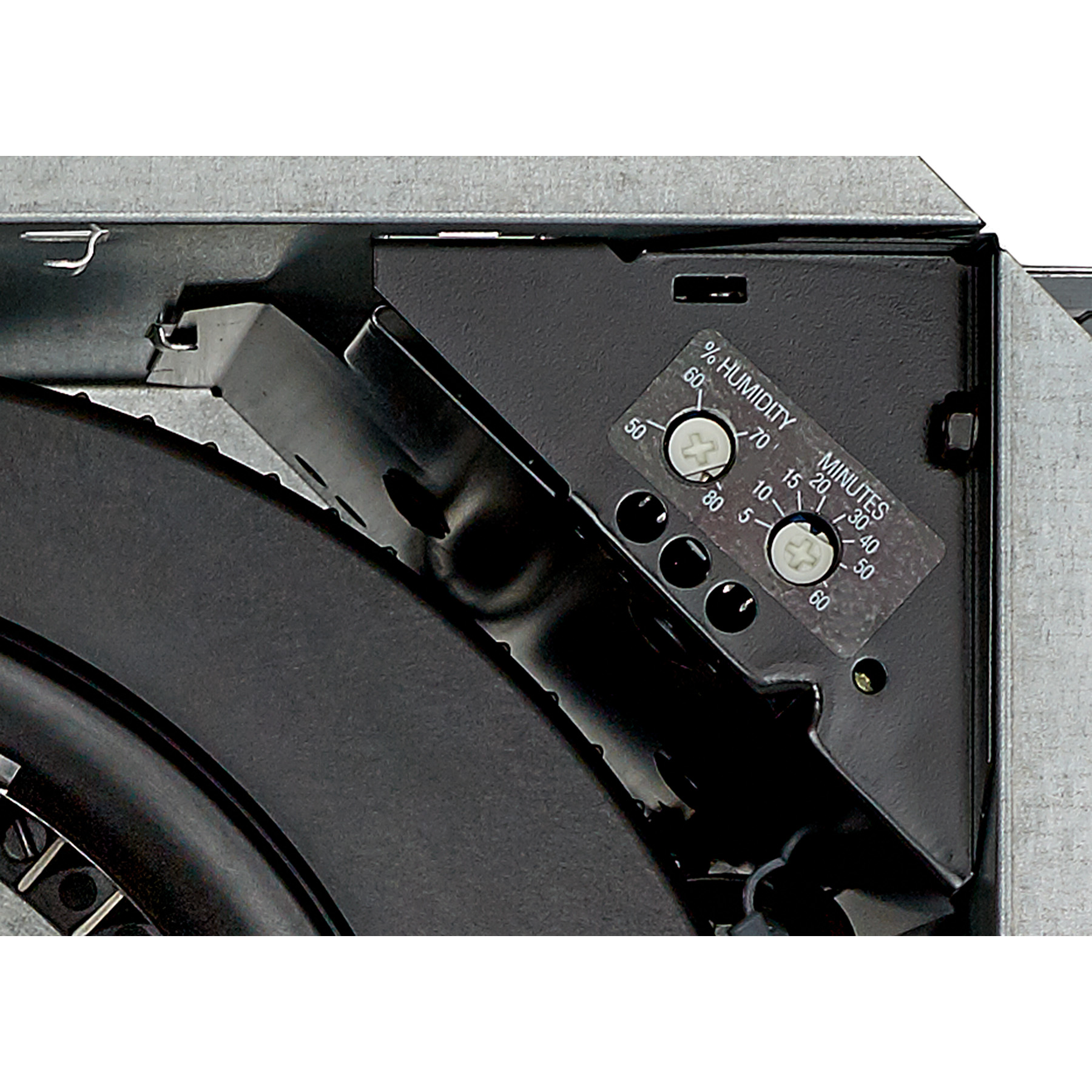

- Sensaire™ humidity sensing technology, senses humidity up to 4X faster than the competition
- Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
- EzDuct™ connector can be installed from the room side, with no attic access required
- TrueSeal™ Damper technology reduces air leakage up to 50%
- Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
- ENERGY STAR® certified product
- UL Listed for use over tubs and showers with a GFCI circuit
- Powerful enough for rooms up to 75 sq. ft.
- Brighter white grilles blend in to match the most common ceiling paint
- Permanently lubricated AC motor engineered for continuous operation
Suggested Installation Accessories
Broan-NuTone® Wall Vent Kit, 3" or 4" Round Duct
Model:
WVK2A
Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.
Model:
RVK1A
Flex Duct, 4-Inch, Insulated (25 ft.)
Model:
DT4W
Broan-NuTone® Occupancy Sensor, White
Model:
MS100W
- Specs
- Downloads
| CFM | 80 |
|---|---|
| Color Finish |
|
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 11.75 |
| Grille Width | 12.5 |

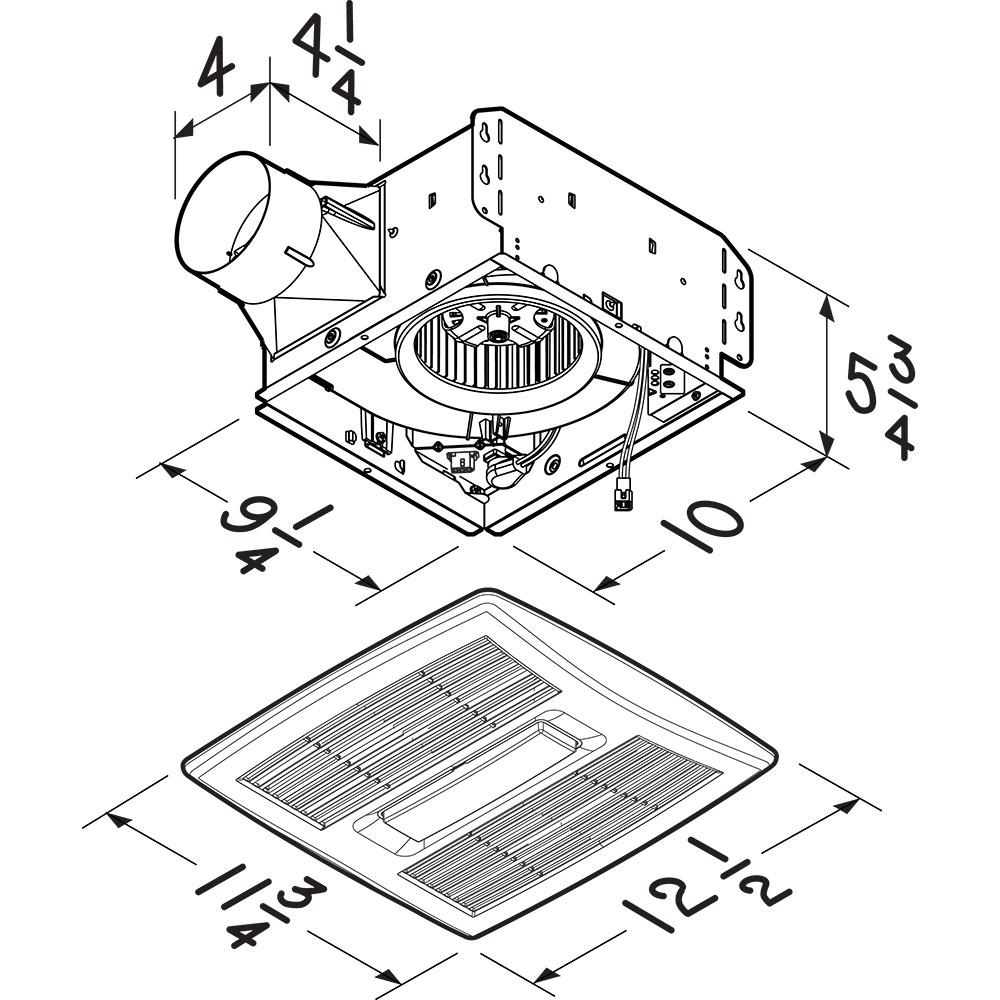

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 0.7 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | Yes |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 75 |
| Rated Amps | 0.5 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | Integrated LED Module |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
