Broan Flex™ Series

Broan FLEX 80 CFM Bathroom Exhaust Fan w/ CLEANCOVER™ Grille, ENERGY STAR®

The Broan® Flex Series Ventilation fan with CleanCover™ grille clears the air with a low profile, streamline design. Say good-bye to unsightly standard grilles that catch dust and debris and can be a hassle to clean. With CleanCover™, your fan cover stays cleaner for longer with fewer vent slots to clean and design that coordinates with any decor. Designed for retrofit, remodel and replacement, this fan features hassle-free installation from the room side, for spaces with no attic access. The SnapFit Flange Kit, EzDuct™ connector and FoldAway™ mounting ears make it flexible to almost any installation challenge, especially for rooms on the first floor or basement floor of the home. Each carton comes complete with a precise template for accurate housing opening ceiling cut. The SnapFit Flange Kit provides a self-trimming finish to cover a rough cut.


Model:

AE80K

Features

Compatible with Overture™ Connected IAQ System

Compatible with Overture™ Connected IAQ System

ENERGY STAR certified

ENERGY STAR certified

UL Listed

UL Listed

  • 80 CFM, Powerful ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • 0.7 Sones for whisper quiet operation

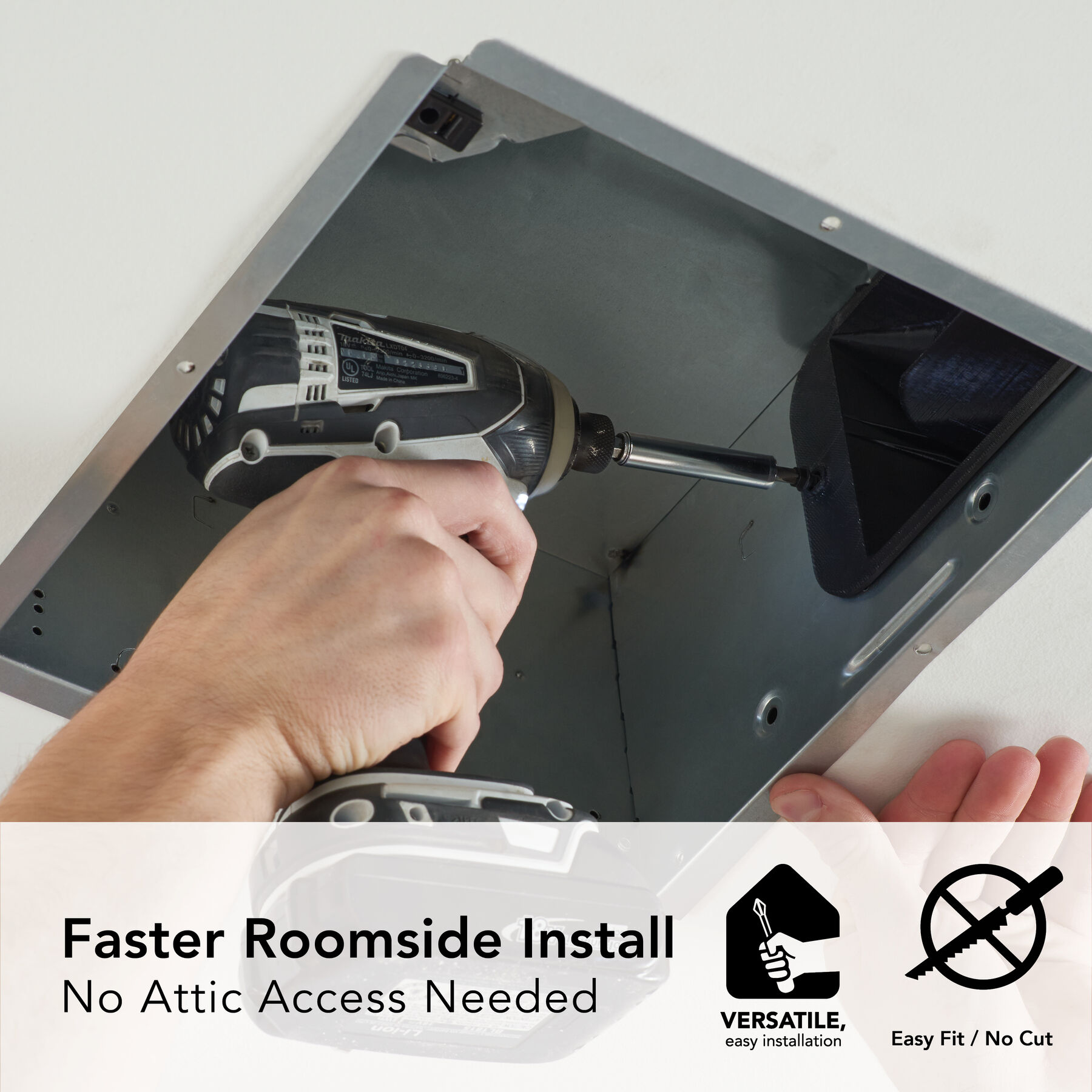

  • Broan® Flex Series ventilation fans easily install from the room side, which makes it possible to retrofit to spaces with no attic access

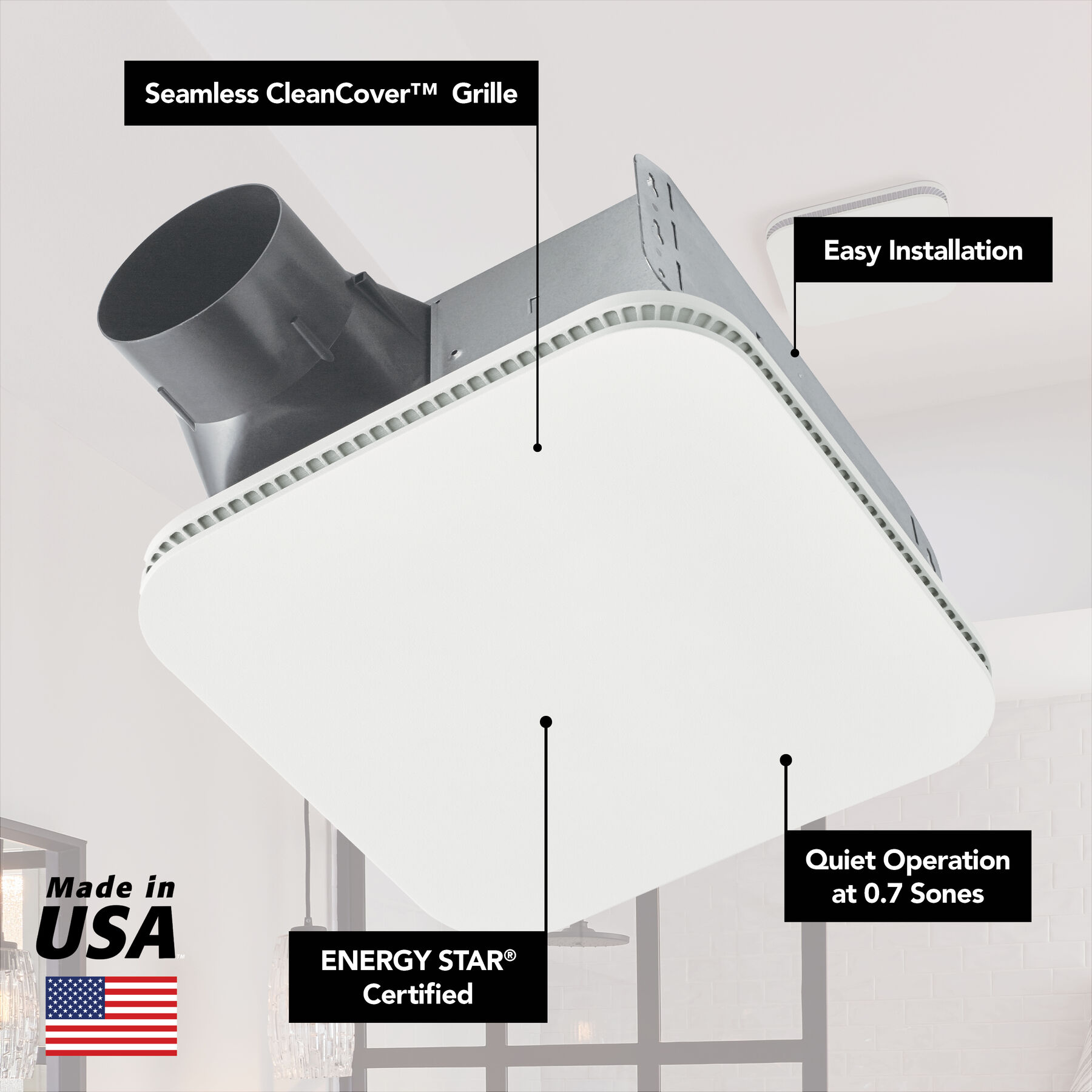

  • CleanCover™ grille stays cleaner longer with fewer vent slots to collect dust
  • FoldAway™ mounting ears precisely positioned the fan for new construction applications or fold flat for retrofit installations with no attic access
  • EZDuct connector creates an air tight seal while connecting to the duct from below the ceiling
  • 30% more airtight installed performance vs standard ventilation fans
  • SnapFit flange kit offers flexible installation for new construction or retrofit upgrades
  • ENERGY STAR® certified
  • 4 in. duct connector with damper
  • Fits 2 in. x 6 in. ceiling construction
  • UL listed for use in insulated ceilings (type I.C.) and HVI-2100 certified for safety
  • UL listed for use over bathtubs or showers when connected to GFCI-protected branch circuit (not included)
  • 3-year limited warranty
  • Comparable to NuTone Model AERN80K
Upgrade This Broan-NuTone Ventilation Fan
No Cutting or Patching Drywall

Upgrade This Broan-NuTone Ventilation Fan

Broan® Universal CleanCover™ Bathroom Exhaust Fan Upgrade Grille/Cover. This fresh, stylish grille is designed to fit small, medium and large size Broan® and NuTone® ventilation fans. It has a crisp, bright white finish to match the most popular white ceiling paint colors.

Buy Now

Radiation Dampers Compatible with this Model

  • Specs
  • Downloads
  • Videos

print

CFM 80
Color Finish
Duct Size 4
ENERGY STAR® certified Yes
Grille Length 12.25
Grille Width 12.25

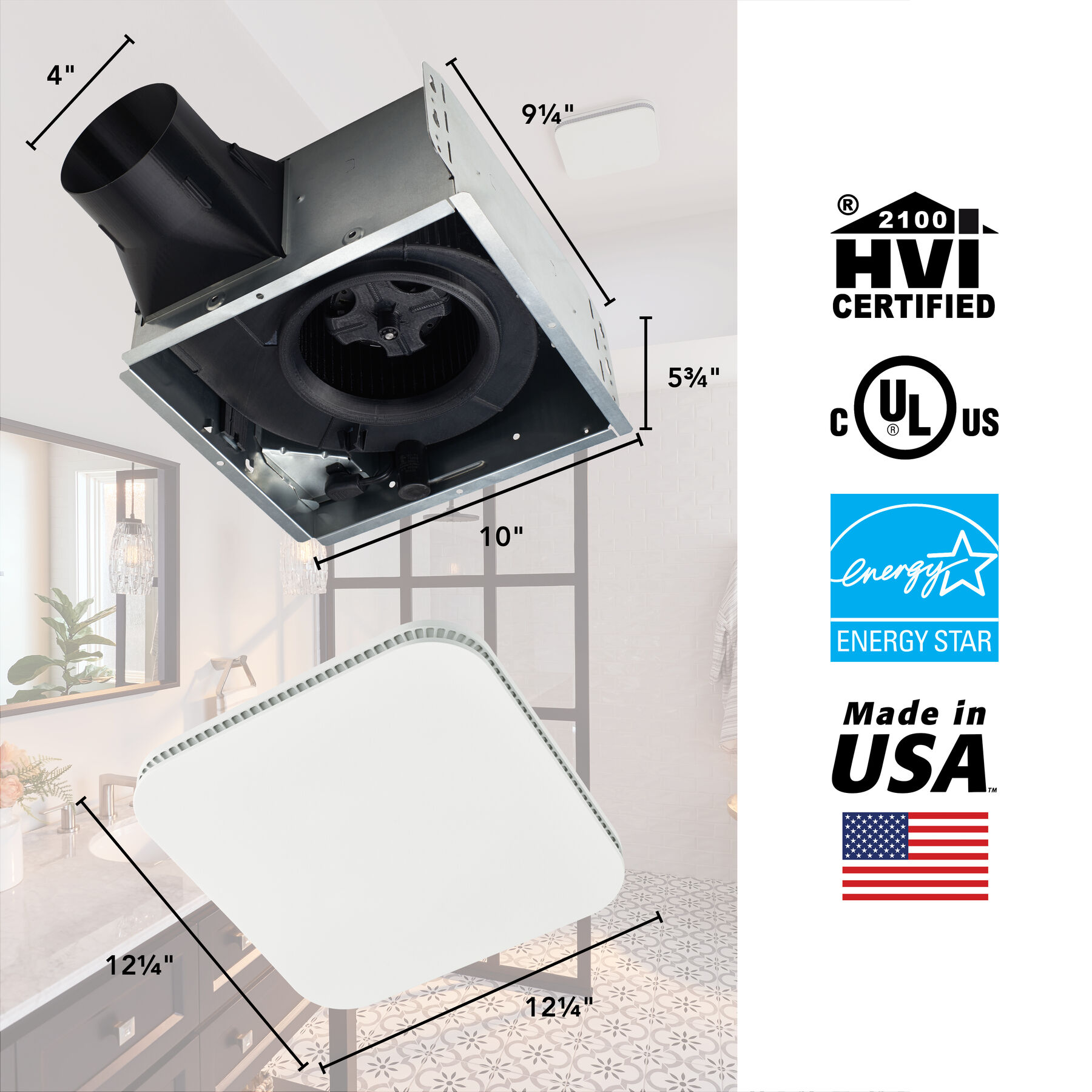

Housing Dimensions 9-1/4" x 10" x 5-3/4"
Sound Level (Sones) 0.7
UL Listed Yes
Grille Finish White
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available No
Room Side Installation Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 75
Rated Amps 0.3
Voltage 120
Can Be Used To Comply With Title 24 No
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 3 Years
High Efficiency Luminaire No
