Broan Flex™ Series

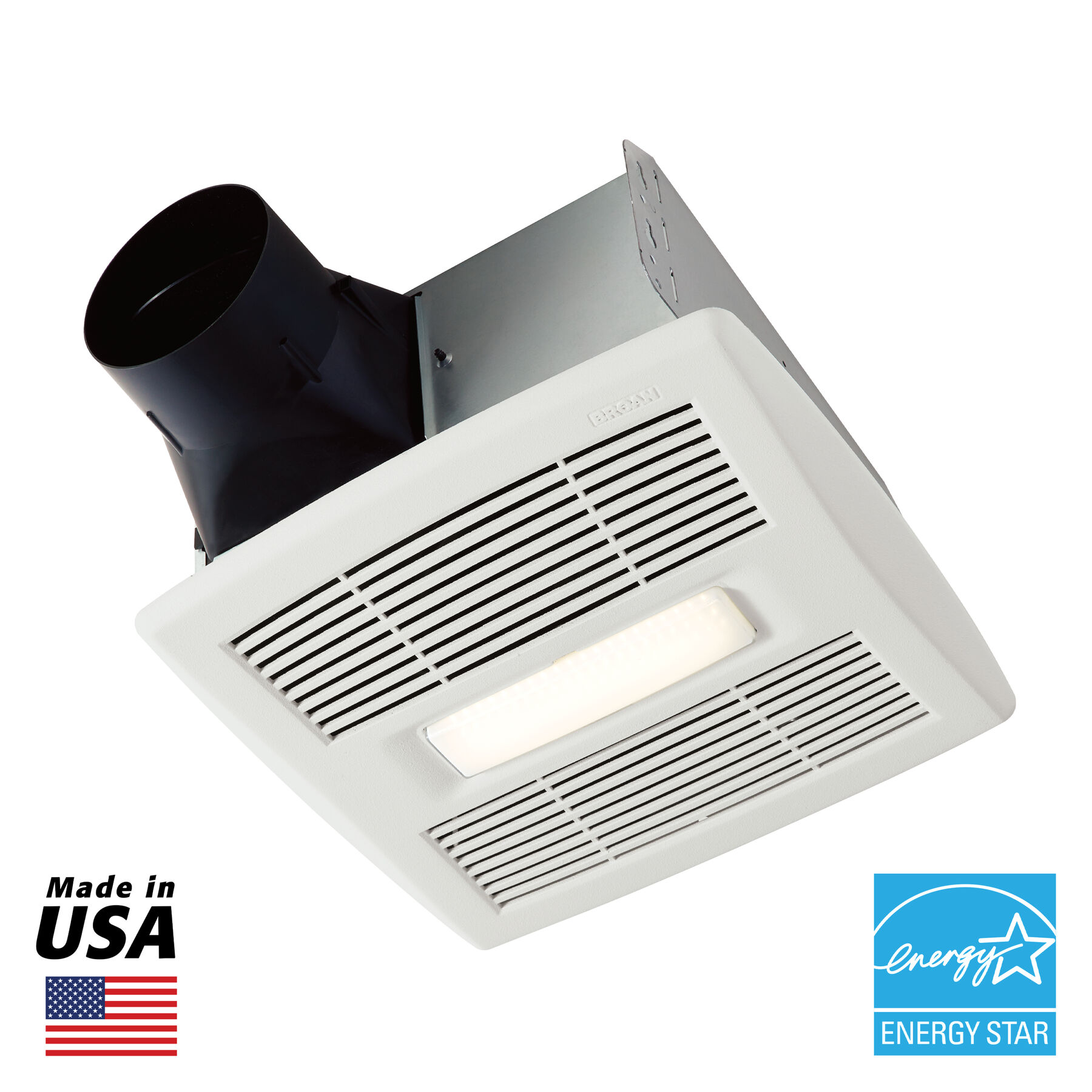

Broan Flex™ Series 80 CFM 1.2 Sones Ventilation Fan Light Energy Star®

Broan® AE80BL Flex Series White 80 CFM Ceiling Exhaust bathroom fan is revolutionary to the fan industry. With a full range of operating points, consumers have the flexibility to install this series in new construction or as a room-side retrofit. Innovations to the product in foldable mounting ears, new damper and housing that improves building airtightness like never before. With a new clean look for the grille, the Flex Series compliments any style decor.


Model:

AE80BL

Features

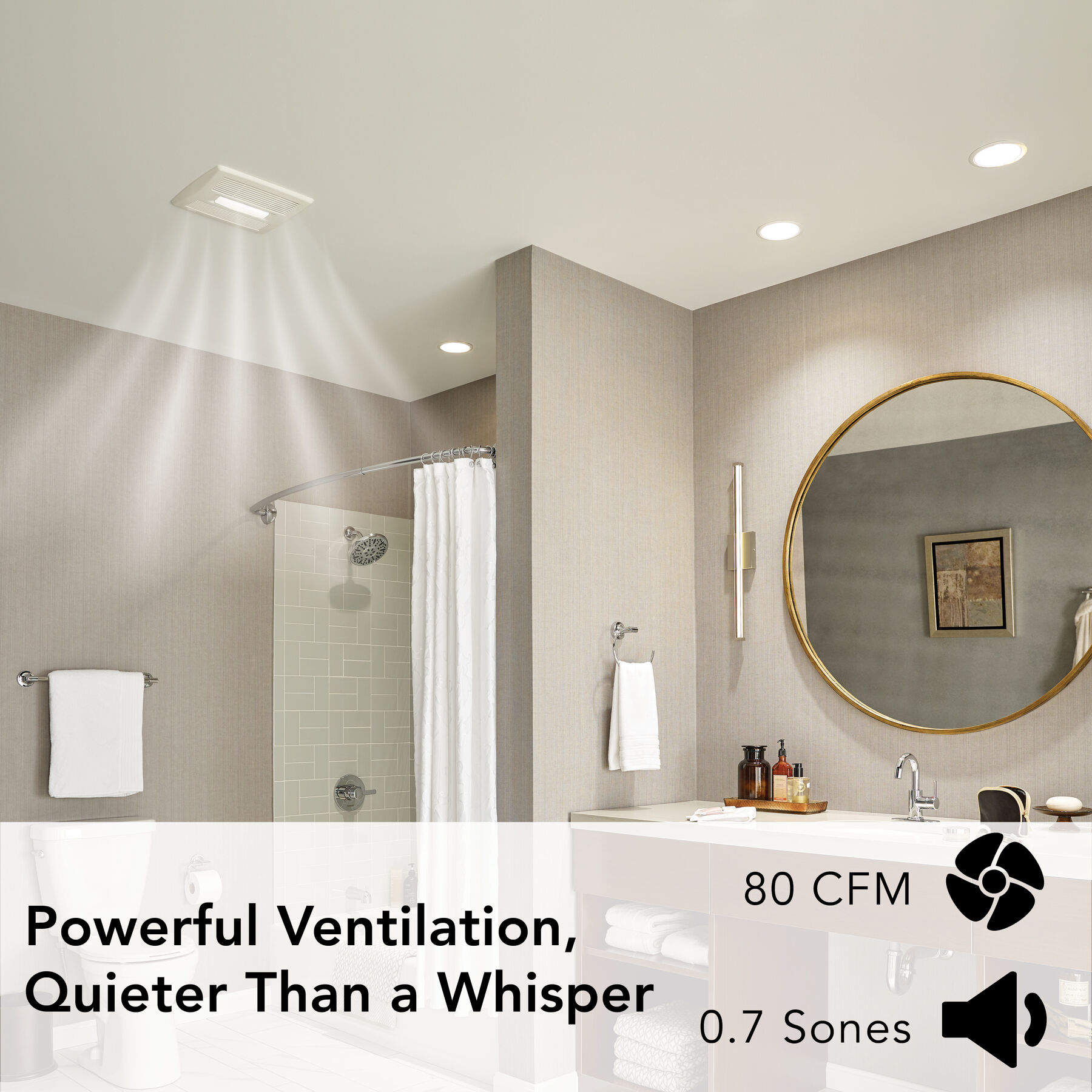

  • 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • 1.2 Sones for Quiet performance, enough sound to know your fan is on.

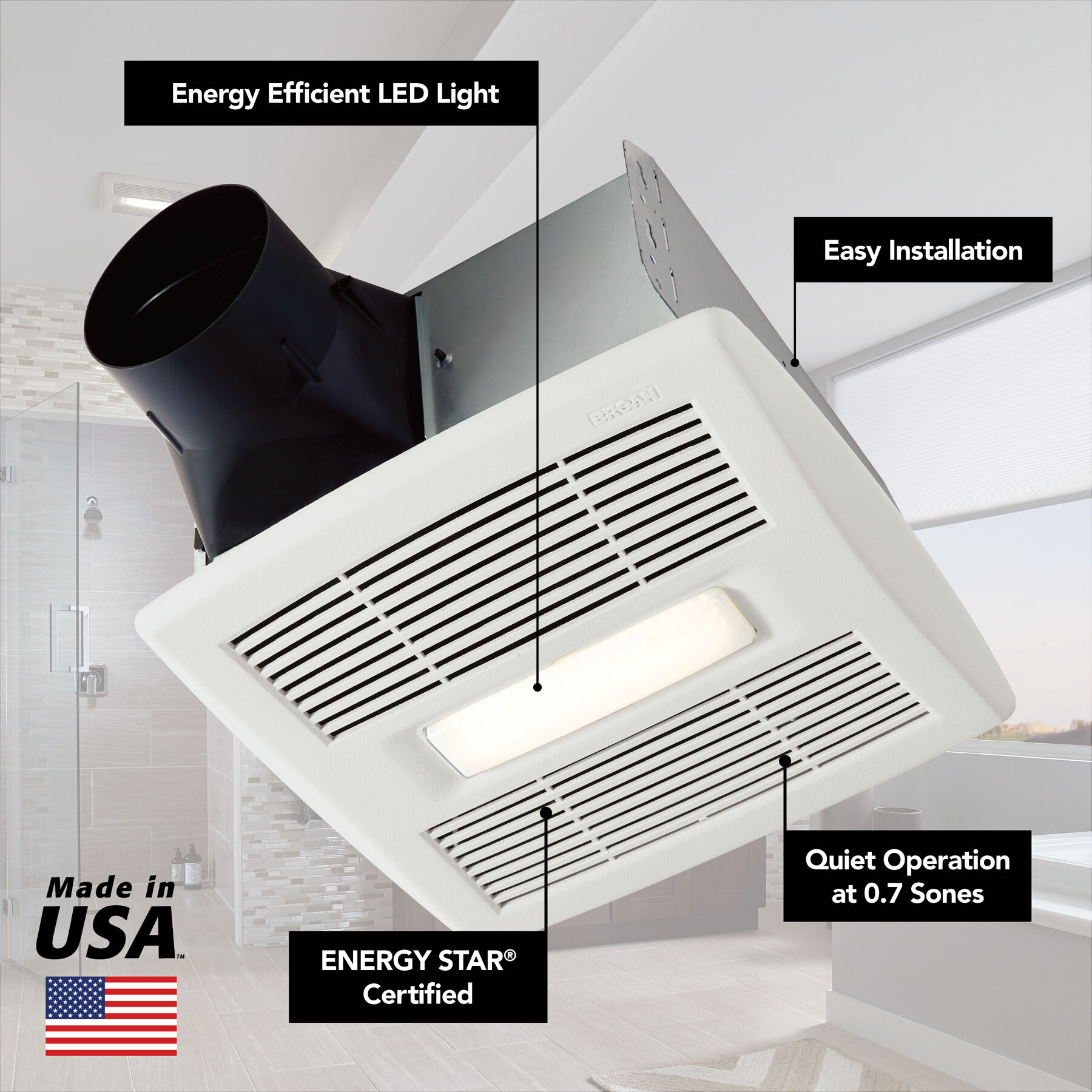

  • Bright 3000K energy efficient LED lighting to help illuminate your room

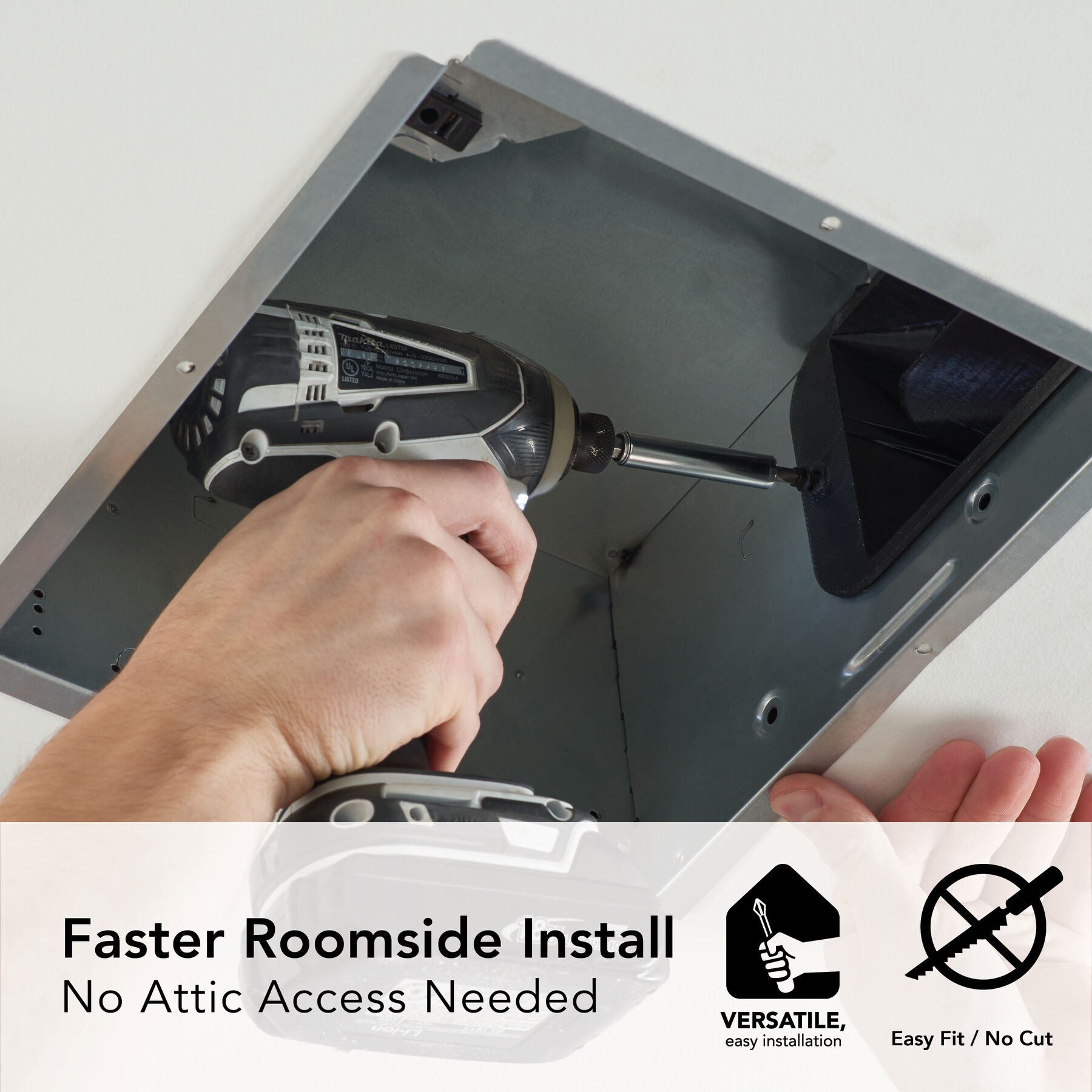

  • Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
  • EzDuct™ connector can be installed from the room side, with no attic access required
  • TrueSeal™ Damper technology reduces air leakage up to 50%
  • Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
  • ENERGY STAR® certified product
  • UL Listed for use over tubs and showers with a GFCI circuit

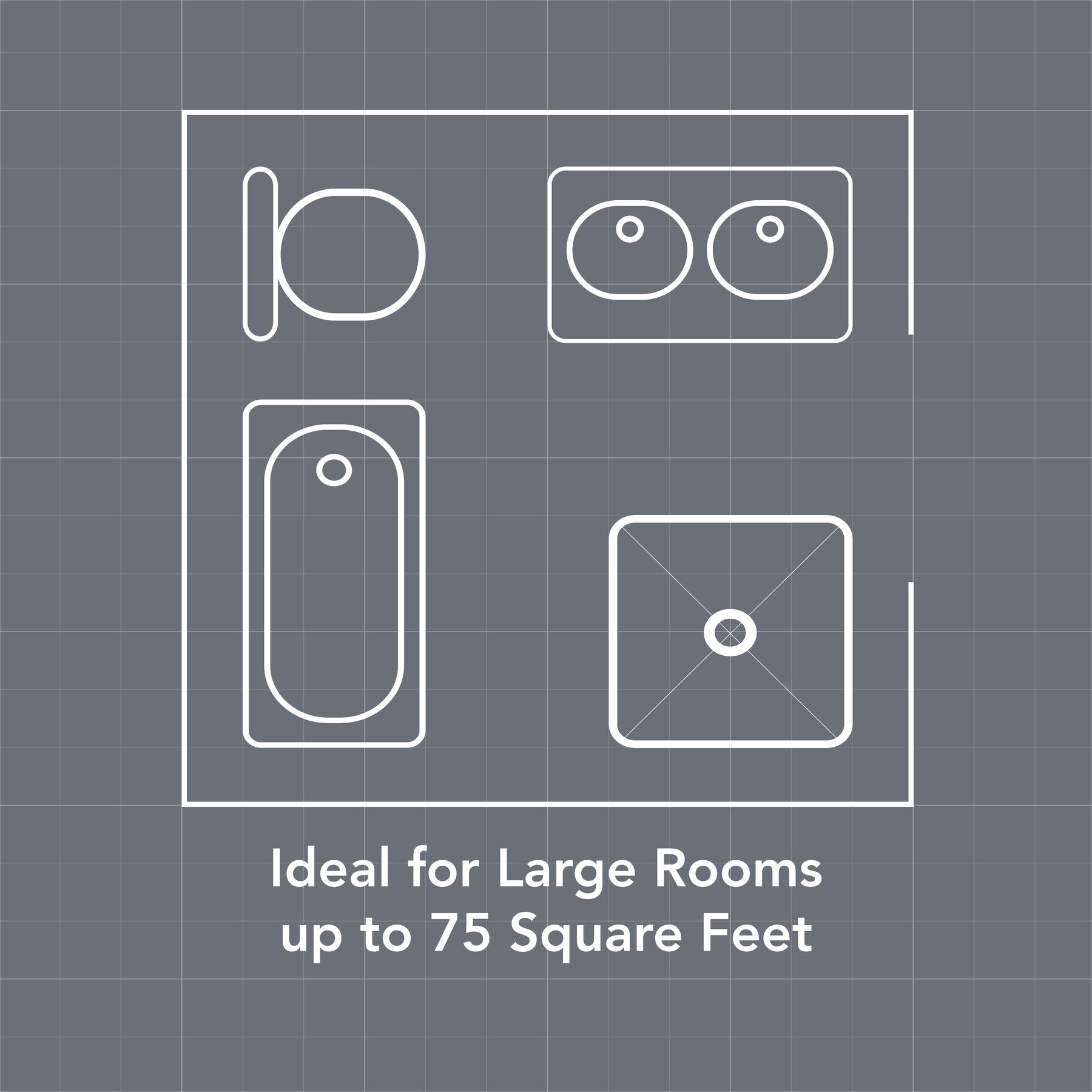

  • Powerful enough for rooms up to 75 sq. ft.
  • Brighter white grilles blend in to match the most common ceiling paint
  • Permanently lubricated AC motor engineered for continuous operation

Suggested Installation Accessories

Broan-NuTone® Wall Vent Kit,  3" or 4" Round Duct

Broan-NuTone® Wall Vent Kit, 3" or 4" Round Duct

Model:

WVK2A

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Model:

RVK1A

Flex Duct, 4-Inch, Insulated (25 ft.)

Flex Duct, 4-Inch, Insulated (25 ft.)

Model:

DT4W

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White

Model:

82W

  • Specs
  • Downloads
  • Videos

print

CFM 80
Color Finish
Duct Size 4
ENERGY STAR® Certified Yes
Grille Length 11.75
Grille Width 12.5

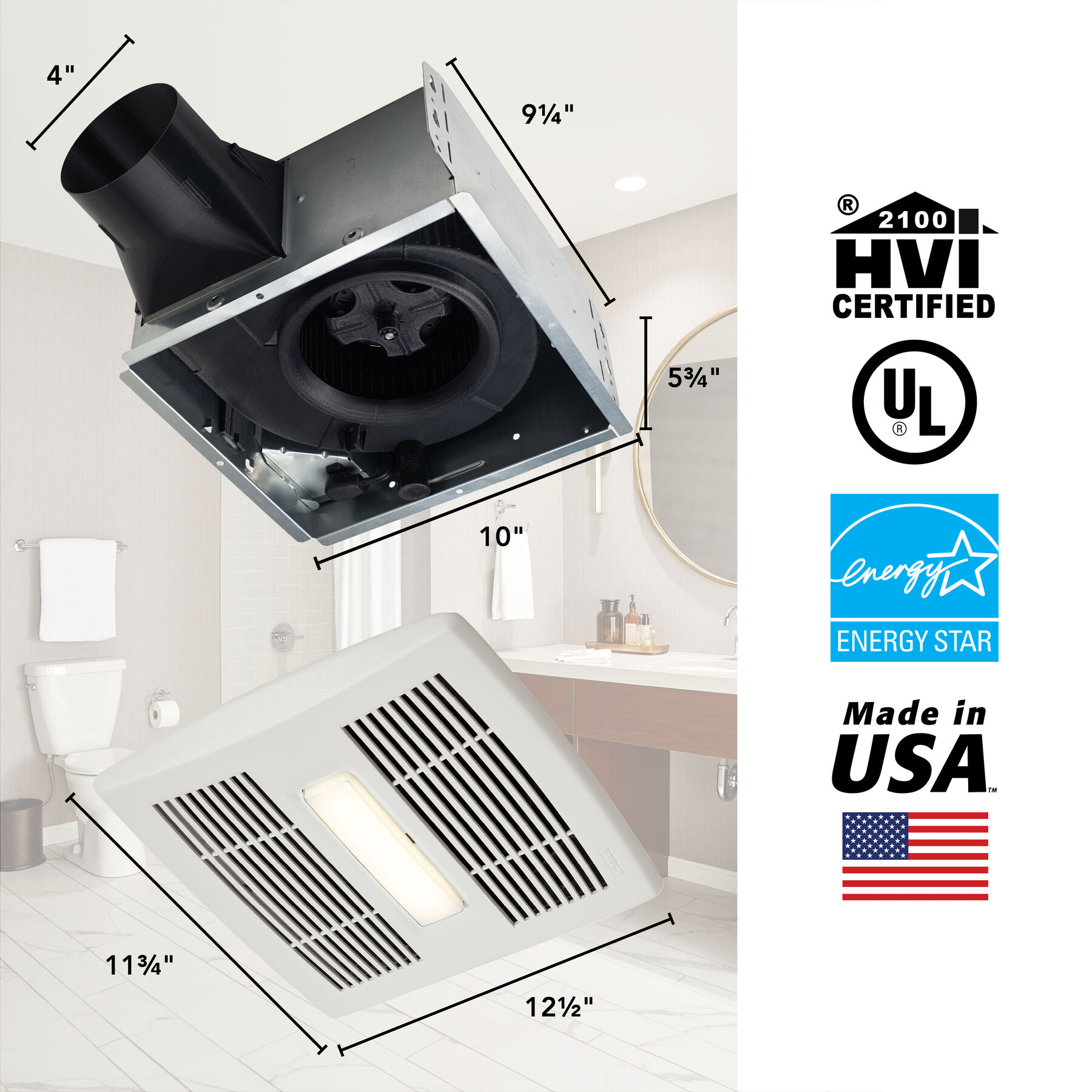

Housing Dimensions 9-1/4" x 10" x 5-3/4"
UL Listed Yes
Grille Finish White
Humidity Sensing No
Light Bulb Quantity 1
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available Yes
Room Side Installation Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 75
Rated Amps 0.5
Voltage 120
Can Be Used To Comply With Title 24 No
Bulb (Recommended Type) Integrated LED Module
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 1 Year
High Efficiency Luminaire No
Broan FLEX Series Bathroom Ventilation Fan Installation Video
