Broan® Flex DC™ Series

Broan® Humidity Sensing Bathroom Exhaust Fan ENERGY STAR®, 50-110 CFM

Broan® AE50110DCS Flex DC™ Series Humidity Sensing Exhaust Bath Fan, ENERGY STAR® offers easy, room side installation, with “No Attic Access Required”. Ceiling mounted ventilation fan features foldable mounting ears and EZ Duct connector for easy installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. The humidity sensing feature will automatically turn the fan on when a preset level has been reached, thus allowing for proper ventilation throughout the room. This energy efficient fan operates at a selectable CFM range of 50-80-110 at a quiet operation of <0.3-0.4-0.9 sones.


Model:

AE50110DCS

Features

  • FlexFlow™ technology, select between 50, 80 or 110 CFM
  • Quiet operation at <0.3-0.4-0.9 sones
  • Sensaire™ Humidity control automatically turns fans ON when a rapid to moderate (user adjustable) increase of humidity is sensed or when humidity rises above the user-adjustable set-point (50% to 80% RH)
  • Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable
  • Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation
  • Flex DC fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
  • Plug in, permanently lubricated, brushless DC motor – engineered for continuous operation
  • Can be installed in a wall if mounted 8-ft. or more above the floor
  • UL Listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only)
  • ENERGY STAR® certified product
Product Selected ENERGY STAR® Most Efficient 2020

Product Selected ENERGY STAR® Most Efficient 2020

Products that are recognized as the Most Efficient of ENERGY STAR in 2020 prevent greenhouse gas emissions by meeting rigorous energy efficiency performance levels set by the U.S. Environmental Protection Agency

See Product List

Suggested Installation Accessories

Broan-NuTone® Wall Vent Kit,  3" or 4" Round Duct

Broan-NuTone® Wall Vent Kit, 3" or 4" Round Duct

Model:

WVK2A

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Model:

RVK1A

Flex Duct, 4-Inch, Insulated (25 ft.)

Flex Duct, 4-Inch, Insulated (25 ft.)

Model:

DT4W

Broan-NuTone® Occupancy Sensor, White

Broan-NuTone® Occupancy Sensor, White

Model:

MS100W

  • Specs
  • Downloads
  • Videos

print

CFM 50-80-110
Color Finish
Duct Size 4
ENERGY STAR® Certified Yes
Grille Length 11.5
Grille Width 12.25

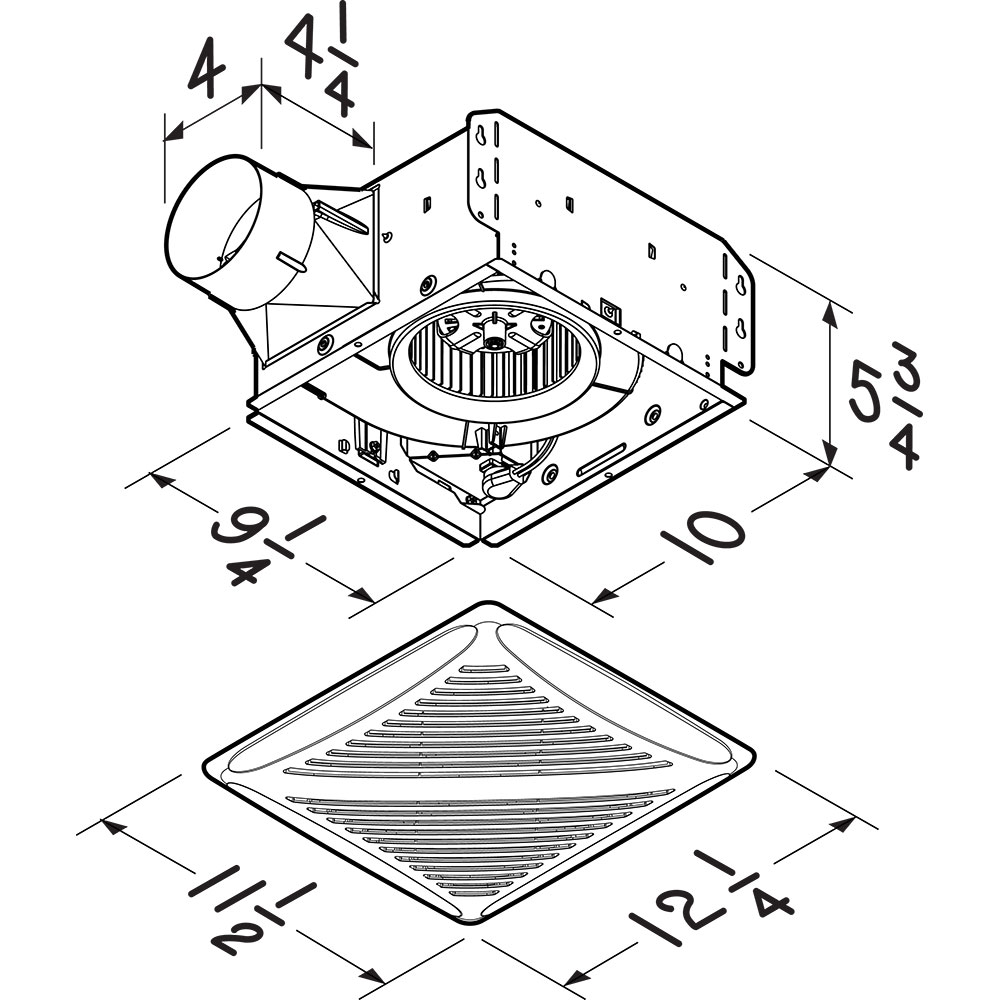

Housing Dimensions 9-1/4" x 10" x 5-3/4"
UL Listed Yes
Grille Finish White
Humidity Sensing Yes
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available Yes
Room Side Installation Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 105
Rated Amps 0.3
Voltage 120
Can Be Used To Comply With Title 24 No
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 3 Years
High Efficiency Luminaire No
Broan FLEX Series Bathroom Ventilation Fan Installation Video
