Economy Series

NuTone® Ventilation Fan w/ Incandescent Light, White Grille, 100 CFM

The NuTone® Deluxe 100 CFM Bath Fan with Light features a motor that is permanently lubricated, surrounded by steel housing and designed for plug-in use to provide reliable operation. The fan uses one 100-Watt bulb and one 7-Watt bulb for primary and night-time lighting (sold separately). The motor operates at a sound level of 5.0 sones for efficiency.


Model:

8663RP

Features

  • 100 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths.
  • 5.0 audible Sones for privacy while using your bathroom.
  • Low Profile decorative LED luminaire for style that blends in
  • Thermally protected motor easily plugs in
  • May be wired for simultaneous or separate fan light operation
  • Tapered duct adapter with built-in damper for easy installation to 4 in. duct
  • UL listed for use in a tub/shower stall enclosure when used with GFI branch circuit
  • Powerful enough for rooms up to 90 sq. ft.
  • Permanently lubricated AC motor engineered for continuous operation
  • Specs
  • Downloads

print

CFM 100
Color Finish
Duct Size 4
ENERGY STAR® Certified No

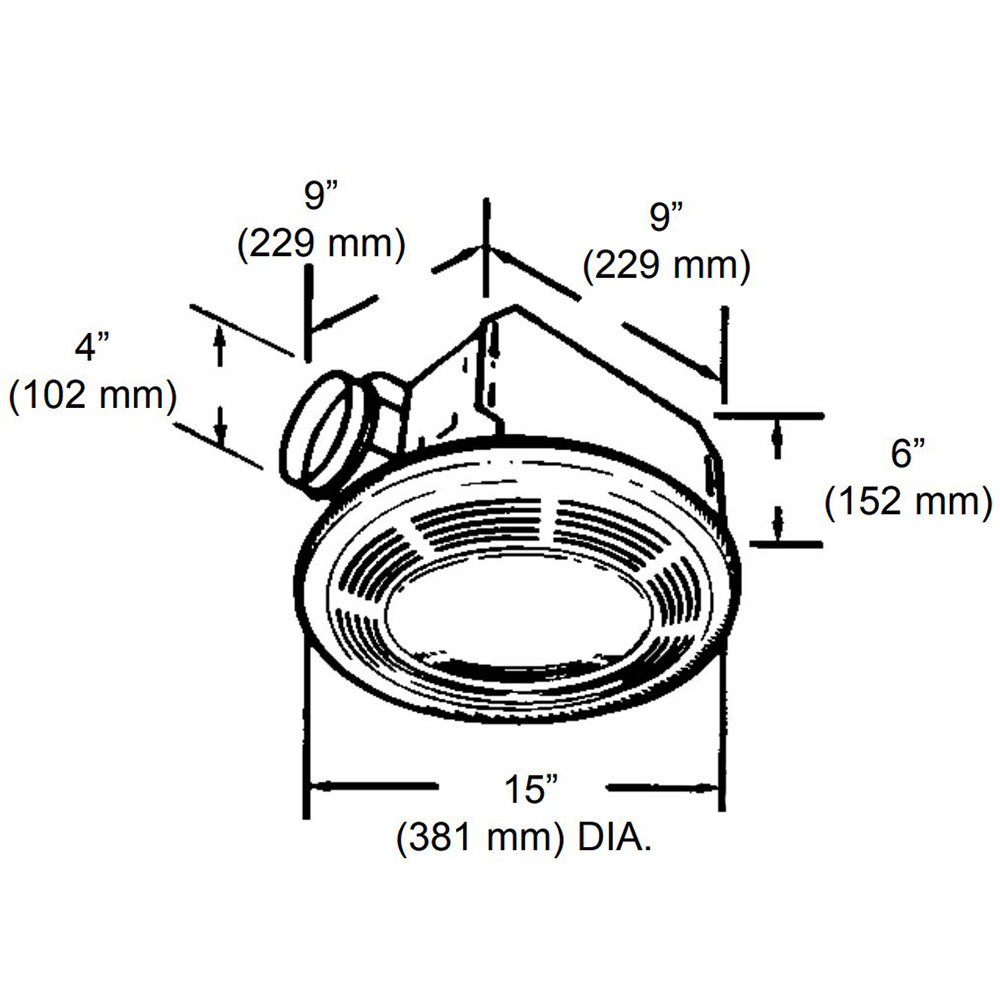

Housing Dimensions 9" x 9" x 6"
UL Listed Yes
Grille Finish White
Humidity Sensing No
Light Bulb Quantity 1
Motion Sensing No
Motor Engineered For Continuous Operation No
Night Light No
Radiation Damper Available No
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 95
Rated Amps 1.9
Voltage 120
Can Be Used To Comply With Title 24 No
Globe Lens Color Frosted Glass
Bulb (Recommended Type) 100W
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 1 Year
High Efficiency Luminaire No
