Economy Series

NuTone® 70 CFM Ventilation fan with Incandescent Light w/ Transparent Lens

The NuTone® 70 CFM Exhaust Fan with Light helps manage ventilation in rooms up to 65 sq. ft. The fan uses one 100-Watt bulb for bright illumination. The white polymeric grille provides a subtle appearance and mounting ears offer easy installation. The fan is UL listed for safe use over bathtubs or showers when installed with GFI branch circuit wiring.


Model:

769RL

Features

  • 70 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
  • 4.0 Sones for Quiet performance, enough sound to know your fan is on
  • Uses one 100-Watt bulb (purchase separately) for bright illumination
  • Includes mounting flange
  • Quiet operation with one-piece molded blower wheel and silent backdraft damper
  • Compact housing for versatile installation
  • UL listed for use in insulated ceilings (type I.C.) for your convenience
  • UL listed for safe use over bathtubs or showers when installed in a GFCI-protected branch circuit
  • Powerful enough for rooms up to 65 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation

Suggested Installation Accessories

Broan-NuTone® Wall Vent Kit,  3" or 4" Round Duct

Broan-NuTone® Wall Vent Kit, 3" or 4" Round Duct

Model:

WVK2A

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Model:

RVK1A

Flex Duct, 4-Inch, Insulated (25 ft.)

Flex Duct, 4-Inch, Insulated (25 ft.)

Model:

DT4W

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Model:

82W

  • Specs
  • Downloads

print

CFM 70
Color Finish
Duct Size 4
ENERGY STAR® certified No
Grille Length 12
Grille Width 10.75

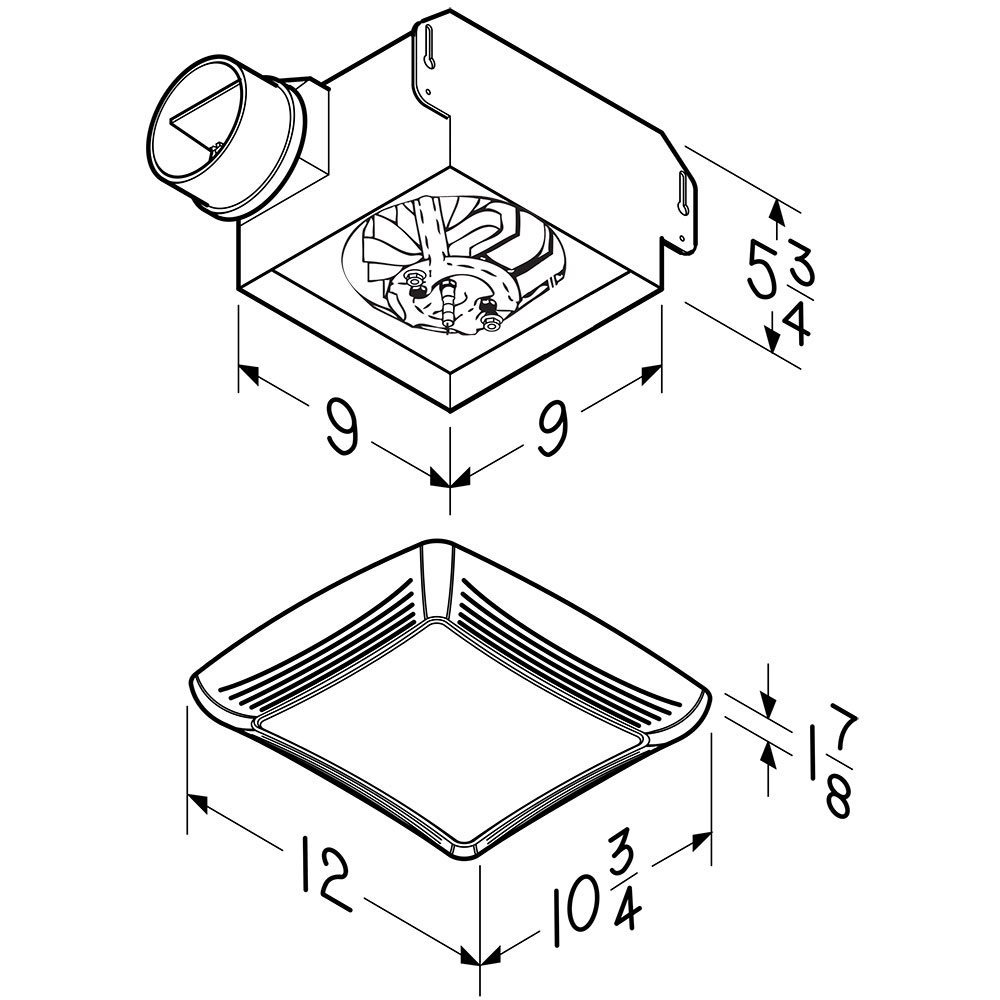

Housing Dimensions 9" x 9" x 5-3/4"
UL Listed Yes

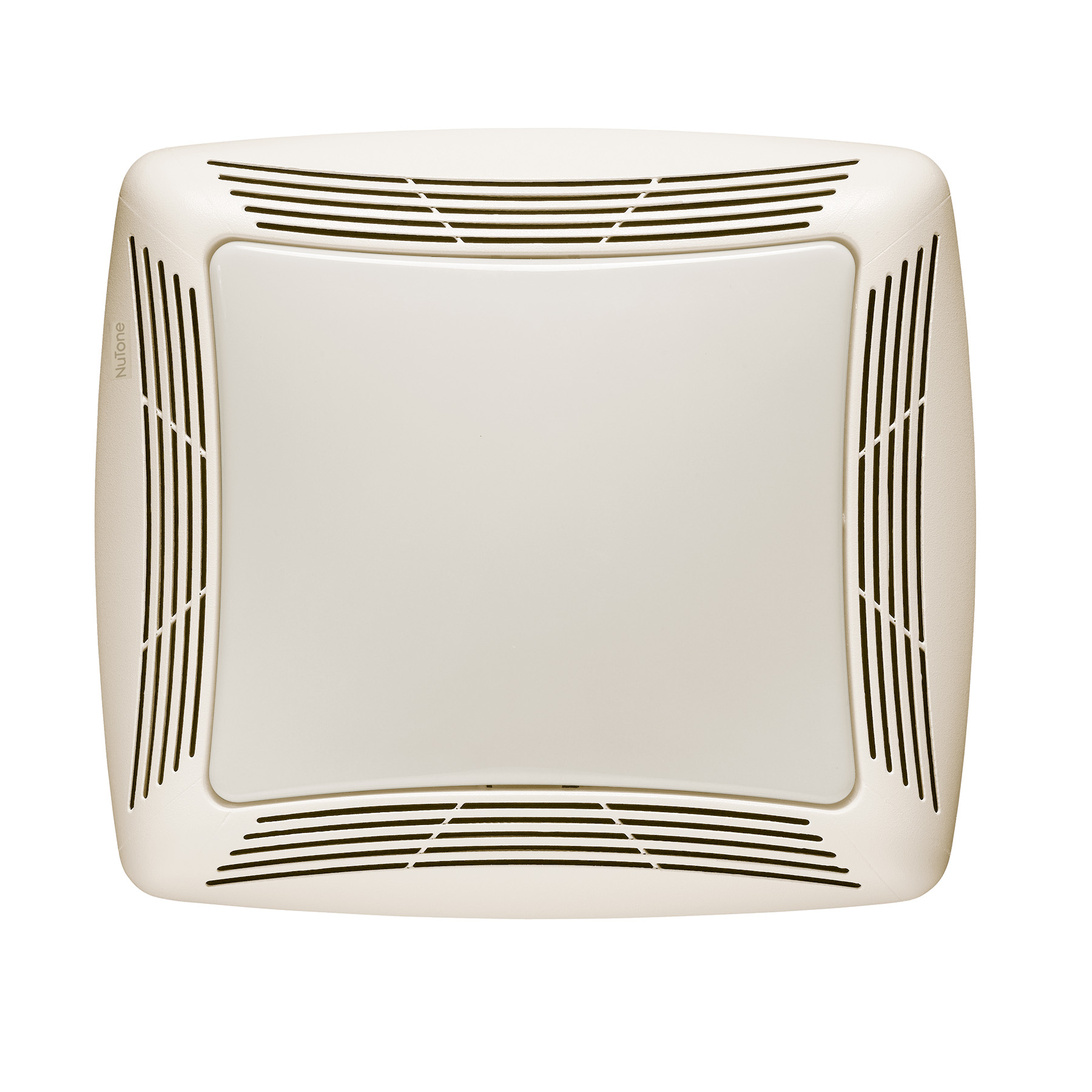

Grille Finish White
Humidity Sensing No
Light Bulb Quantity 1
Motion Sensing No
Motor Engineered For Continuous Operation No
Night Light No
Radiation Damper Available No
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 65
Rated Amps 2
Voltage 120
Can Be Used To Comply With Title 24 No
Bulb (Recommended Type) A19
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 1 Year
High Efficiency Luminaire No
