Directionally-Adjustable Heater Fan/Light

NuTone® 100 CFM Heater/Ventilation Fan/Light, 1500W Heater, with 27W Fluorescent Light, 2.0 Sones

This energy-efficient NuTone® 100 CFM Directionally Adjustable Bath Fan with Light and Heater can help you comfortably heat the bathroom in the morning without heating first the entire house. The units provide heat, light and exhaust fan power at the touch of a switch, and its 360 degree adjustable heat outlet helps you direct the heat exactly where you want it.


Model:

765HFL

Features

  • 100 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths.
  • 2.0 Sones for Quiet performance , enough sound to know your fan is on
  • PowerHeat™ design ensures powerful heating, light, and ventilation are available at the touch of a switch
  • Uses one 27-Watt fluorescent bulb for energy efficient illumination
  • 4 in. ducting and a perfect fit in 2 in. x 6 in. ceiling construction makes for an ideal choice in new or retrofit applications
  • ENERGY STAR® Certified to meet or exceed federal guidelines for energy efficiency for year-round energy and money savings
  • Suitable for use in insulated ceilings (type I.C.) for your convenience
  • Powerful for rooms up to 90 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation

Suggested Installation Accessories

Broan-NuTone® Wall Vent Kit,  3" or 4" Round Duct

Broan-NuTone® Wall Vent Kit, 3" or 4" Round Duct

Model:

WVK2A

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Model:

RVK1A

Flex Duct, 4-Inch, Insulated (25 ft.)

Flex Duct, 4-Inch, Insulated (25 ft.)

Model:

DT4W

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White

Model:

82W

  • Specs
  • Downloads

print

CFM 100
Color Finish
Duct Size 4
ENERGY STAR® Certified No
Grille Length 17.5
Grille Width 11.5

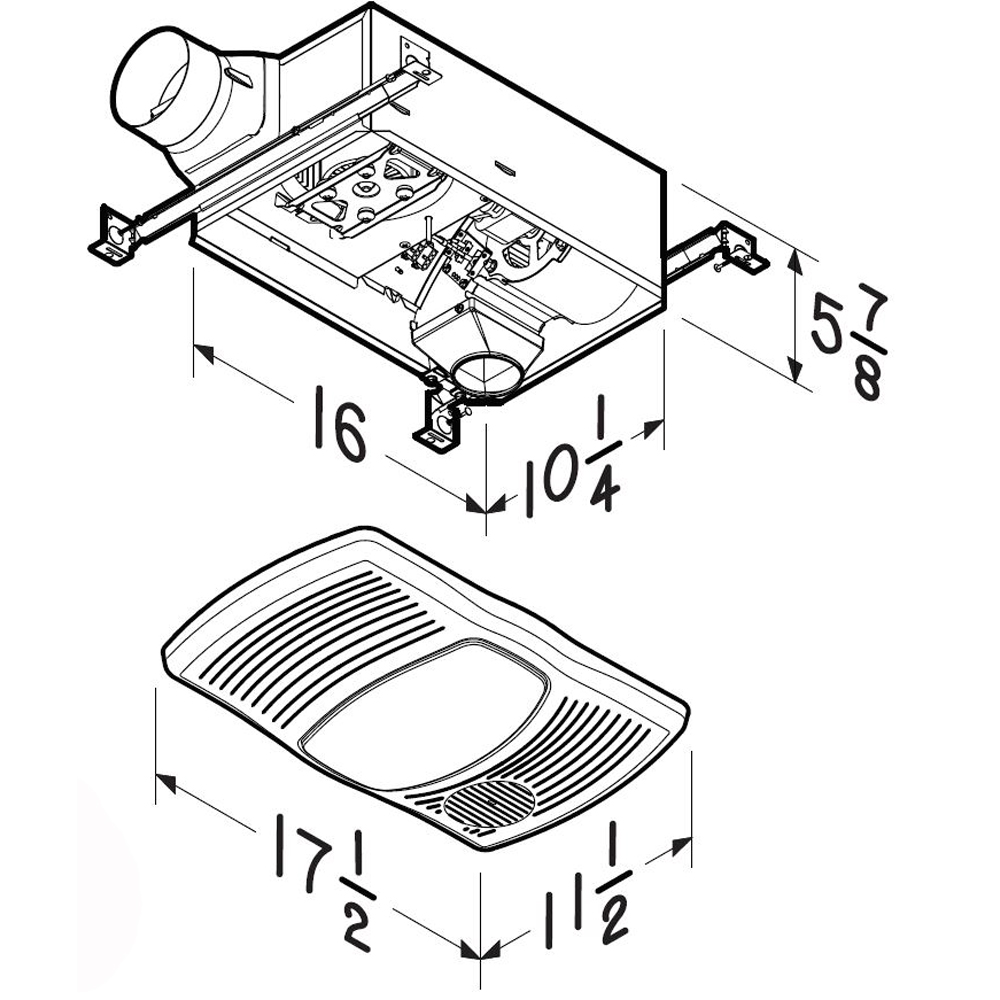

Housing Dimensions 16" x 10-1/4" x 5-7/8"
UL Listed Yes
Grille Finish White
Humidity Sensing No
Light Bulb Quantity 1
Motion Sensing No
Motor Engineered For Continuous Operation No
Night Light No
Radiation Damper Available No
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit No
Heater Wattage 1500
Recommended Room Size (Sq Ft) 95
Rated Amps 14
Voltage 120
Can Be Used To Comply With Title 24 Yes
Bulb (Recommended Type) A19
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 1 Year
High Efficiency Luminaire No
