Heater Combinations

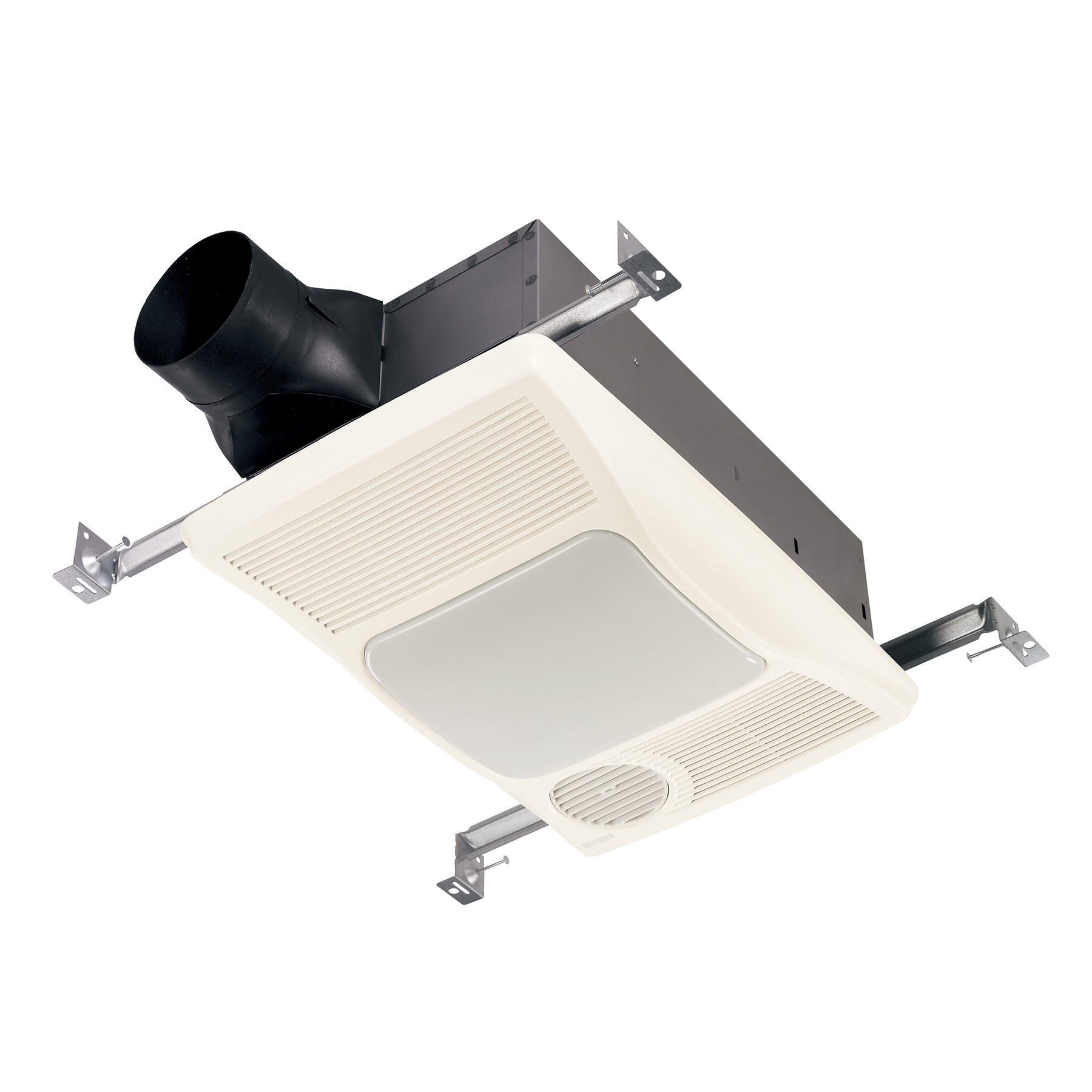

Broan® 110 CFM Bathroom Exhaust Fan w/ Heater and Light, 2.0 Sones
Help provide comfort and functionality to your bathroom with the addition of the 765H110LB exhaust ventilation fan Light with heater. This 110 CFM provides powerful airflow along with a rotatable heater grille that helps direct heat to conserve energy.
Model:
765H110LB
Features
- 110 CFM, Powerful ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 2.0 Sones for Quiet performance, enough sound to know your fan is on.
- 1500-Watt heater with 360 directionally-adjustable design so heat ends up exactly where you want it
- Brighter white grille matches any decor
- Select-your-bulb capacity and type (bulb not included)
- Fits in 2" x 6" ceiling construction
- Rugged galvanized steel housing stands up to moisture
- All air and sound ratings are HVI Certified
Suggested Installation Accessories
Broan-NuTone® Wall Vent Kit, 3" or 4" Round Duct
Model:
WVK2A
Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.
Model:
RVK1A
Flex Duct, 4-Inch, Insulated (25 ft.)
Model:
DT4W
Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack
Model:
82W
- Specs
- Downloads
| CFM | 110 |
|---|---|
| Color Finish |
|
| Duct Size | 4 |
| ENERGY STAR® certified | No |
| Grille Length | 17.5 |
| Grille Width | 11.5 |

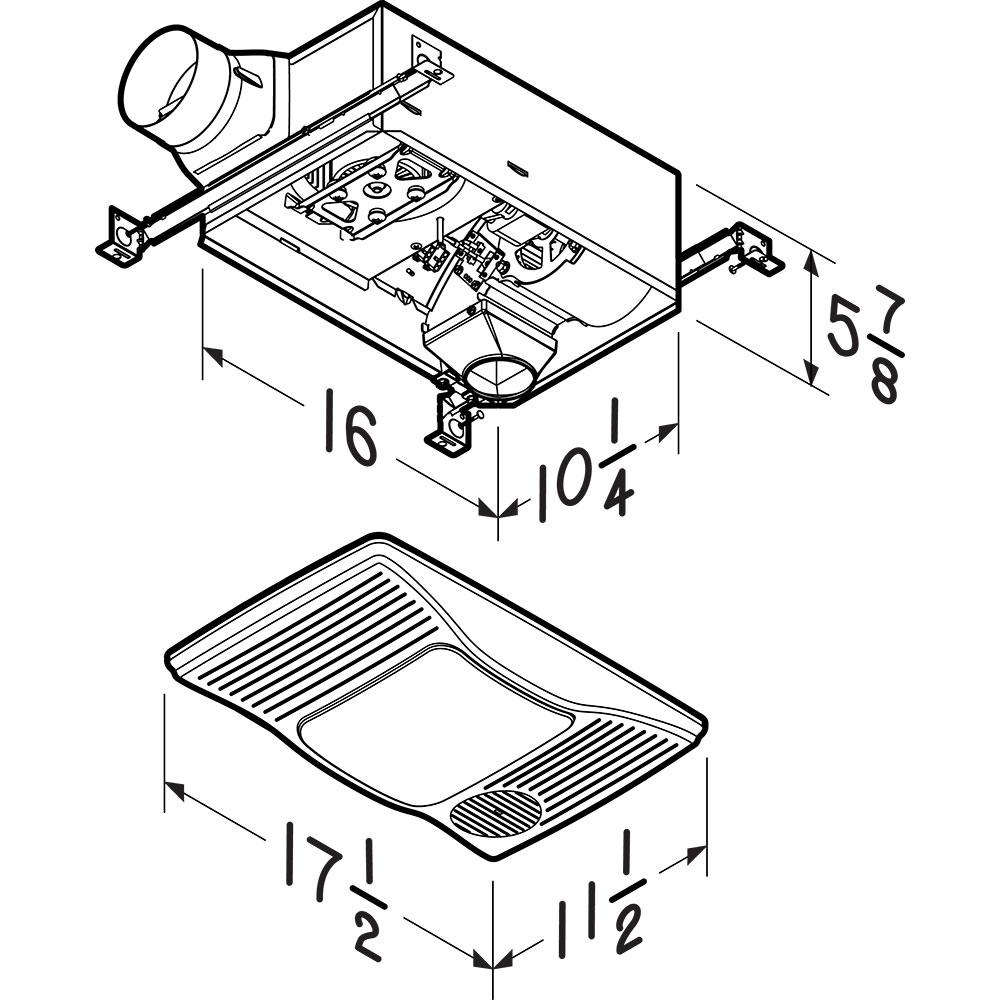

| Housing Dimensions | 16" x 10-1/4" x 5-7/8" |
| Sound Level (Sones) | 2 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
| Heater Wattage | 1500 |
| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 14 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | E26 |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
