Broan® Economy Series

Broan® 100 CFM Ventilation Fan with Light, 4.5 Sones

The 100 CFM White Exhaust Fan with Light can help ventilate your bathroom. The fan features quiet operation and 100-watt light capacity (bulb not included). It vents moisture in bathrooms up to 90 sq. ft. and features steel construction for durability. Its white grille can provide a sleek, appealing look in your bathroom.


Model:

696

Features

  • 100 CFM, Powerful ventilation to remove moisture and reduce the risk of mold or mildew in most full baths.
  • 4.5 Audible sones for privacy with using your bathroom
  • Designer styled white polymeric grille complements virtually any decor
  • Features 100-watt light capacity (bulb not included)
  • 15-amp circuit acceptable
  • Steel housing provides durability
  • Fits in 2 in. x 6 in. ceiling construction
  • UL listed for use in insulated ceilings (type I.C.)
  • Specs
  • Downloads

print

CFM 100
Color Finish
Duct Size 4
ENERGY STAR® Certified No
Grille Length 16.75
Grille Width 10.625

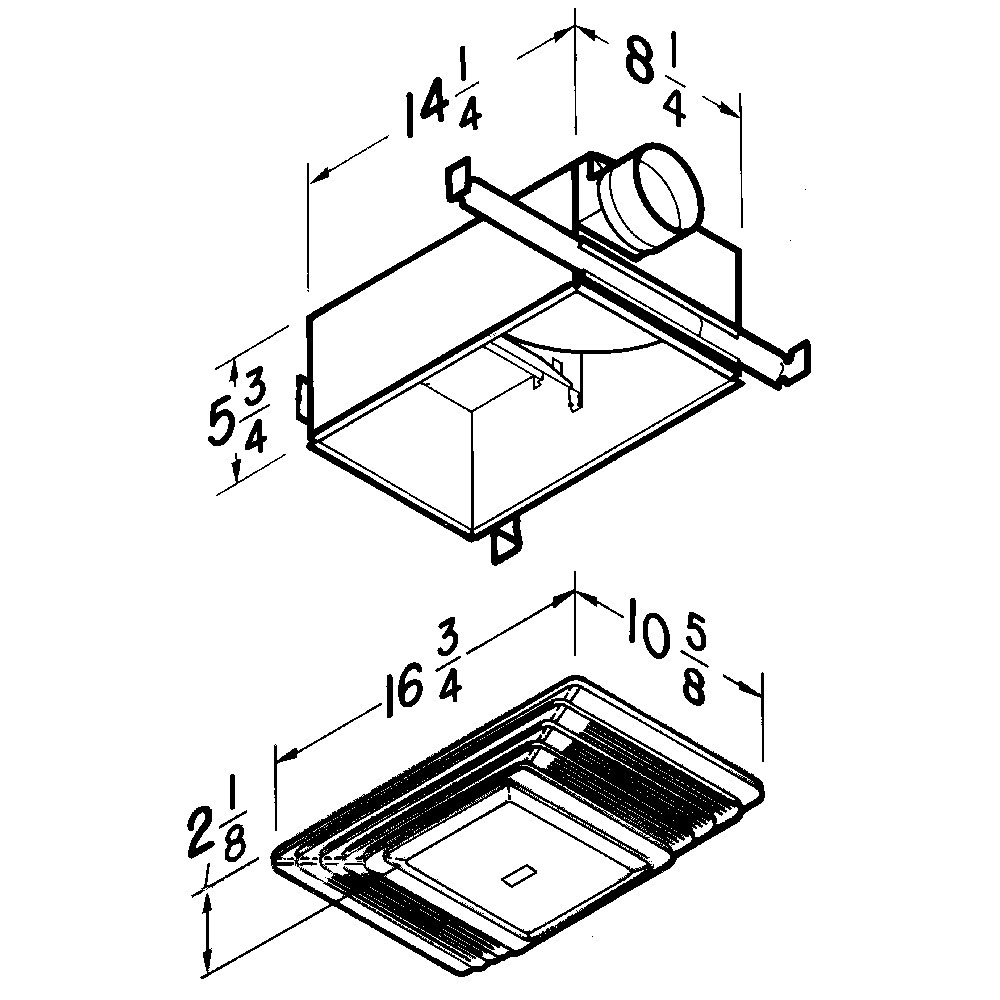

Housing Dimensions 14-1/4" x 8-1/4" x 5-3/4"
UL Listed Yes
Grille Finish White
Humidity Sensing No
Light Bulb Quantity 1
Motion Sensing No
Motor Engineered For Continuous Operation No
Night Light No
Radiation Damper Available No
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit No
Heater Wattage 0
Recommended Room Size (Sq Ft) 90
Rated Amps 2
Voltage 120
Can Be Used To Comply With Title 24 No
Bulb (Recommended Type) 100W bulb
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 1 Year
