Decorative Fan/Lights
NuTone® 70 CFM Ventilation Fan with Light, White Polymeric Lens and Grille, 4.0 Sones
Reduce moisture from the air in your bathroom with the NuTone® 668RP. This 70 CFM Bath Fan features a 100w light to brighten any room. This fan features a white textured polymeric grille and plastic lens to blend in with the ceiling. The fan can be installed over a shower or tub when it is connected to a GFI protected branch circuit for expanded installation options.
Model:
668RP
Features
- 70 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
- 4.0 Audible Sones for privacy while using your bathroom
- Low Profile decorative LED luminaire for style that blends in
- Uses one 100-Watt bulb (not included); light lens easily snaps on and off
- Includes adjustable hanger bars to attach to 16 in. or 24 in. O.C. joists in new construction
- Installs in 2 in. x 6 in. construction includes adjustable hanger bars to attach to 16 in. or 24 in. O.C. joists in new construction
- Mounting brackets adjust for ceiling thickness up to 3/4 in.
- Type IC suitable for use under thermal insulation
- Can be installed over a tub or shower when connected in a GFI protected branch circuit
- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
Suggested Installation Accessories
Broan-NuTone® Wall Vent Kit, 3" or 4" Round Duct
Model:
WVK2A
Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.
Model:
RVK1A
Flex Duct, 4-Inch, Insulated (25 ft.)
Model:
DT4W
Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack
Model:
82W
- Specs
- Downloads
| CFM | 70 |
|---|---|
| Color Finish |
|
| Duct Size | 4 |
| ENERGY STAR® certified | No |
| Grille Length | 16.25 |
| Grille Width | 9.875 |

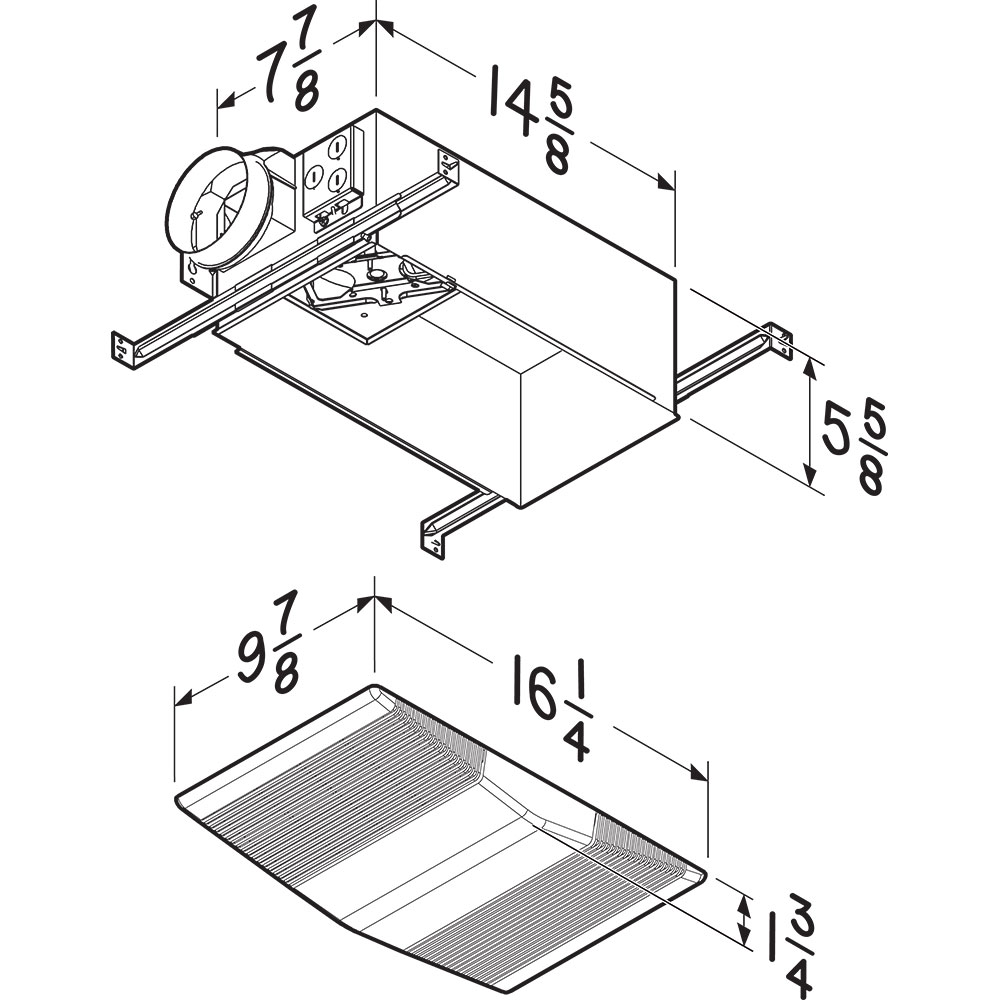

| Housing Dimensions | 14-3/4" x 7-7/8" x 5-5/8" |
| Sound Level (Sones) | 4 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 65 |
| Rated Amps | 2 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Globe Lens Color | Translucent white polymeric |
| Bulb (Recommended Type) | 100W |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
