Heater Combinations
Broan® 70 CFM, Heater/Fan Combo, 4.0 Sones
Expect more from your bath fan with a the addition of a heater. The Broan® 658 offers customers the ability to heat a small space such as a bathroom in a short amount of time. Not only does the fan properly ventilate the space with an operation of 70 CFM at a sound level of 4.0, it creates a level of comfort in a small space. The included adjustable mounting brackets, installation is quick, easy and always secure.
Model:
658
Features
- 70 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
- 4.0 audible sones for privacy while using your bathroom.
- Includes one 1,300-watt heater
- Fits in 2 in. x 6 in. ceiling construction
- UL listed for use in insulated ceilings (type I.C.) for your convenience
- Vents moisture in bathrooms up to 65 sq. ft.
- Brighter White grille matches most common ceiling paint colors
- Steel housing provides durability
Suggested Installation Accessories
Broan-NuTone® Wall Vent Kit, 3" or 4" Round Duct
Model:
WVK2A
Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.
Model:
RVK1A
Flex Duct, 4-Inch, Insulated (25 ft.)
Model:
DT4W
Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White
Model:
82W
- Specs
- Downloads
| CFM | 70 |
|---|---|
| Color Finish |
|
| Duct Size | 4 |
| ENERGY STAR® Certified | No |
| Grille Length | 16.75 |
| Grille Width | 10.625 |

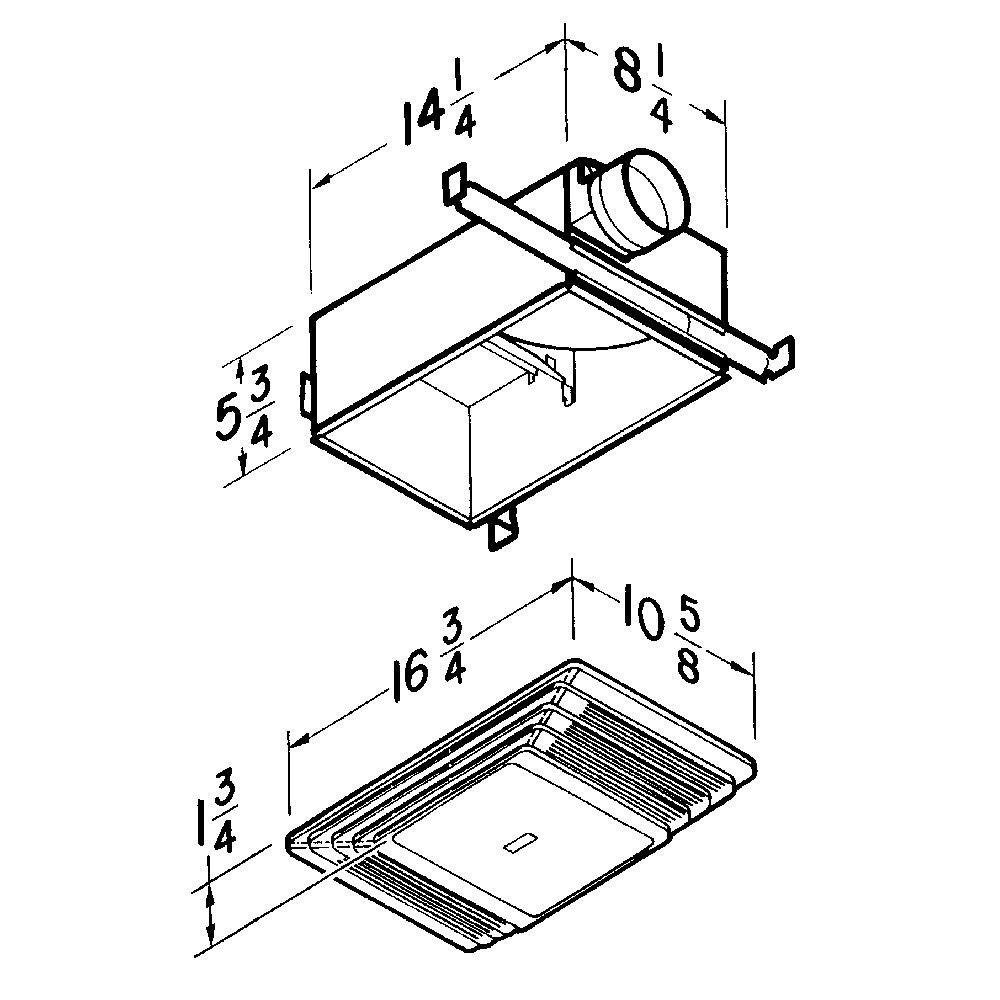

| Housing Dimensions | 14-1/4" x 8-1/4" x 5-3/4" |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
| Heater Wattage | 1300 |
| Recommended Room Size (Sq Ft) | 65 |
| Rated Amps | 11.9 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 1 Year |
