Utility Fans
Broan® 70 CFM Through-Wall Ventilation Fan
Say goodbye to unbearable heat and humidity in the garage, unwanted smells in the kitchen and odors in the laundry room, rec room or garage. The Broan® 70 CFM Through-Wall Ventilation Fan is the perfect solution for rooms up to 65 sq. ft, including a one car garage, or use for spot ventilation near areas such as a work bench, garbage can, car, or lawn mower. The durable galvanized steel housing provides superior protection against the elements and wear and tear. It features a built-in exterior wall cap/vent with bird screen, which reduces install time, no duct work needed. Customize your fan with one of Broan-NuTone’s wall controls. For automatic operation, choose from a humidity or motion sensing control. To automatically turn off the fan after you leave the room or garage, pair the fan with a delay-off or countdown timer. (Wall controls sold separately)
Model:
512M
Features
Compatible with Overture™ Connected IAQ System
UL Listed
- 70 CFM - ventilate up to 65 sq. ft.
- 6.0 Audible Sones
- Fight heat, humidity buildup and unwanted smells inside the garage, kitchen, laundry or rec room

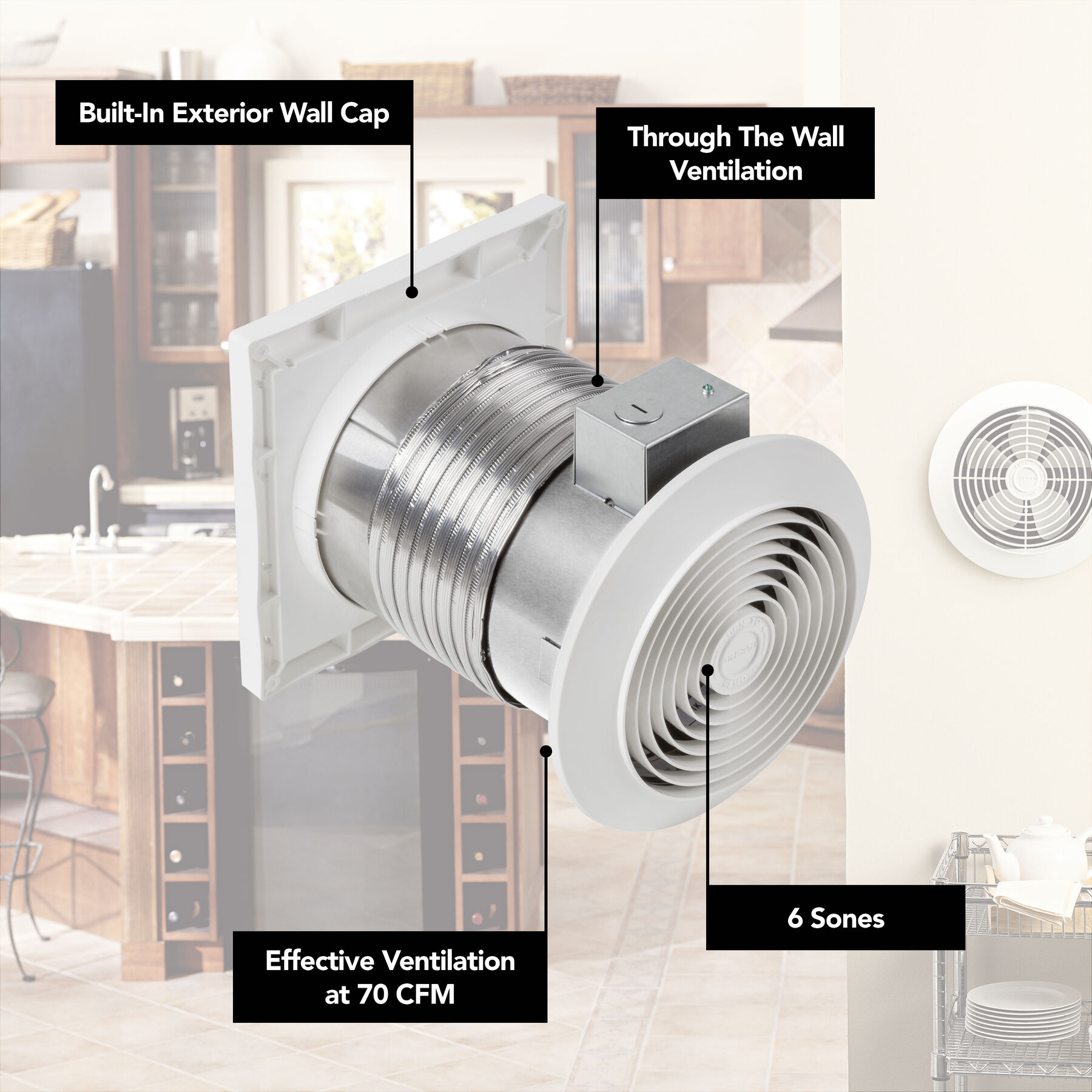

- Built-in exterior wall cap/vent, no ducting needed for installation
- Effectively ventilate a one car garage, either attached or detached from the home
- Use for spot ventilation in a larger garage near a work bench, car, garbage can, lawn mower, or other spaces within the garage
- Tested and approved for extreme hot and cold weather
- Motor assembly offers a fast and easy twist-lock installation
- Housing adjusts to fit walls from 5 ¼” – 10” thick
- Galvanized steel housing for superior protection against the elements and wear and tear
- Pair this fan with a motion or humidity sensing wall control to provide automatic ventilation (sold separately)
- Install with a delay-off or countdown timer wall control to automatically turn off the fan after leaving the room/garage (sold separately)
- Specs
- Downloads
| CFM | 70 |
|---|---|
| Color Finish |
|
| Duct Size | 6 |
| ENERGY STAR® certified | No |

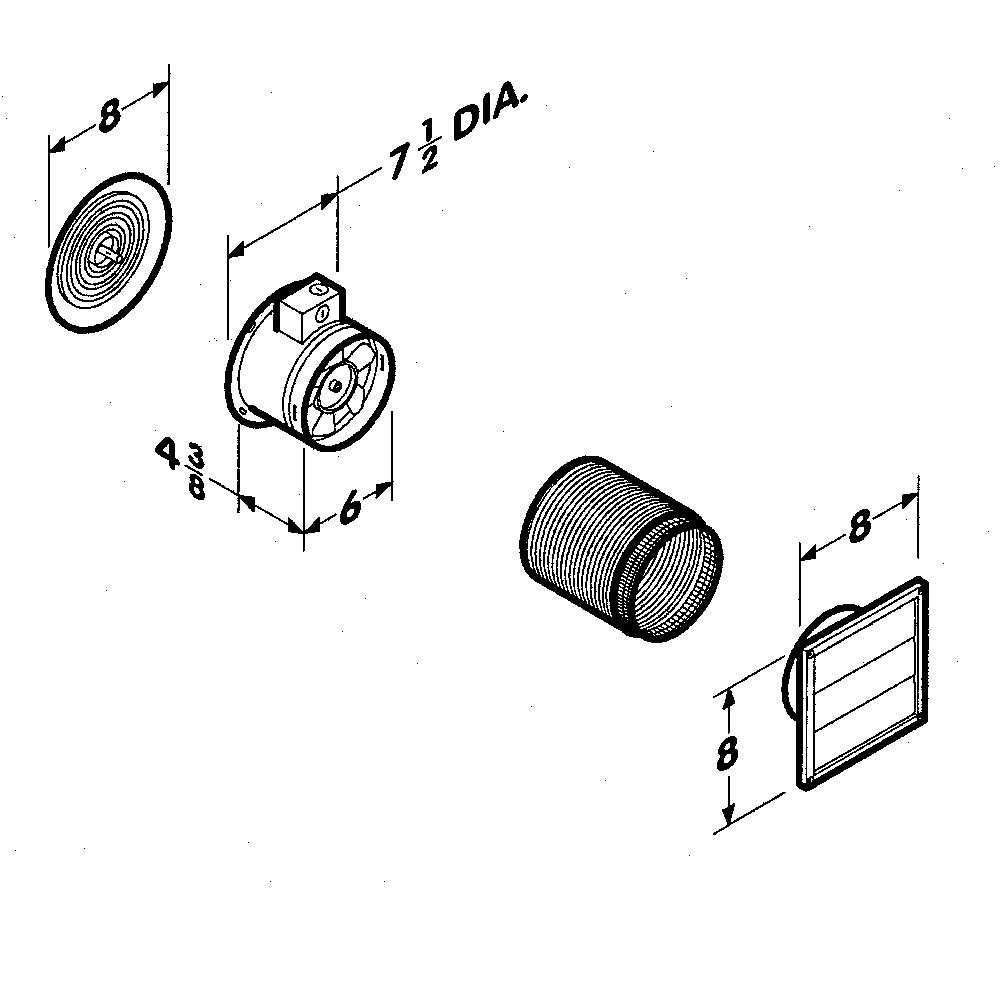

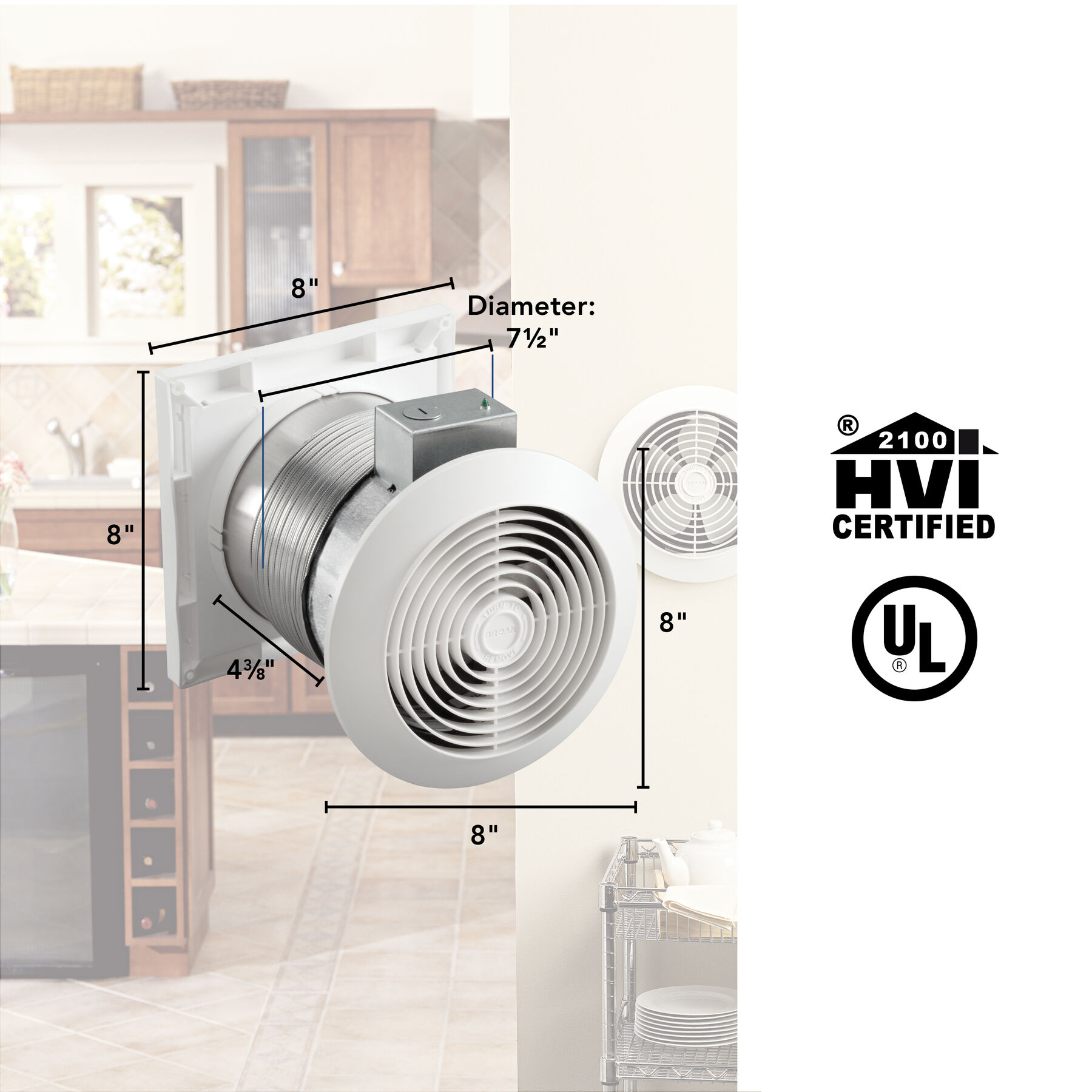

| Housing Dimensions | 6" Round x 4-3/8" |
| Sound Level (Sones) | 6 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 65 |
| Rated Amps | 0.7 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
