Utility Fans

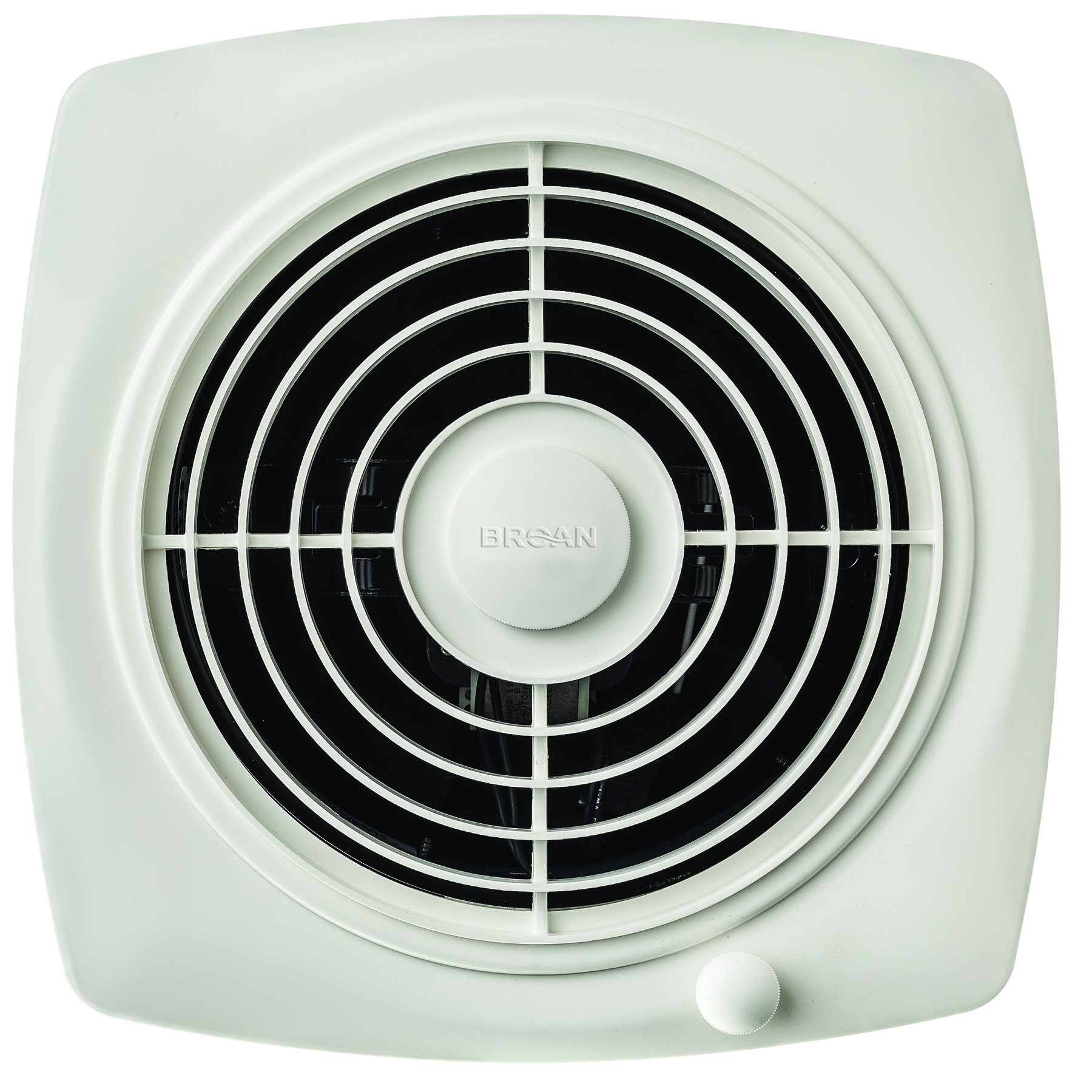

200 CFM Through-the-Wall Exhaust Fan with On/Off Switch
The Broan® Direct Discharge 200 CFM Utility Through-Wall Fan provides effective ventilation. This fan helps eliminate smoke from recreation rooms and workshops, humidity from laundry rooms and cooking fumes from kitchens. It is designed with an integrated on/off rotary switch to prevent the need for wall switch wiring. It features a permanently lubricated motor with easy, twist-lock installation. The fan is adjustable to fit walls from 4-1/2 in. to 9-1/2 in. thick, and you can paint its white grille to match your decor.
Model:
509S
Features
- 200 CFM, Powerful ventilation designed for larger rooms or master baths, eliminates moisture, pollutants, and odors from larger rooms
- 8.5 audible sones provides powerful ventilation
- On/off rotary switch is integrated to prevent the need for wall switch wiring
- 8 in. through-wall design can be installed in walls 4-1/2 in. to 9-1/2 in. thick
- Specs
- Downloads
| CFM | 200 |
|---|---|
| Color Finish |
|
| Duct Size | 8 |
| ENERGY STAR® certified | No |

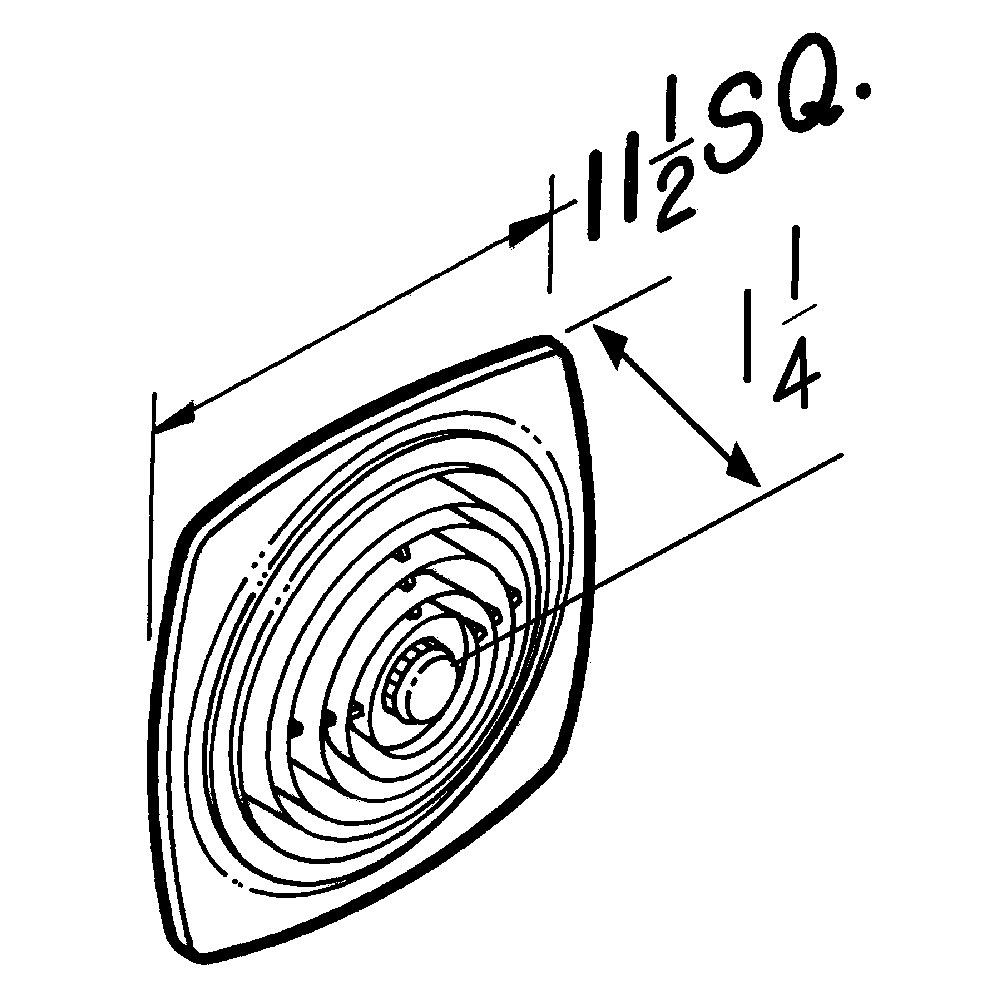

| Grille Length | 11.5 |
| Grille Width | 11.5 |

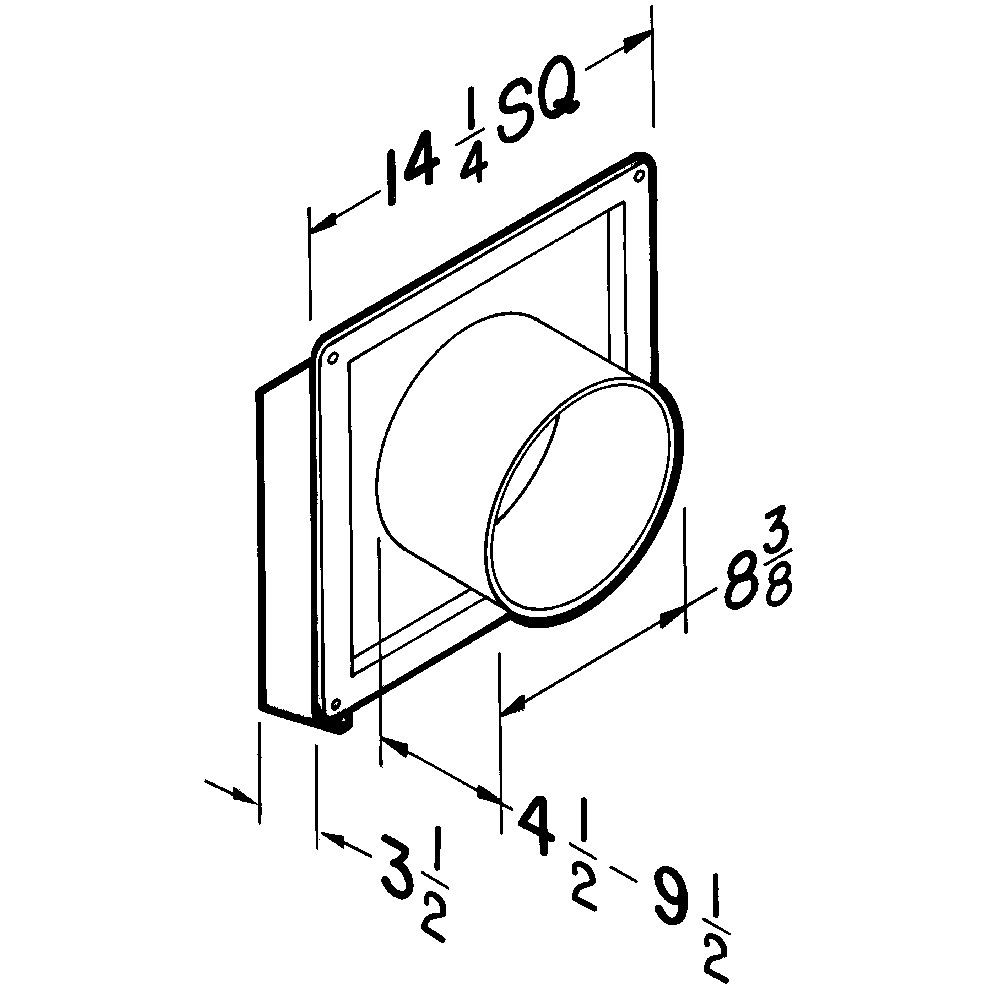

| Housing Dimensions | 14-1/4" x 14-1/4" |
| Sound Level (Sones) | 8.5 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 170 |
| Rated Amps | 1.8 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
