Utility Fans
Broan® 10-Inch Vertical Discharge Exhaust Vent Fan, 330 CFM
The Broan® 504 Ventilation fan is for managing moisture by eliminating humidity from laundry rooms, tobacco smoke form recreation rooms and workshops and cooking fumes from kitchens. The 330 CFM fan installs easily between ceiling joists and the white polymeric grille can be painted to match your decor. The fan fits a 10 in. round duct and can be used in an 8 in.
Model:
504
Features
- 330 CFM, Whole home or Commercial Ventilation
- 8.0 Audible Sones for privacy while using your bathroom
- Adjustable housing fits walls from 4-1/2 in. to 9-1/2 in. thick
- Foam-insulated door for energy efficiency
- "twist-lock" for fast easy installation
- Powerful enough for rooms up to 425 sq. ft.
- Brighter white grilles blend in to match most common ceiling paint
- Motor assembly is removable and permanently lubricated for long lasting use
- Specs
- Downloads
| CFM | 330 |
|---|---|
| Color Finish |
|
| Duct Size | 10 |
| ENERGY STAR® certified | No |
| Grille Length | 13.5 |
| Grille Width | 13.5 |

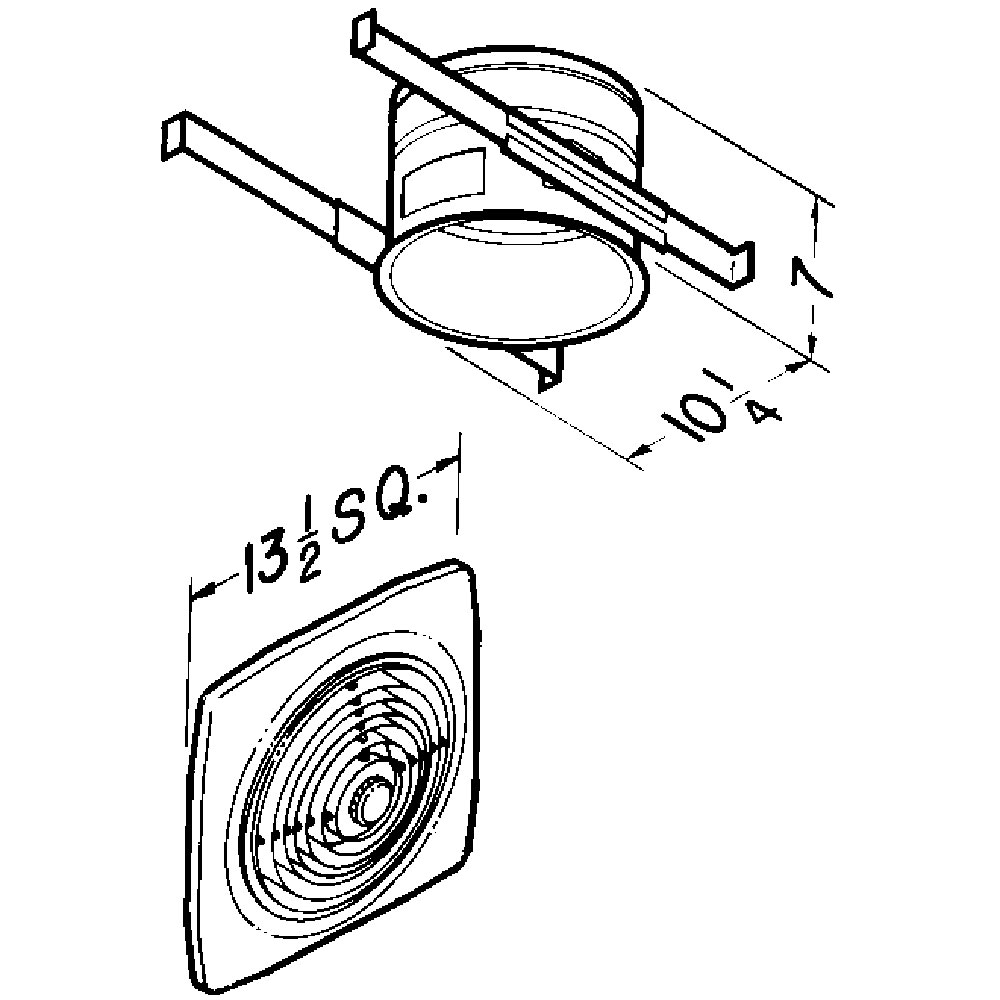

| Housing Dimensions | 10-1/4" Round x 7" |
| Sound Level (Sones) | 8.0 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
| Heater Wattage | 0 |
| Rated Amps | 1.7 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 8" |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
