Broan® 8-Inch, Side Discharge Exhaust Vent Fan, 160 CFM

The Broan® 160 CFM Side-Discharge Exhaust Fan can be mounted on either the ceiling or the wall to eliminate humidity and tobacco smoke from recreation rooms and workshops or to help remove cooking odors from kitchens. The fan is 8 in. in diameter and features a low-profile white polymeric grille that can be painted to match your decor. A built-in damper helps prevent back drafts.


Model:

503

Features

  • 160 CFM, Powerful ventilation designed for larger rooms or master baths, eliminates moisture, pollutants, and odors form larger rooms
  • 5.0 Audible Sones for privacy while using your bathroom
  • Pull-chain opens the housing door and turns on the fan with no wall switch wiring required
  • Adjustable housing fits walls from 4-1/2 in. to 9-1/2 in. thick
  • Motor assembles quickly and easily with twist-lock installation
  • Powerful enough for rooms up to () sq. ft.
  • Contemporary-styled grille complements modern decor
  • Motor assembly is removable and permanently lubricated for long lasting use
  • Specs
  • Downloads

print

CFM 160
Color Finish
ENERGY STAR® certified No
Grille Length 11.5
Grille Width 11.5

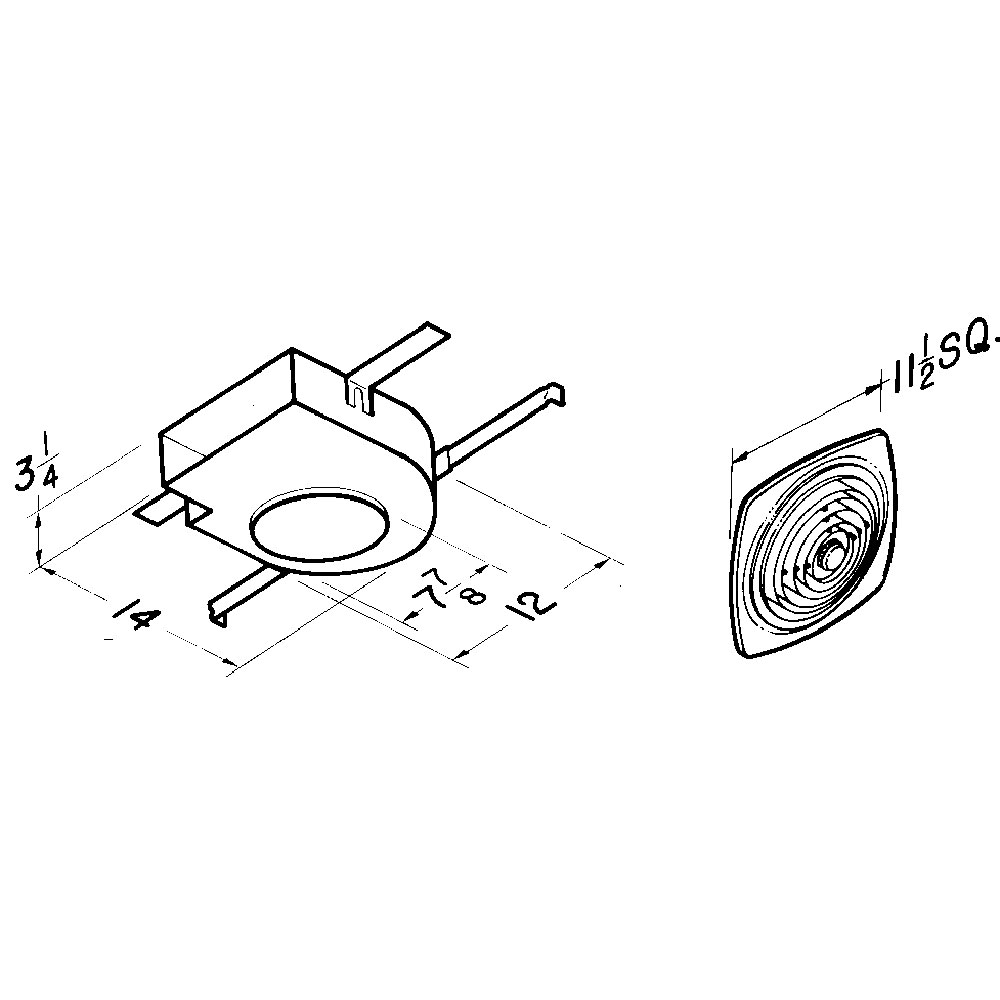

Housing Dimensions 14" x 12" 3-1/4"
UL Listed Yes
Grille Finish White
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation No
Night Light No
Radiation Damper Available No
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit No
Heater Wattage 0
Rated Amps 1.5
Voltage 120
Can Be Used To Comply With Title 24 No
Minimum Construction Space Required 2" x 4"
Manufacturer Warranty 1 Year
