Bath Fan Project Packs
Broan® 50 CFM Motor Assembly and Grille Finish Pack, 4.0 Sones
Project packs are ideal for Contractors and Builders who have yet to pick out the final product. With the housing for the fan sold separately from the grille and motor, contractors are able to continue with construction and not have to worry about damaging, losing or storing the product. Once all construction is complete, the purchase of a finish pack, 6 grilles and 6 motor/blower wheels, can be made to add the finishing touches to the room.
Model:
1688F
Housing Packs Compatible to this Finish Pack
Features
- Includes grilles and motor/blower assemblies
- Galvanized steel housing
- Can be mounted in the ceiling or the wall
- Housing packs sold separately
- UL listed for use over the tub
Suggested Installation Accessories
- Specs
- Downloads
| CFM | 50 |
|---|---|
| Color Finish |
|
| Duct Size | 3 |
| ENERGY STAR® certified | No |
| Grille Length | 9 |
| Grille Width | 9.25 |

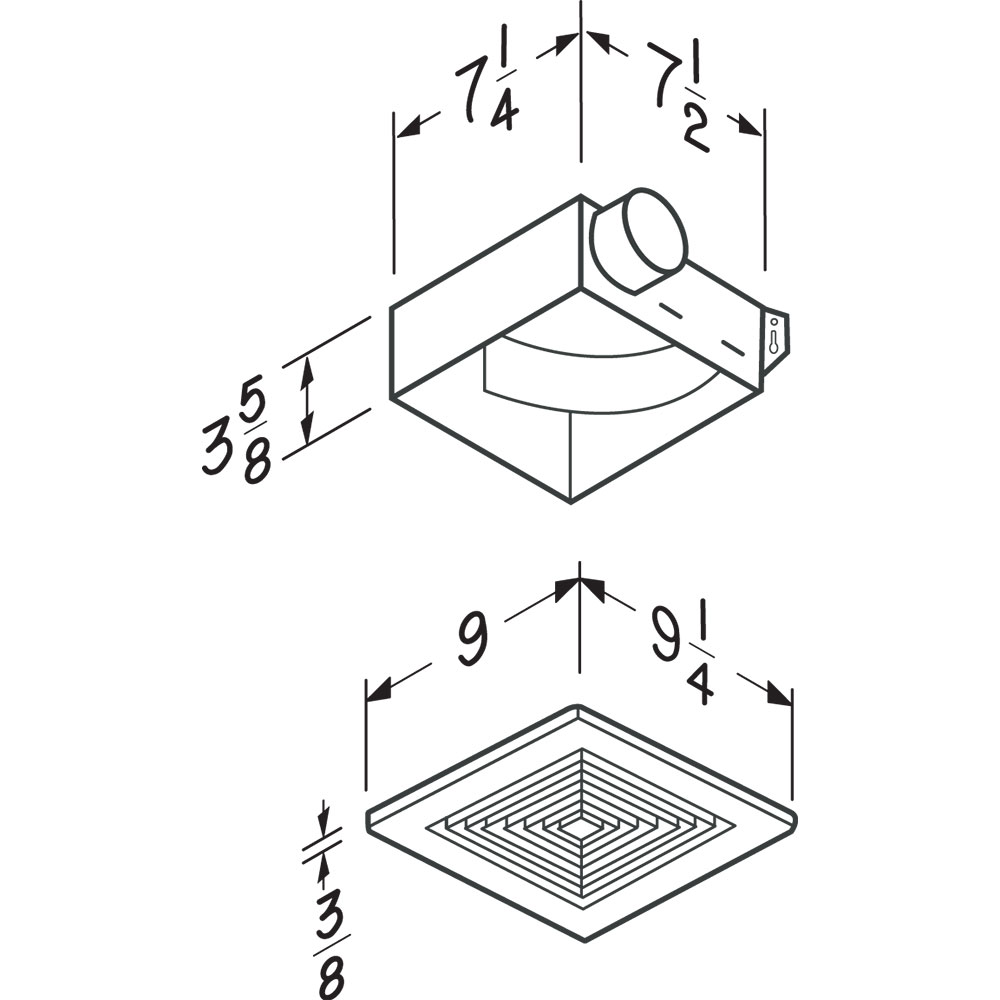

| Housing Dimensions | 7-1/2" x 7-1/4" x 3-5/8" |
| Sound Level (Sones) | 4 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 45 |
| Rated Amps | 0.9 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 4" |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
