Heater Combinations

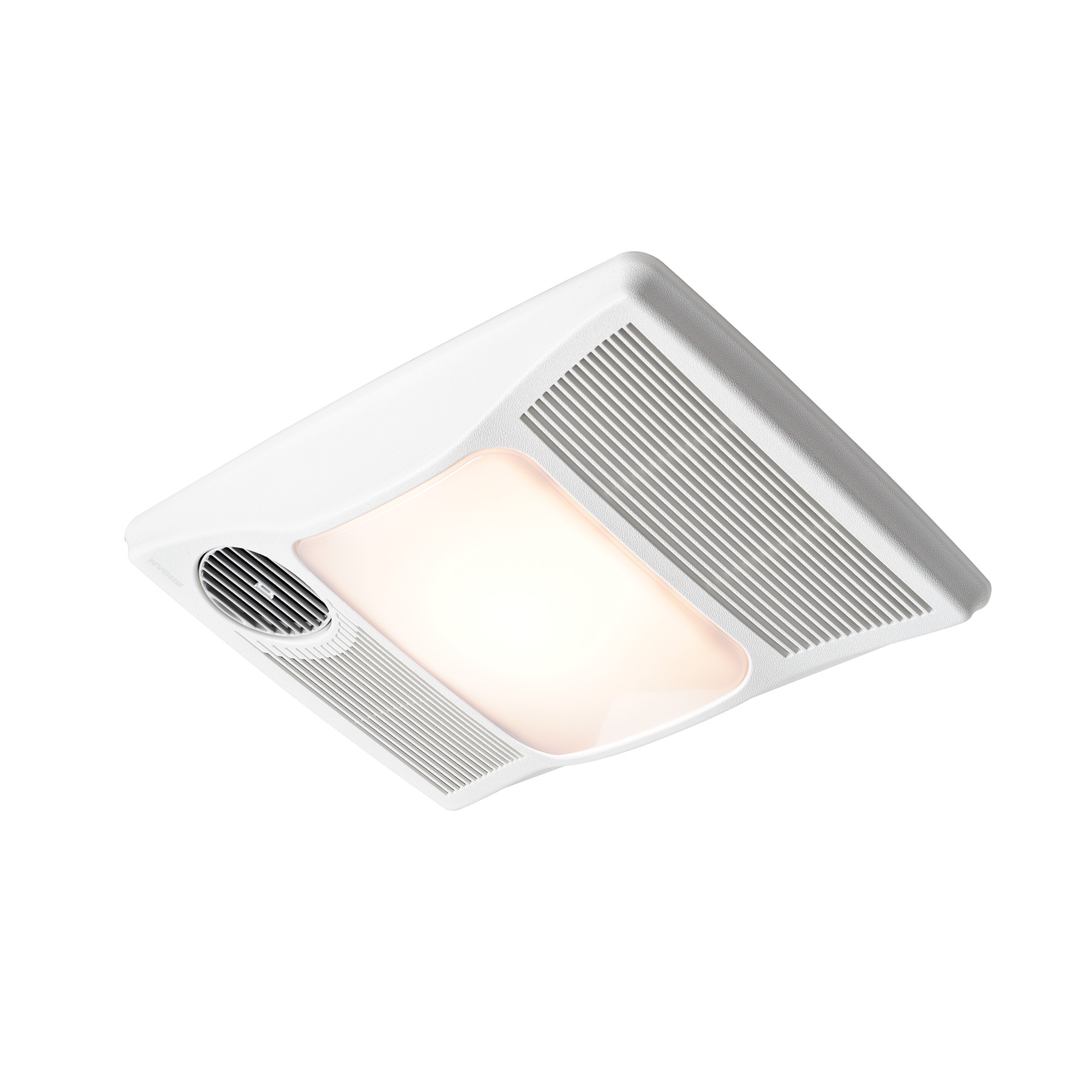

Broan® 100 CFM Heater/Ventilation Fan/Light, 1500W Heater, 100W Incandescent Light, 2.0 Sones
Expect more from your bath fan with a the addition of a light and a heater. The Broan® 100HL offers customers the ability to heat a small space such as a bathroom in a short amount of time. With the addition of a light, this fan can contribute 3 things to a small area making it comfortable and properly ventilated. With the included adjustable mounting brackets, installation is quick, easy and always secure. With a 360 directionally-adjustable heat outlet, you can target the heat to where you want it
Model:
100HL
Features
- 100 CFM, Powerful ventilation to remove moisture and reduce the risk of mold or mildew in most full baths.
- 2.0 Sones for Quiet performance, enough sound to know your fan is on.
- PowerHeat™ design ensures powerful heating, light, and ventilation are available at the touch of a switch
- Quiet, high-output 1500-watt heater with exclusive directionally adjustable design
- 4" ducting for new construction or retrofit
- Requires a dedicated 20 amp circuit
- Fits in 2" x 6" ceiling construction

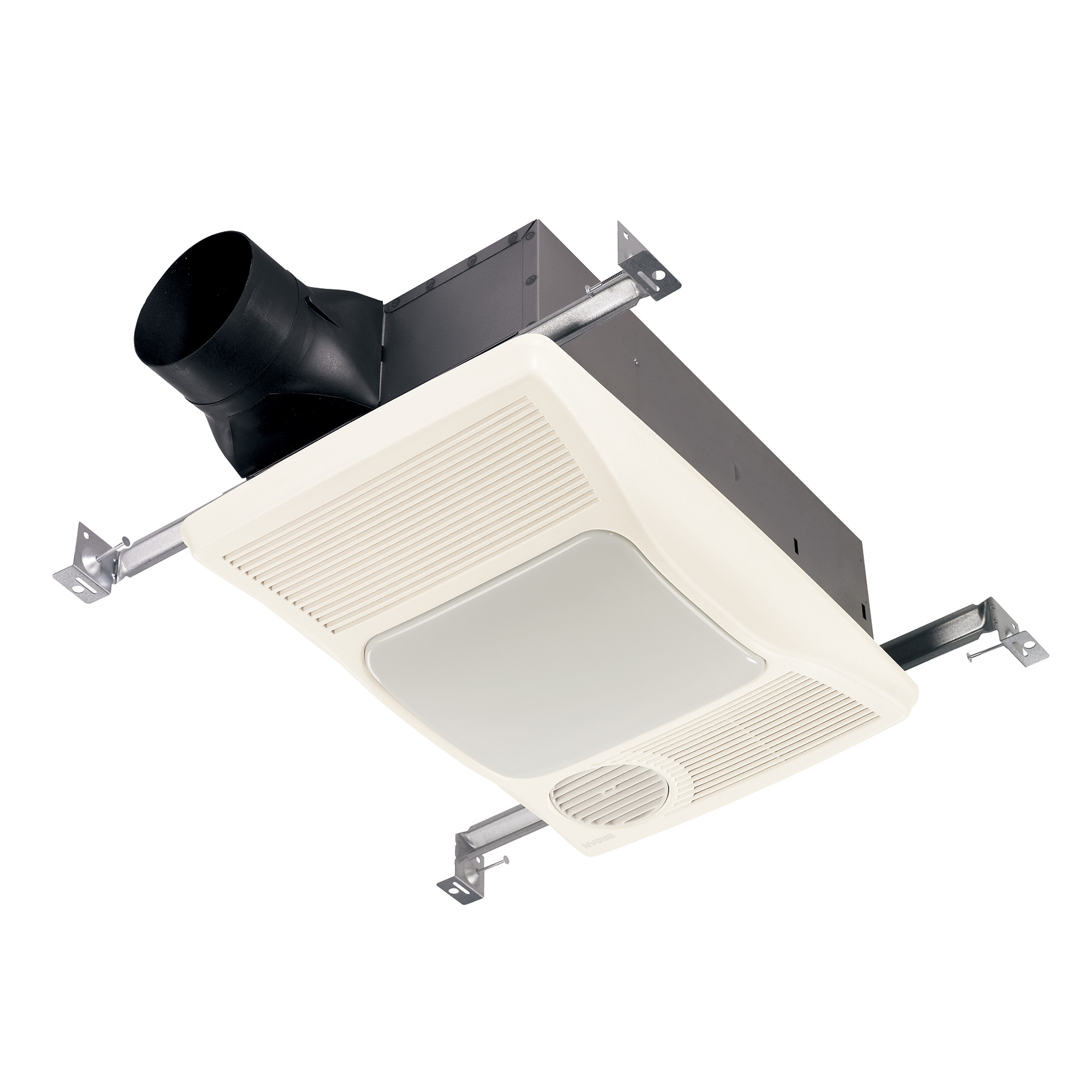

- Designed for easy installation – includes new hanger bars
- Choice of Standard E26 base bulb A19 shape (100HL) or energy-efficient, 27 watt, GU24 base, fluorescent bulb (100HFL)
- Multi-function wall switches sold separately
- UL listed for use in insulated ceilings (Type IC)
Suggested Installation Accessories
Broan-NuTone® Wall Vent Kit, 3" or 4" Round Duct
Model:
WVK2A
Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.
Model:
RVK1A
Flex Duct, 4-Inch, Insulated (25 ft.)
Model:
DT4W
Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack
Model:
82W
- Specs
- Downloads
| CFM | 100 |
|---|---|
| Color Finish |
|
| Duct Size | 4 |
| ENERGY STAR® certified | No |
| Grille Length | 17.5 |
| Grille Width | 11.5 |

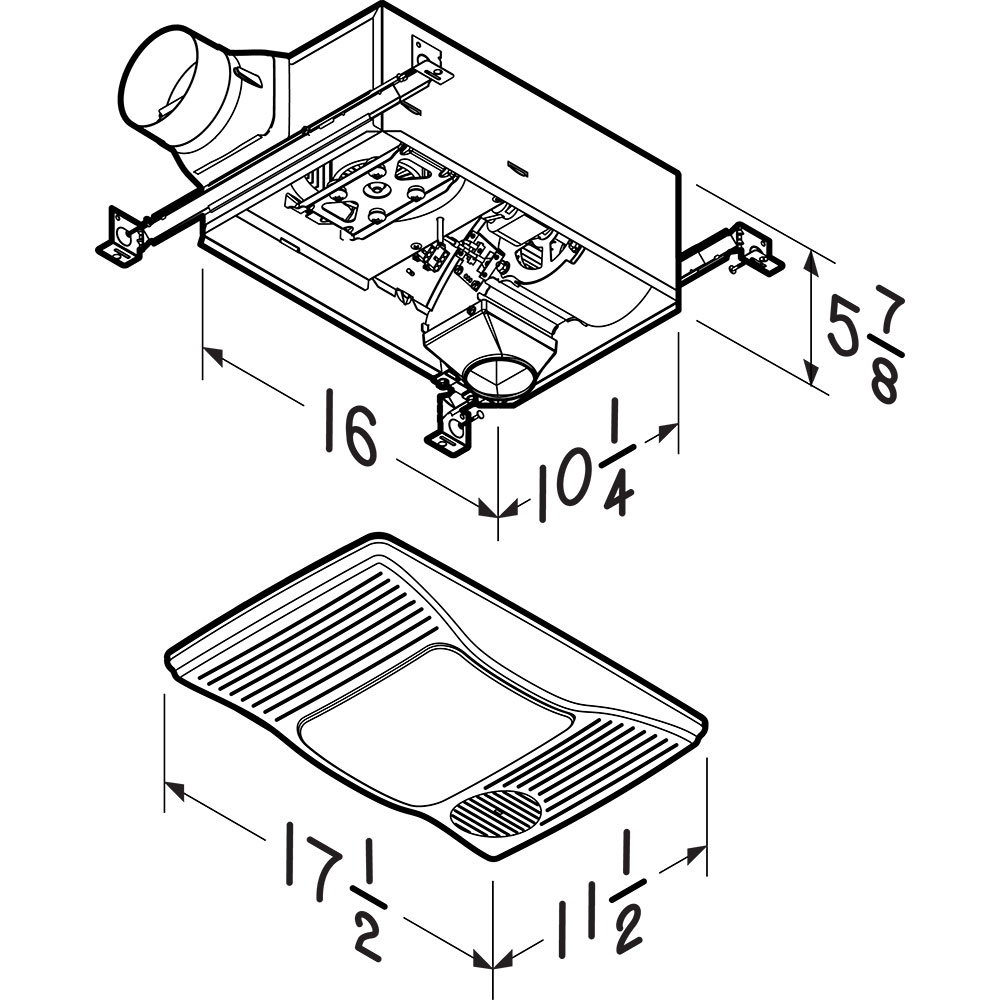

| Housing Dimensions | 16" x 10-1/4" x 5-7/8" |
| Sound Level (Sones) | 2 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
| Heater Wattage | 1500 |
| Recommended Room Size (Sq Ft) | 90 |
| Rated Amps | 14 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | A19 |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
