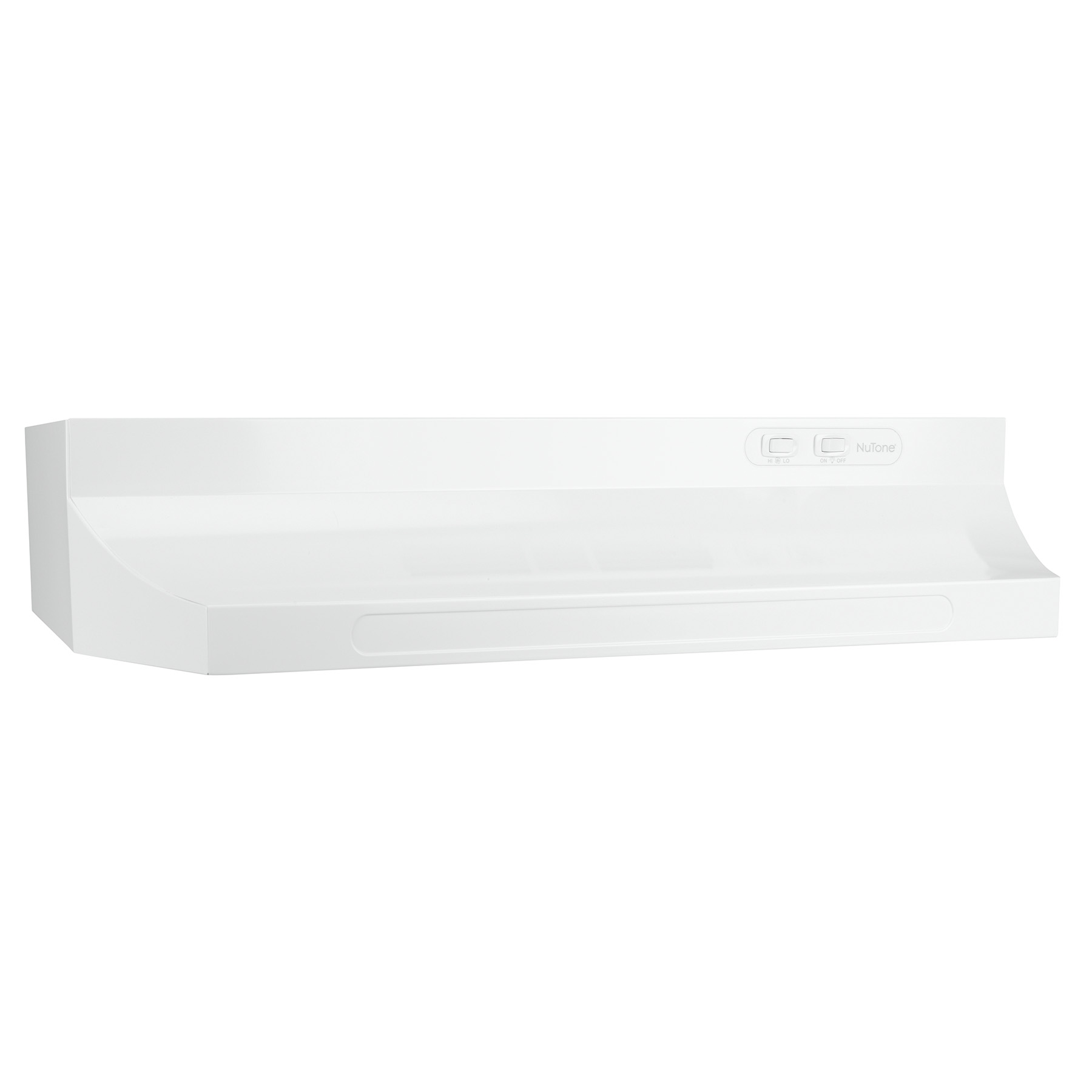

NuTone® RL6300 Series Under-Cabinet Range Hood
NuTone® 30-Inch Under-Cabinet Range Hood, White
Quality construction and ease of installation make the RL6300 the popular choice in vertically-ducted economy hoods. It has mitered sides and bottom hem for safety and good looks. It uses rocker-type switches for the fan and light. A damper can be purchased separately.
Color Finish
Product Width
Model:
RL6330WH
$89.00
retailer prices may vary
Features
HVI Certified
UL Listed
- 7 in. round vertical duct for installation ease

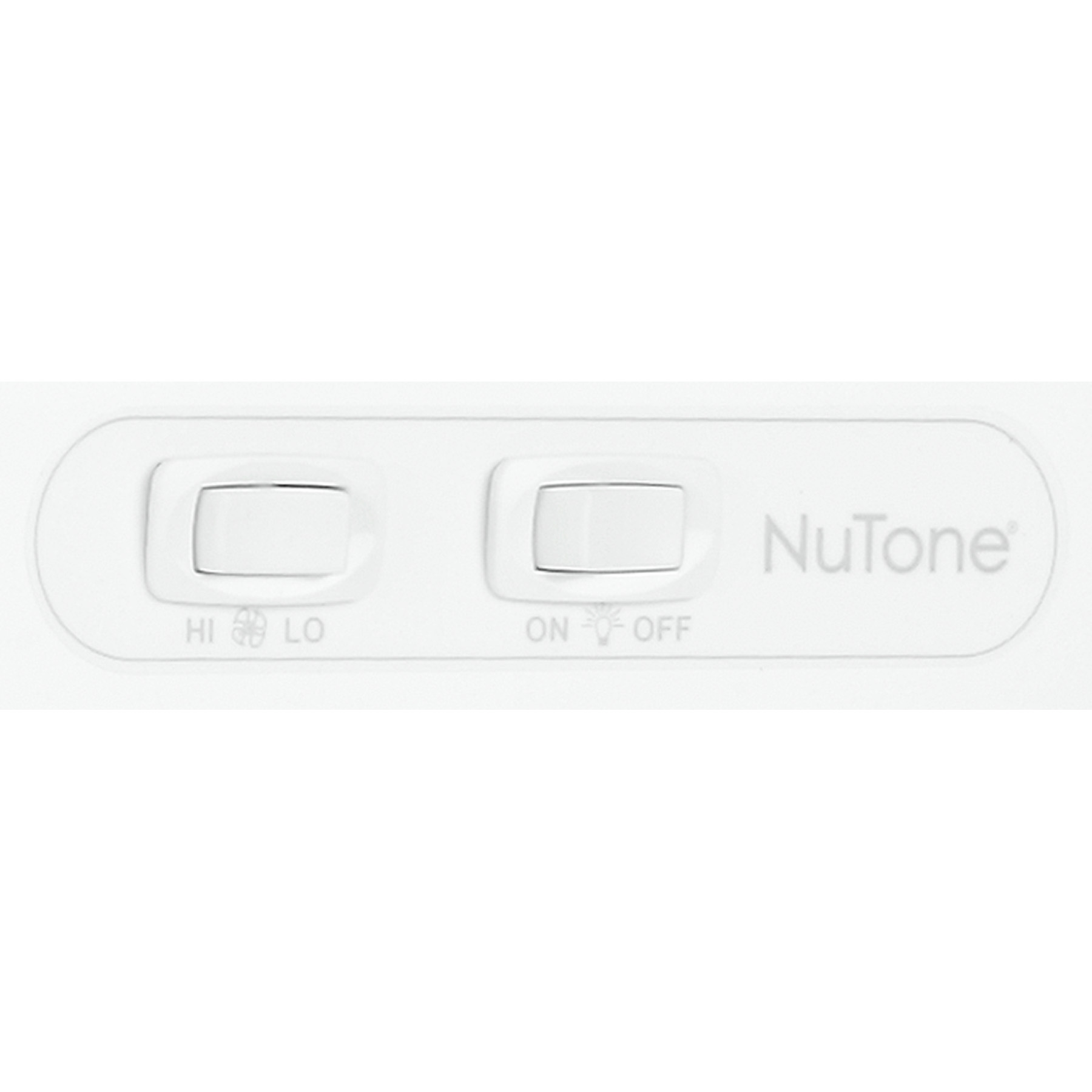

- 2 speed rocker fan control and separate light switch allows you to adjust the fan speed and the light setting
- 190 CFM blower to quickly pull smoke and cooking odors out of the air
- Dishwasher-safe aluminum grease filter for easy clean up
- Installs as 7 in. round vertically (top) ducted only for simple installation
- Separate light switch allows you to adjust the fan speed and the light setting Limited 1 year warranty for your protection
- Limited 1 year warranty for your protection
- Comparable to Broan Model 423001
- One year limited manufacturer's warranty
- Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
- Specs
- Downloads
| Filter Type | Aluminum Mesh |
|---|---|
| Heat Sentry™ | No |
| HVI Certified | Yes |
| Lighting Type | Incandescent |
| Sound Level (Sones) | 6 |
| UL Listed | Yes |
| ADA Compliance | Yes |
| Damper Included | No |
| ENERGY STAR® certified | No |
| Light Bulb Wattage | 75 |
| Light Bulbs Included | No |
| Light Levels | 1 |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | Yes |
| Remote Operation Capable | No |
| Speed Levels | 2 |
| Rated Voltage | 120 |
| Boost Mode | No |
| Color Finish |
|
| Rated Amps | 2 |
| Product Depth | 17.5 |
| Product Height | 6" |
| Product Width | 30" |
| Built-In Timer | No |
| Bulb (Recommended Type) | A19 |
| Manufacturer Warranty | 1 year |
| Wattage | 240 |
