NW3 Series

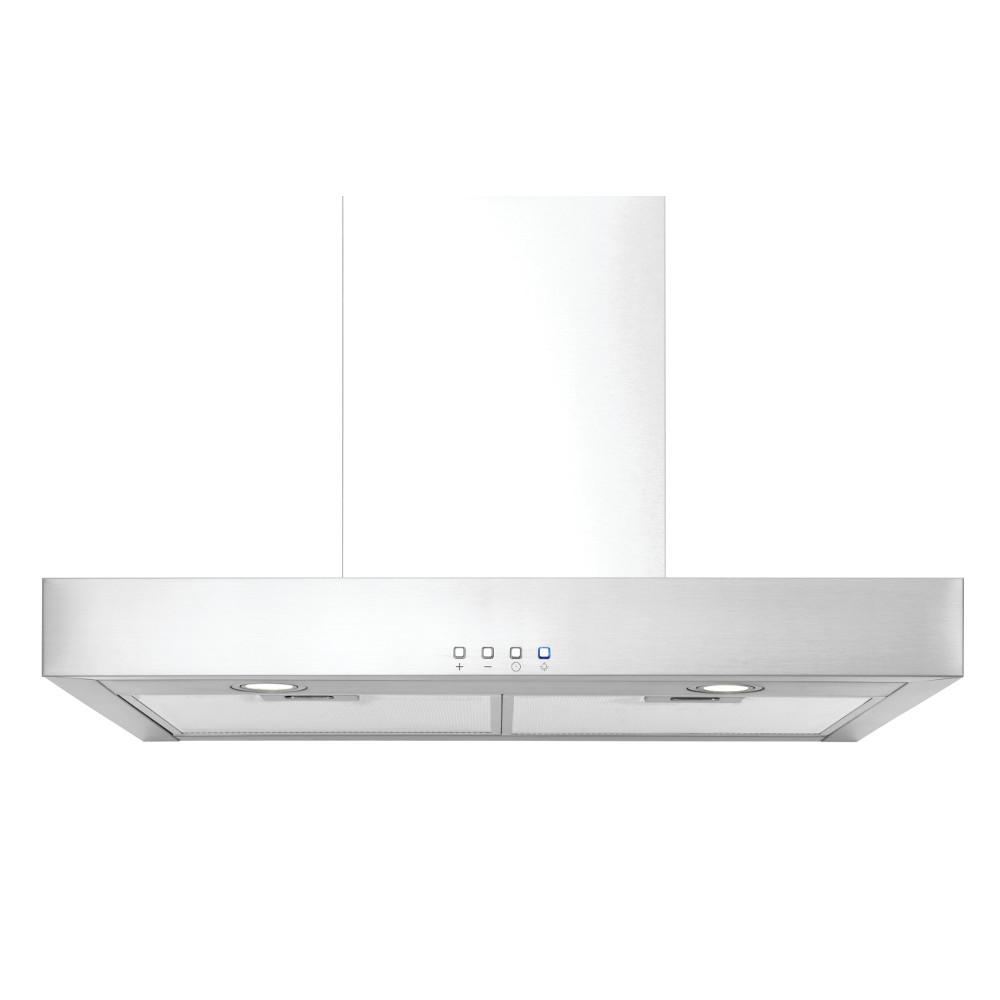

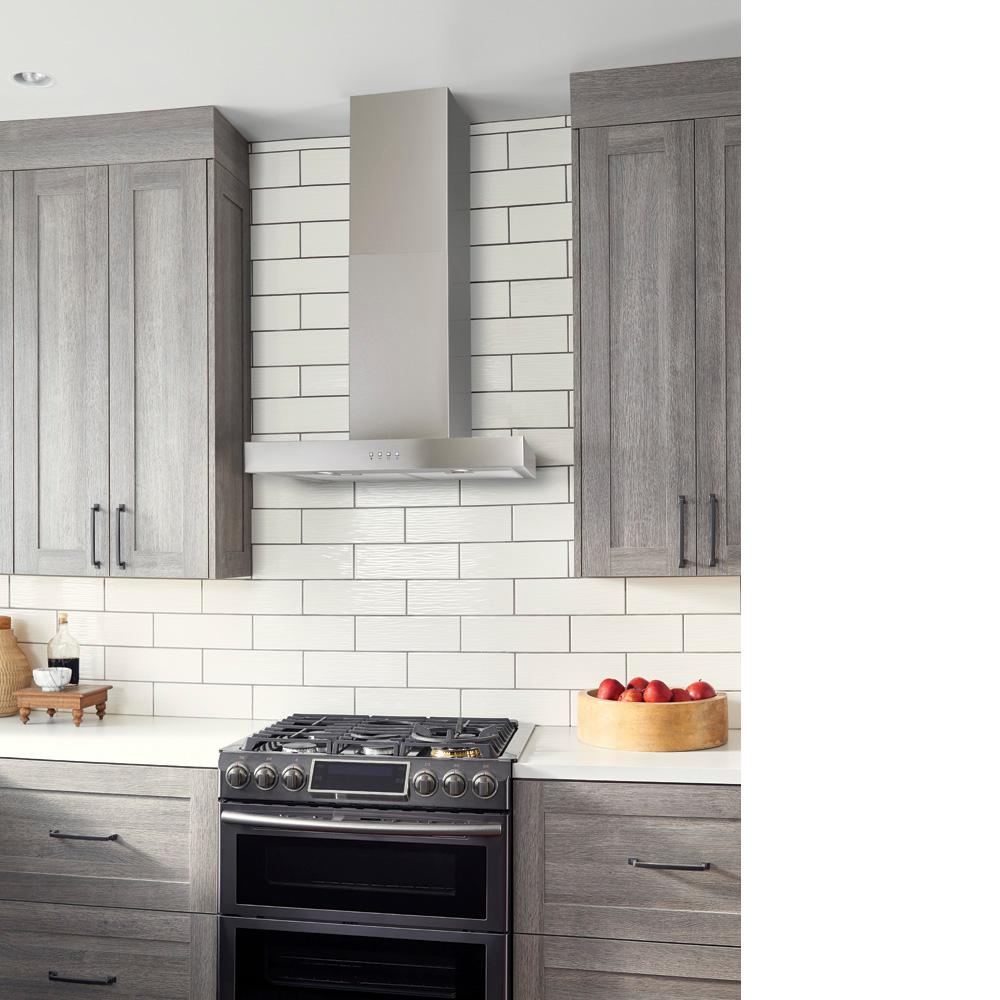

DISCONTINUED-NuTone® 30-In. Convertible Wall Mount T-Style Chimney Range Hood with LED Light in Stainless Steel
Product Discontinued
Model:
NW330SS
Features
- Product is DISCONTINUED. Suggested Replacement is model BWT2304SS
- Powerful 450 CFM, HVI Certified, provides good capture over your cooktop.
- Two speed control provide quiet (2.5 sones) normal speed operation
- 19.5” deep design provides 30% more coverage than standard OTR.
- 2-Way vent convertibility allows unit to be installed as ducted or non-ducted.
- Integrated LED modules are specially designed for cooking environments.
- Up-front controls: Provide convenient access and operation of hood.
- Install hood so that the bottom of the unit is 26 to 30 inches above the cooking surface. Mounting height is affected by ceiling height
- Specs
- Downloads
| Filter Type | Aluminum Mesh |
|---|---|
| Heat Sentry™ | No |
| HVI Certified | Yes |
| Lighting Type | LED |
| Sound Level (Sones) | 2.5 |
| UL Listed | Yes |
| ADA Compliance | No |
| Damper Included | Yes |
| ENERGY STAR® certified | No |
| Light Bulb Wattage | 3 |
| Light Bulbs Included | Yes |
| Material | Steel |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Switch Control Type | Push Button |
| Rated Voltage | 120 |
| Boost Mode | No |
| Country of Origin | China |
| Color Finish |
|
| Rated Amps | 3.3 |
| Product Depth | 19.75 |
| Product Height | 18.875" |
| Product Width | 30" |
| Built-In Timer | No |
| CFM | 450 |
| Diameter | 6" Round |
| Vent Type | Ducted & Non-Ducted |
| Duct Direction | Vertical |
| Bulb (Recommended Type) | Integrated LED Module |
| Manufacturer Warranty | 1 Year |
| Wattage | 396 |
