Product Discontinued

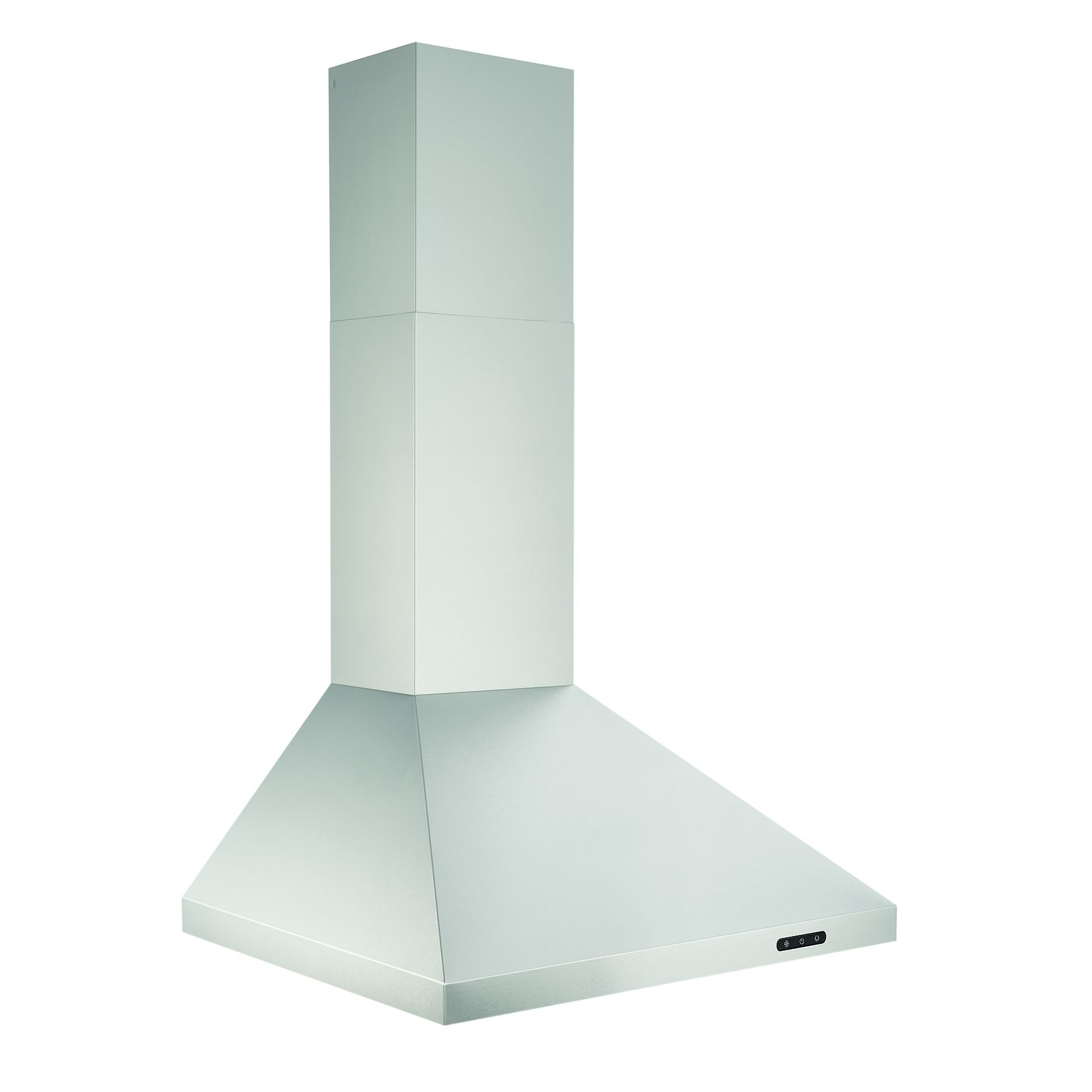

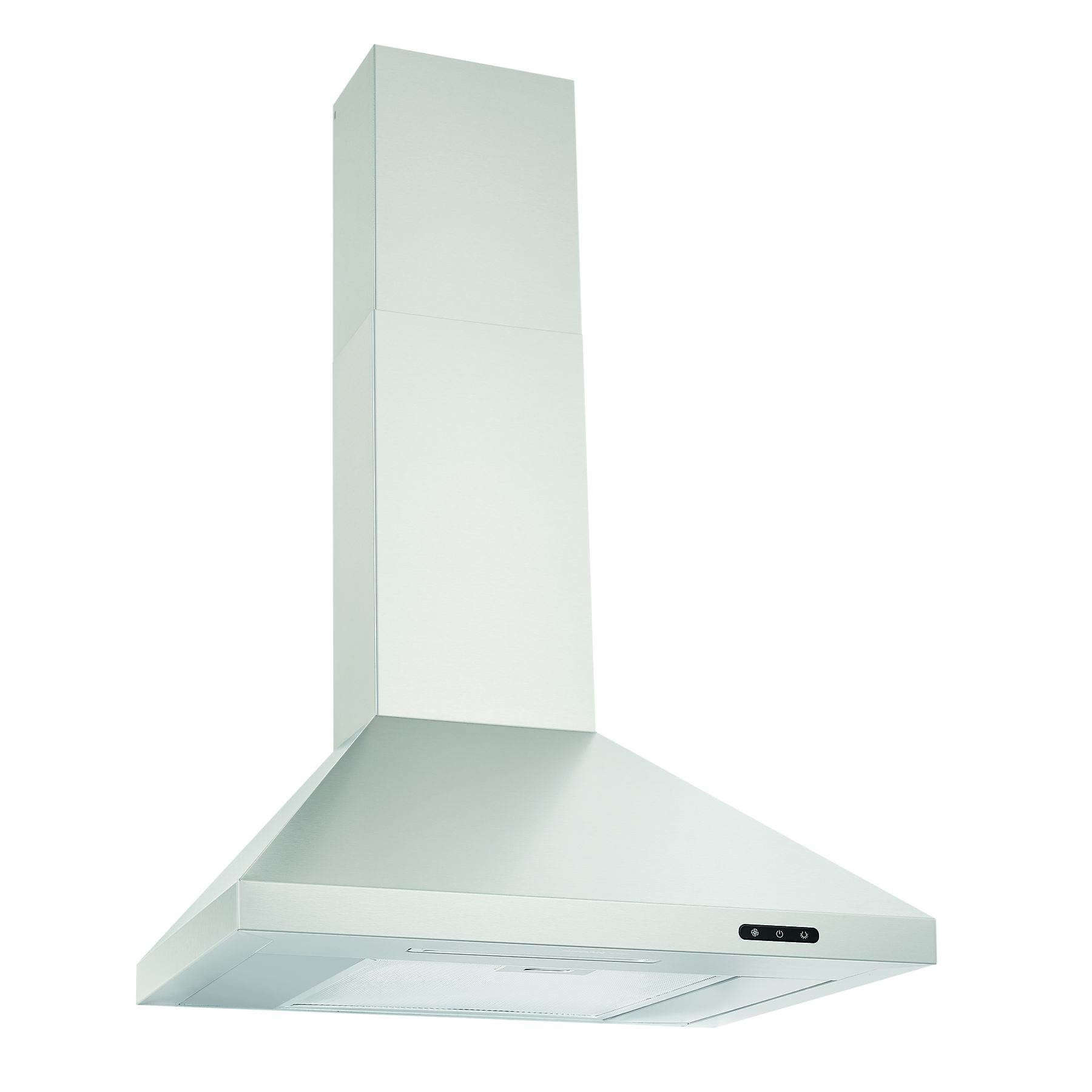

Broan® Elite EW48 Series Chimney Range Hood
**DISCONTINUED** Broan® Elite EW48 Series 24-Inch Pyramidal Chimney Range Hood, 460 Max Blower CFM, Stainless Steel
Model:
EW4824SS
Features
- Quiet 460 Max Blower CFM operates at a best in class 7.5 sones on high and 1.5 sones at normal speed, HVI certified
- Tap-touch, three-speed capacitive control features a smooth, easy-to-clean surface
- Bright 2-level LED module included
- CRT provides the ability to meet codes and reduce airflow to 300 CFM
- 10 minute delay-off function keeps hood running after cooking to ensure smoke and odors have cleared the environment

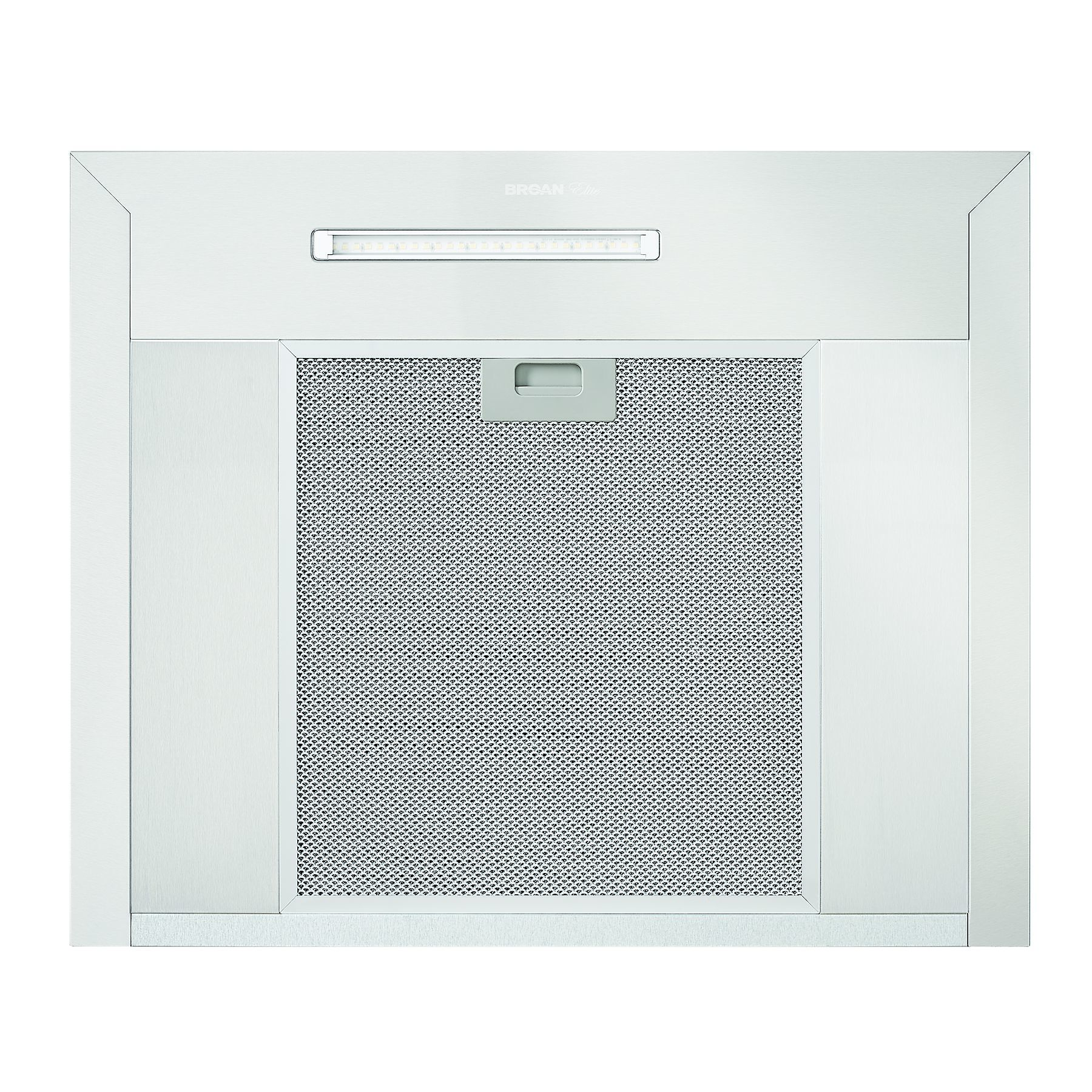

- Dishwasher-safe deluxe filters feature quick-release latch for easy removal
- Optional non-duct kit, filter included, available for indoor exhaust recirculation (Model ARKEW48, purchase separately). Non-duct replacement filters are sold separately (S99010473)
- Install the hood so that the bottom of the unit is 24" to 30" above the cooking surface, mounting height may be affect by ceiling height
- Specs
- Downloads
| Filter Type | Aluminum |
|---|---|
| Heat Sentry™ | No |
| HVI Certified | Yes |
| Lighting Type | LED |
| Sound Level (Sones) | 1.5 |
| UL Listed | Yes |
| ADA Compliance | No |
| Damper Included | Yes |
| ENERGY STAR® certified | No |
| Light Bulb Wattage | 7 |
| Light Bulbs Included | Yes |
| Light Levels | 2 |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Switch Control Type | Capacitive Touch |
| Rated Voltage | 120 |
| Boost Mode | No |
| Color Finish |
|
| Rated Amps | 1.53 |
| Product Depth | 19.75 |
| Product Height | 26.625 |
| Product Width | 24" |
| Built-In Timer | No |
| CFM | 460 Max |
| Diameter | 6" Round |
| Vent Type | Ducted & Non-Ducted |
| Duct Direction | Vertical |
| Bulb (Recommended Type) | Integrated LED Module |
| Light Color Temp | 3000 |
| Manufacturer Warranty | 1 Year |
